Sheep Feed Pellet Production Line
Sheep Feed Pellet Production Line

Sheep Feed Pellet Production Line

Richi customized sheep feed pellet processing line has realized automatic manufacturing and traceable production process through its advanced equipment and controlling technology.

Type:
Sheep, goats, Alpaca,Black sheep,etc.
Finished Pellet:
Sheep:4-12mm pellet
goats:4-12mm pellet
Alpaca:4-12mm pellet
Black sheep:2-8mm pellet
Main Materials:
Corn,wheat bran,soyban meal,Yeast powder for feed,Alfalfa powder,Hay,Skim milk powder,Calcium Phosphate,Salt,etc.
Capacity:
1-72T/H
Customized For You

Complete Sheep Feed Pellet Production Line Processing Flow

Our solutions come in a modular design so you can customize them to match your production process. At RICHI we focus on solutions that pay off, whether it's supplying the smallest spare part or serving as a long term partner. Complete Sheep Feed Pellet Production Line includes the following equipments, from the storage of raw materials to the packaging of the final pellets. Each section has professional equipment to work. Of course, according to the different needs, it may be the particularity of the raw materials or the limitations of the site. Our engineers will redesign the process, and the equipment used will be increased or decreased. Click each module below, you will see the specific equipment information.

Raw material preparation
1
Raw material preparation
X
Raw Material Preparation

The conventional raw material of sheep feed includes corn, wheat, barley, oats, sorghum, soybeans, soybean meal, fish meal, amino acids, mixed meals, whey powder, oil, meat and bone meal, grain, feed additives and so on more than 10 varieties of feed raw materials.

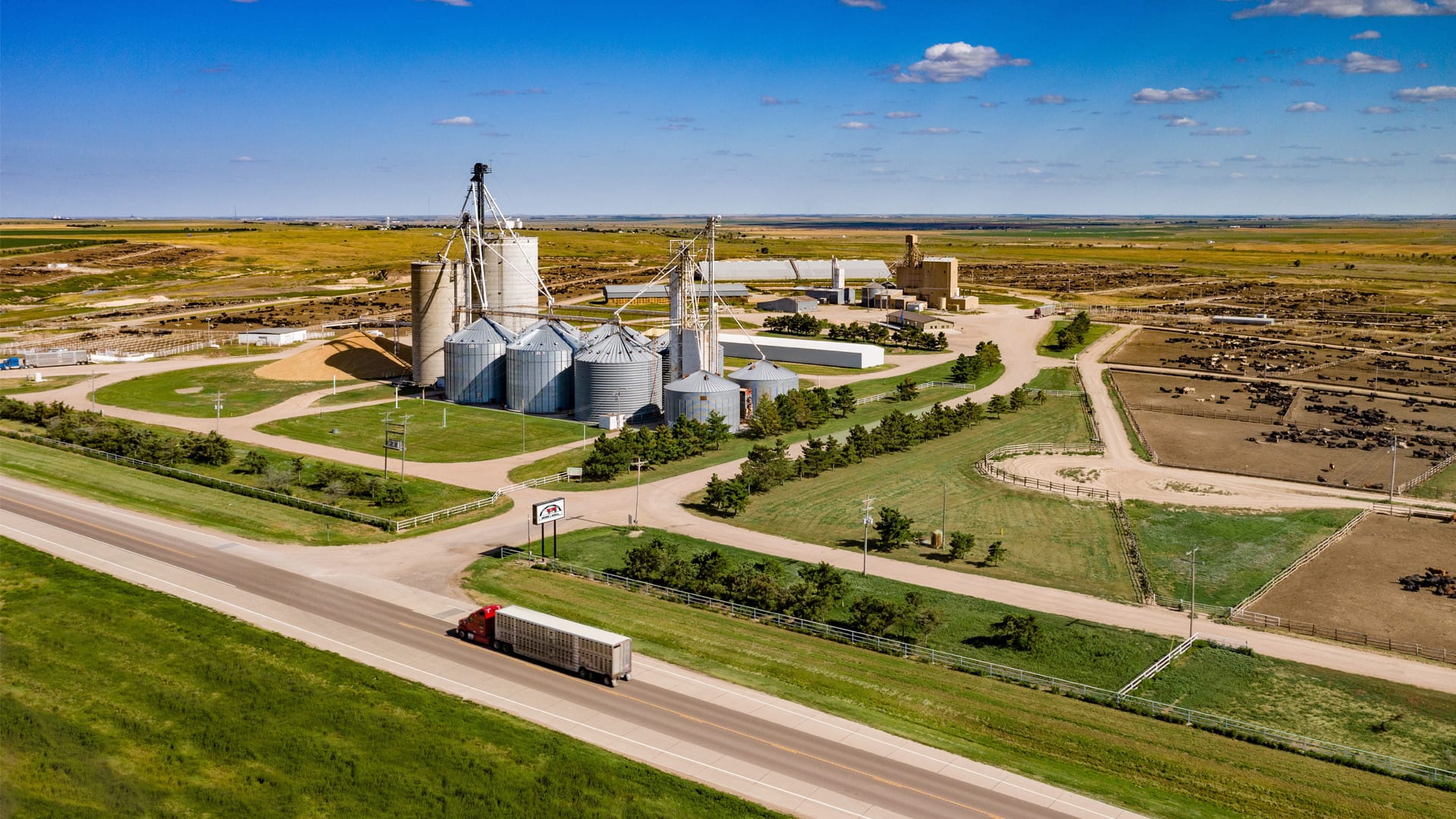

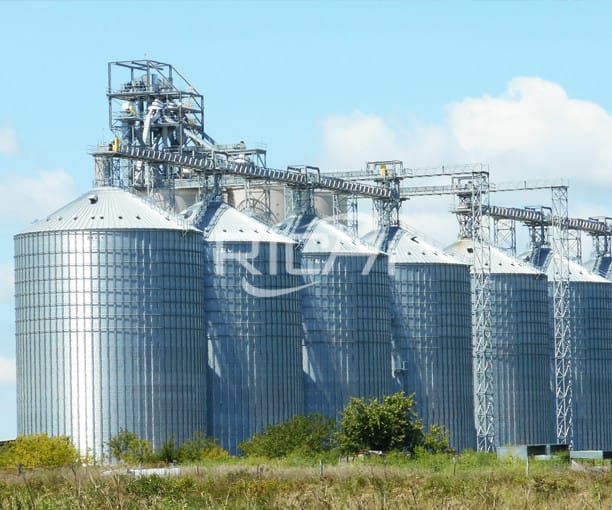

Silo System
2
Silo System
Raw Material Storage

The feed raw materials of the pig feed are dispersed, and various forms of silos must be used.Silo system is mainly used for storage of corn, wheat, soya and other raw grain, port of raw grain dumping, grease industrial materials storage.For long-term storage, aeration and cooling can be added.Generally,steel silo can be divided into assembly type steel silo and screw type helix steel silo.

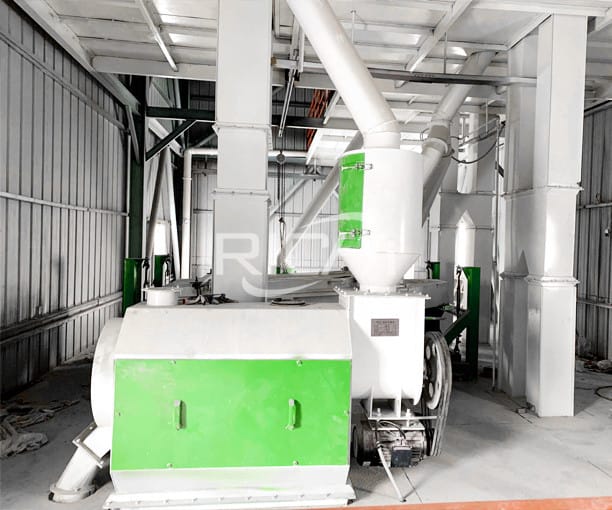

Cleaning System
3
Cleaning System
Raw Material Pre-cleaning

The impurities in the raw materials not only affect the quality of sheep feed products but also directly affect the sheep feed processing equipment and personal safety. In serious cases, the entire equipment can be damaged and affect the smooth progress of sheep feed production. The cleaning equipment of the sheep pellet feed plant is mainly screening and magnetic separation equipment. The screening equipment removes large and long debris such as stones, mud blocks, and sack pieces from the raw materials. The magnetic separation equipment mainly removes iron impurities.



FEED CLEANING MACHINE

MAGNETIC SEPARATOR

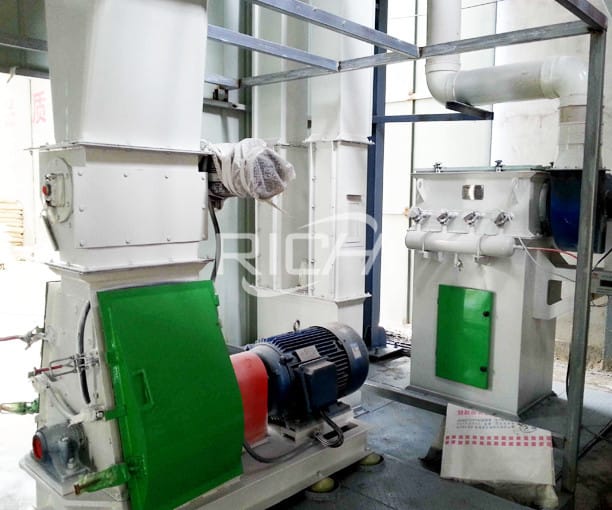

Crushing System
4
Crushing System
Raw Material Crushing

The usage of grinding system is increasing the specific surface area of feed which is good for animal digestion and absorption and improving the processing performance of raw materials.(Because sheep feed contains grass powder,you need to configure professional forage crusher mills.The fineness of the fine feed of sheep can be more than 2 mm, and the feed of old sheep can be crushed to within 1 mm to facilitate digestion.)



ANIMAL FEED CRUSHING MACHINE

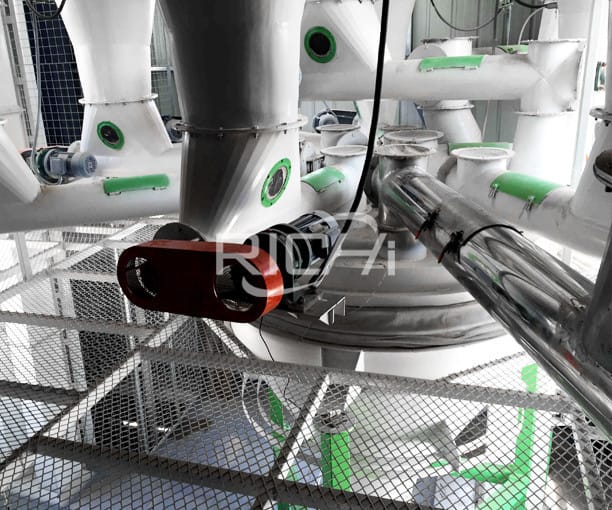

Batching System
5
Batching System
Precise Ingredients

After crushing,original sheep feed powder and some premix will be weighed in batching scale according to proportional,then go down to mixer machine to reach uniformity.



ROTARY DISTRIBUTOR

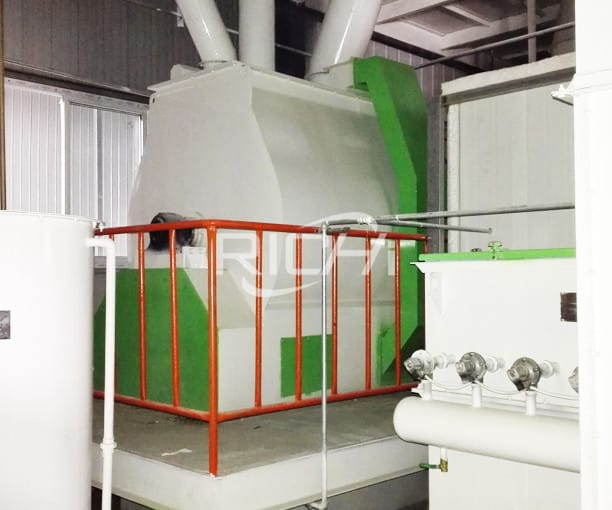

Mixing System
6
Mixing System
Raw Material Mixing

Mixing is considered to be one of the essential operations in feed pellet processing, using mixer to mix the grinded raw materials. There are three main types of our sheep feed mixing machine: single shaft mixer, double shaft paddle mixer and ribbon mixer. Both of them can be equipped with atomizing spraying system to add needed liquids, which can improve the feed pellet quality.Sheep feed contains grass,because the weight of grass is very light, it should be calculated according to the proportion of grass in the formula, and the appropriate mixer model should be selected.



ANIMAL FEED MIXING MACHINE

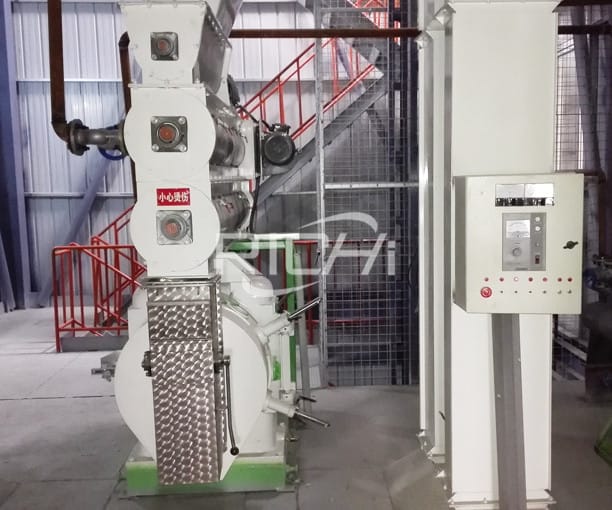

Pelletizing System
7
Pelletizing System
Press Raw Materials into Pellets

After using high temperature steam to make raw material curing, the materials will be made to pellet through sheep feed pellet milling machine. Animal feed pellet mill is the main equipment of the whole sheep feed pellet production line. You can according to the needs of yourself to customize conditioner to apply to the production of different materials or sheep object.Then the sheep feed pellet will be cooled down by feed cooling machine .(Because sheep feed contains grass powder, you need to configure a forced feeder for your sheep feed pellet making machine.)



SHEEP FEED PELLET MACHINE

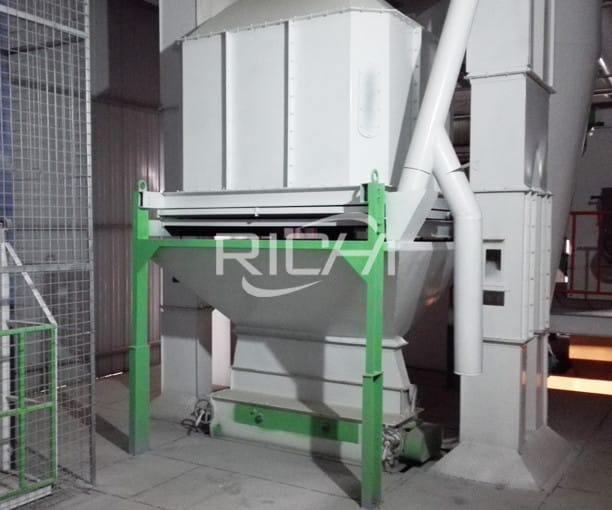

Cooling System
8
Cooling System
Pellet Cooling

After the pelletizing process,the temperature of the sheep feed pellet is about 80-90℃,with a moisture content of about 15%.A cooler must then be used to reduce the moisture content of the pellets to about 3/4%,thereby making the pellets easier to store.



PELLET COOLING MACHINE

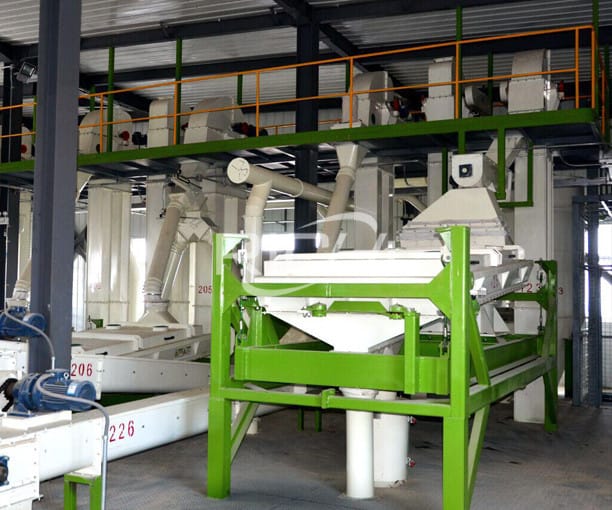

Screening System
9
Screening System
Separate Pellets and Powder to Meet End Needs

This section is for screening and classifying of mash or pellet feed.The sheep feed pellets are with different sizes, and there may be some powder. The screener can be used to screen and grade the sheep feed pellets. After processing, you can get the qualified sheep feed pellets without fine powder.



ROTARY SCREENER

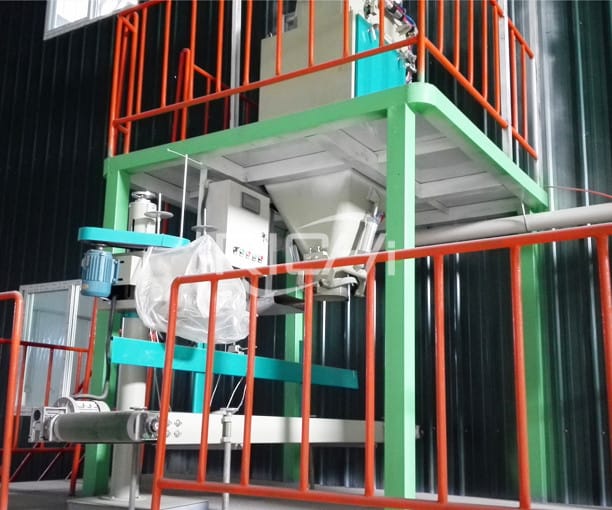

Packing System
10
Packing System
Finished Product Packaging

The powder and granules in the finished products bins which needs to be packaged will be packed by automatic packing machine, finished sheep feed pellets that do not need to be packaged will be taken away by bulk truck.(It can be manual or automatic bagging depends on requirement.)



AUTOMATIC PACKING MACHINE

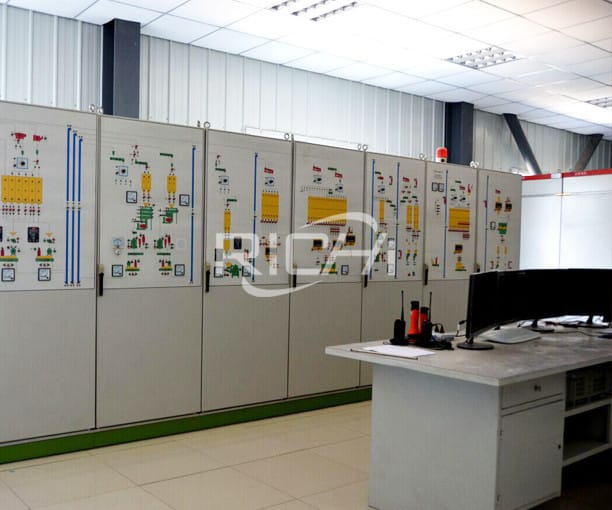

Electronic Control System
11
Electronic Control System
Fully Automatic Control

PLC is designed according to the requirement of the customer. It can also control automation level.Our PLC is provided by the top international brands in the industrial automation field such as Siemens, Schneider and Delta.

The 10T/H Automatic Chicken Feed Pellet Line

Case About this

Typical Animal Feed Pellet Line Turnkey Project

Name: The 10T/H Automatic Chicken Feed Pellet Line
Country: Uzbekistan
Pellet Size:2-6mm
Main Material: Corn, wheat, Soybean Meal, and other Grain
Total Power:358KW•H/T
Main Machines: Feed Hammer Mill*110kw;2. Batching Scale *1000kg/batch 3.Feed Mixer*1000kg/batch ;4.Feed Pellet Machine*110KW;5.Cooling Machine*SKLN20*20; 6.Crumbler Machine*SSLG15*150 ;7. Vibrating Sereen ;8. Packing System and other auxiliary equipment.

Project Summary

The field trial operation proves that the actual measured output of RICHI's 10t chicken feed production line is up to 13 tons, the operating current only accounts for 85% of the rated current of the motor, and each ton of feed can be 20kW•h less than the industry average power consumption. The output is calculated on the average yield of 11t/h (the initial design capacity is 10-12 tons), set to produce 8 months a year, 30 days per month, and 10 hours per day.Compared with common chicken feed production lines of the same grade in the industry,this line can save 288,000 kWh of electricity,one yuan per kwh can ultimately save customers 28.8 million (calculated in RMB).

The 10T/H Automatic Chicken Feed Pellet Line Layout
10T/H Cattle Feed Pellet Production Line

Case About this

Typical Animal Feed Pellet Line Turnkey Project

Name: 10T/H Cattle Feed Pellet Production Line
Country: South Africa
Pellet Size:1-12mm
Main Material: corn, soybean meal, 50% grass and other grain
Total Power:335KW
Main Machines: Feed Hammer Mill*110KW, Feed Mixer*1000KG/BATCH, Batching Scale*1000KG/BATCH, Feed Pellet Machine*110KW,Pellet Cooling Machine*SKLH20*20, Crumbler Machine*SSLG15*150, Screen Machine, Automatic Packing Machine, Coal-fired Boiler*0.7MPA, etc.

Project Summary

This project is currently the most advanced ruminant feed production line in the customer's local area. The project is fully computer-controlled and replaces the customer's previous manual packaging, manual handling, manual baching, and manual operations, allowing customers to experience the efficiency, energy saving, and safety of automated feed production. At the same time, the project uses a first-class process plan, the rumination process uses the most advanced production equipment in South Africa, which greatly improves the production efficiency of customers and creates economic value for customers.

10T/H Cattle Feed Pellet Production Line Layout
5T/H Extruded Shrimp Feed Pellet Production Line in Henan

Case About this

Typical Animal Feed Pellet Line Turnkey Project

Name: 5T/H Extruded Shrimp Feed Pellet Production Line in Henan
Country: China
Pellet Size:0.6-4mm
Main Material: fishmeal,homemade fishmeal, alcohol master batch, soybean phosphatide, soybean meal, peanut meal, etc
Total Power:235KW
Main Machines: Fish Feed Grinder, Feed Ultra-fine Pulverizer, Feed Mixing Machine, Pellet Crumbler, Automatic Batching System, Fish Feed Extruder Machine, Feed Pellet Cooler, Screen Machine, Automatic Packing Machine, Natural Gas Boiler, etc.

Project Summary

The extruded aquatic project is the largest local aquatic project of the client. Its successful operation not only brings great changes to local farmers, but also lays a stable foundation for the long-term development of RICHI. The use of differentiated process equipment for this expanded aquatic project will greatly improve feed quality and profitability; at the same time, the introduction of automation and intelligent equipment will also greatly reduce labor costs, help customers improve efficiency, and reduce feed plant operating costs . During the construction process, not only advanced technology is introduced into the local area, but also resource and energy utilization are considered, so that the project saves electricity and steam.

5T/H Extruded Shrimp Feed Pellet Production Line in Henan Layout
customer finalized the cooperation with RICHI
On March 15, 2020, After many rounds of technical negotiation and production line planning, the customer finalized the cooperation with RICHI;
on-site survey to equipment selection
According to the actual situation of the customer, from on-site survey to equipment selection, to installation and commissioning, RICHI provides an customized solution.
RICHI equipment
RICHI has always been upholding the spirit of craftsman at the stages of machine process, our strict requirements on quality are ultimately aimed at the long-term and trouble-free operation of the equipment to create maximum benefits for customers;
RICHI hammer mill
After the quality test before delivery,the 12t/h production line equipments are officially shipped through professional packaging and modular transportation solutions;
Turnkey Service Review
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
RICHI dispatched 2 professional technicians to assist the construction of the site infrastructure, equipment installation and commissioning, and trial operation of the entire production line;
After 40 days of installation, the project was completed successfully, then we provided the customer with the factory certificate, inspection report and other documents.
RICHI will continue to provide a series of after-sales services such as one-year warranty, maintenance and accessories, and quickly responds to customer feedback during project operation.
April 3, 2017, South Africa customers came to RICHI Machinery, they visited the workshop and gave a high evaluation of product quality;
After fully understanding the actual situation of the customer site, after careful discussion with customer, the design of 10T cattle feed line was determined.
RICHI has always been upholding the spirit of craftsman at the stages of machine process, our strict requirements on quality are ultimately aimed at the long-term and trouble-free operation of the equipment to create maximum benefits for customers;
After the quality test before delivery,the 10t/h production line equipments are officially shipped through professional packaging and modular transportation solutions;
Turnkey Service Review
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
RICHI dispatched 2 professional technicians to guide the construction of the site infrastructure, equipment installation and commissioning,and trial operation of the entire production line;
RICHI strictly controls production line assembly and commissioning to meet customer needs. After 60 days of installation, the project is successfully delivered to customers.
RICHI will continue to provide a series of after-sales services such as one-year warranty, maintenance and accessories, and quickly responds to customer feedback during project operation.
This is a tender project.RICHI Machinery won the bid in August 2015, and officially signed a project contract with the customer that month.
According to the actual situation of the customer, from on-site survey to equipment selection, to installation and commissioning,RICHI provides an customized solution.
RICHI has always been upholding the spirit of craftsman at the stages of machine process,our strict requirements on quality are ultimately aimed at the long-term and trouble-free operation of the equipment to create maximum benefits for customers;
After the quality test before delivery,the 12t/h production line equipments are officially shipped through professional packaging and modular transportation solutions;
Turnkey Service Review
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
RICHI selected an excellent work team to ensure that the customer project is put into production as early as possible.
The project took 60 days to install.After all the project indicators have reached the design standard, the customer has issued the project acceptance documents.
RICHI will continue to provide a series of after-sales services such as one-year warranty, maintenance and accessories, and quickly responds to customer feedback during project operation.
Sheep Feed Formula

Corn 32.4%
wheat bran 10%
Soybean meal 10%
Sunflower cake 8%
Salt 1%
Barley 14.5%
Oat 14%
......
