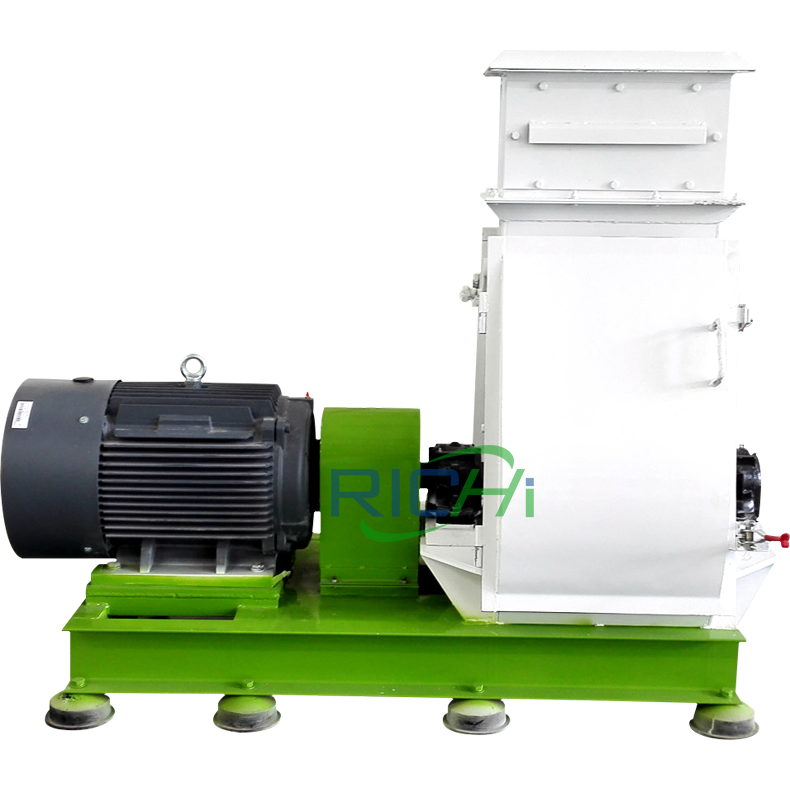

SFSP Animal Feed Crushing Machine

SFSP Animal Feed Crushing Machine

The animal feed crushing machine adopts hammer blade design, which can be used to crush common feed materials, such as corn, wheat or soybean, etc. Because of the high output, it is usually used for crushing operations in large farms or feed processing plants. It can be used alone, but it is generally installed in a pellet feed processing plant and used in conjunction with other feed machinery (feed mixer, feed pellet machine).

Mode:
SFSP56*40b

Capacity:
4-6TPH

Main Power:
37KW

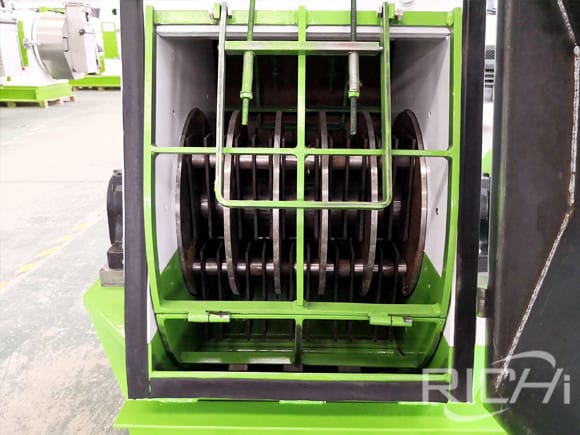

The raw materials are fed from the top of the animal feed crushing machine. Under the action of high-speed rotary hammer and the friction of the sieve plate, the raw materials are gradually crushed, and under the action of centrifugal force, they pass through the sieve holes and are discharged from the outlet of the crushing machine base.

Technical Features

sieve of animal feed crushing machine
Higher Portability

Users can replace accessories such as hammers and screens independently. Reduce maintenance time.

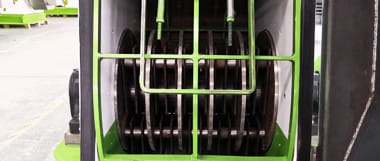

hammer of animal feed crushing machine
Hard and Wear-resistant Hammer

Made of high-standard 65mn steel, the hardness is increased after quenching. Tungsten carbide is used at both corners of the hammer head to improve wear resistance.

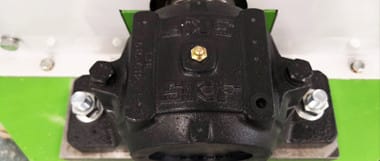

animal feed crushing machine bearing
Longer Service life

Rotor, passed the high-precision dynamic equilibrium experiment, works in slight vibration, thus has a long operating life.

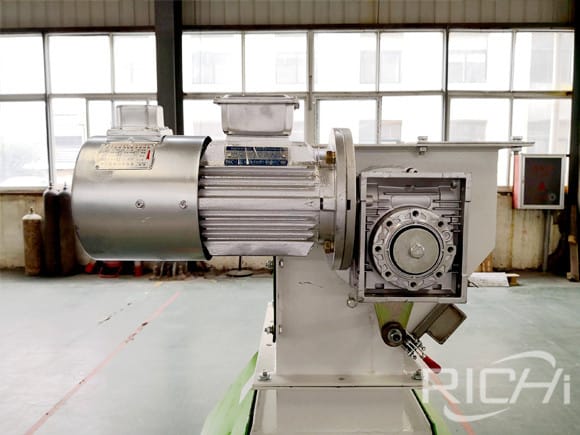

feeder of feed crushing machine
Precision Control

We use frequency conversion feeding system to strictly control the feeding time and fully guarantee the production efficiency.

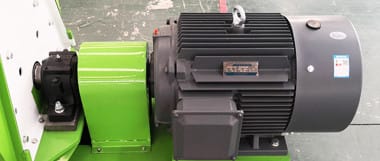

frequency conversion motor
Variable Frequency Motor

This feed crushing machine adopts two-level energy-efficient frequency conversion motor, the speed is faster, improve the grinding efficiency, shorten the grinding time.

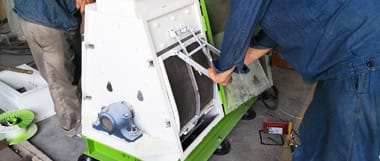

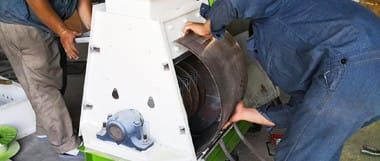

easy for users to maintain equipment
Easy to maintain

Increase the quick disassembly and assembly of screen device, easy for users to maintain equipment.

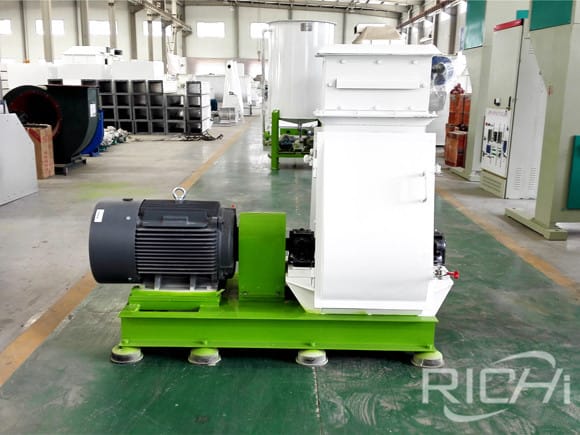

Product Display

The quality and know how inherent in animal feed crushing machines are backed by over 25 years’ experience in the pelletizer solution and other related industries around the world. The requirements for crushing a large number of special products have led to the development of feed crushing machine that can be adapted to almost any application, regardless of whether coarse or fine grinding is required, e.g. raw materials for the production of animal feed, fish feed, pet food, etc.

→ Please contact us if you are interested
  • SFSP Animal Feed Crushing Machine
  • SFSP Animal Feed Crushing Machine
  • SFSP Animal Feed Crushing Machine
  • SFSP Animal Feed Crushing Machine

Technical Parameters

Model SFSP56*40a SFSP56*40b SFSP66*60a SFSP66*60b SFSP66*80a SFSP66*80b SFSP66*100 SFSP138*30E SFSP138*40E
Power 30kw 37kw 55kw 75kw 90kw 110kw 132kw 110/132kw 132/160kw
Capacity 3-5T/H 4-6T/H 5-8T/H 6-9T/H 8-10T/H 10-13T/H 12-16T/H 15-20T/H 18-25T/H
Speed 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 1440r/min 1440r/min
