Palm Shell Pellet Production Line
Palm Shell Pellet Production Line

Palm Shell Pellet Production Line

Palm shell is the remainder of palm oil refining process.With the development of economy, many factories that require fuel choose palm husk instead of wood waste as biofuel in order to reduce the investment cost of the bottom.

Finished Pellet:
6-12mm
Raw material type:
Palm kernel shell, PKS ,hemp palm,windmill palm,Trachycarpus fortunei,palm fiber,oil palm EFB,empty fruit bunches,etc.
Functions:

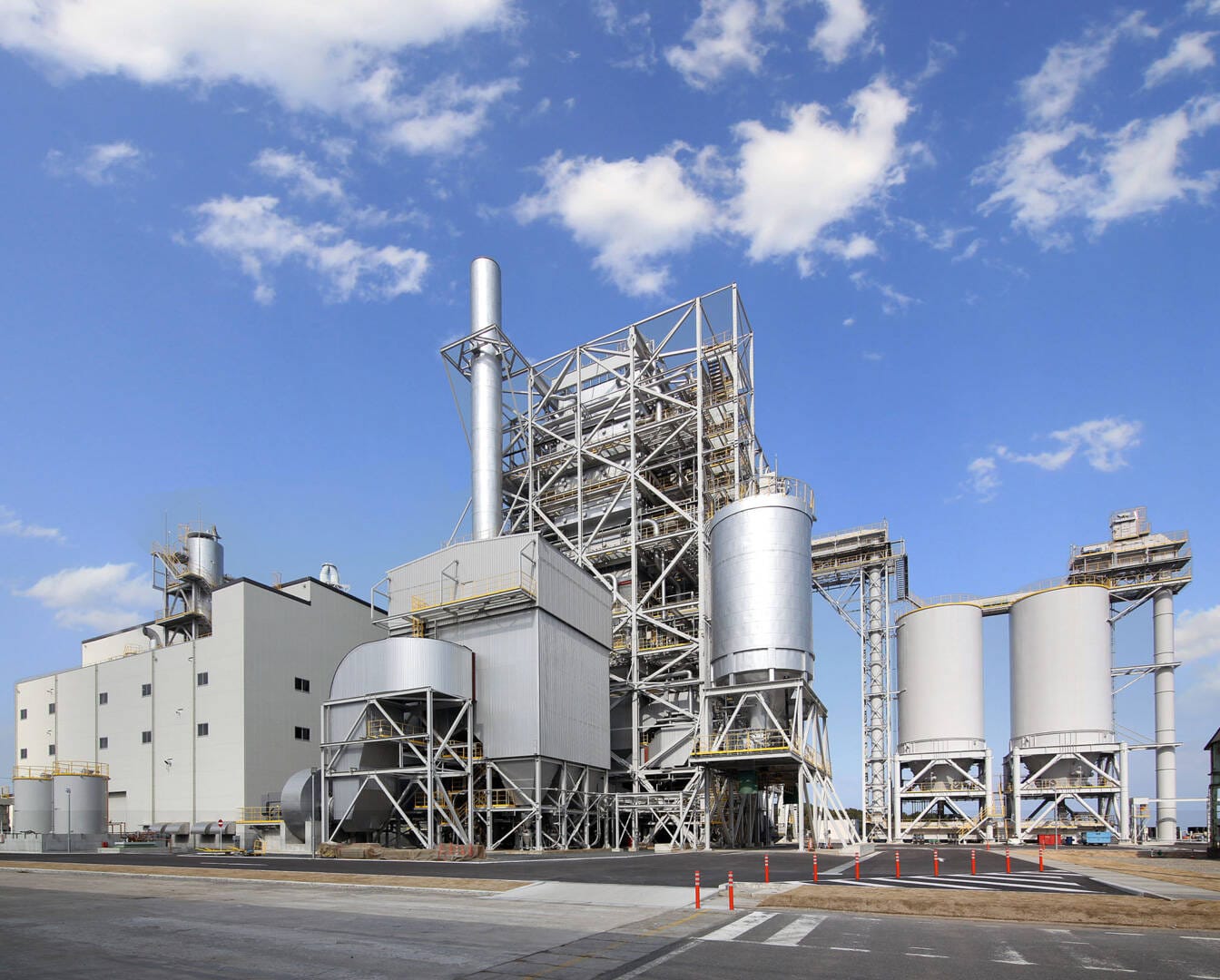

1.Large-scale power generation
2.Central heating
3.Boilers
4.Cooking
5.Home heating
6.Animal feed
7.Organic fertilizer
Capacity:
1-40T/H
Customized For You

Complete Palm Shell Pellet Production Line Processing Flow

Our solutions come in a modular design so you can customize them to match your production process. At RICHI we focus on solutions that pay off, whether it's supplying the smallest spare part or serving as a long term partner. Complete Palm Shell Pellet Production Line includes the following equipments, from the storage of raw materials to the packaging of the final pellets. Each section has professional equipment to work. Of course, according to the different needs, it may be the particularity of the raw materials or the limitations of the site. Our engineers will redesign the process, and the equipment used will be increased or decreased. Click each module below, you will see the specific equipment information.

Cleaning Section
1
Cleaning Section
X

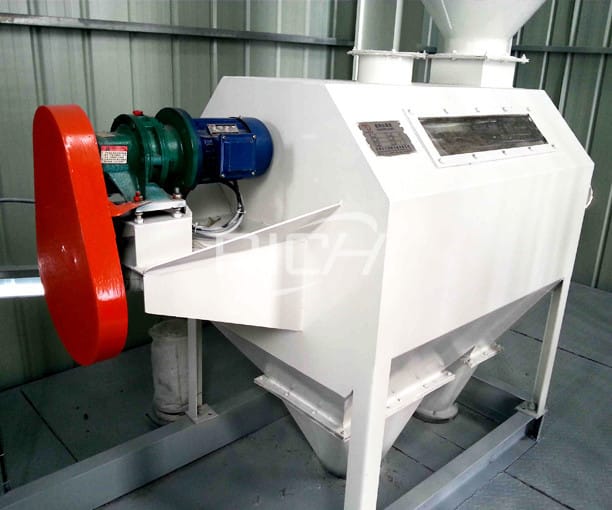

Raw Material Pre-cleaning

As the palm shells are mainly forest felled materials, woodland miscellaneous irrigation materials, etc., it is necessary to collect the raw materials at this stage and remove the large blocks and debris through the roller screen.

Grinding Section
2
Grinding Section

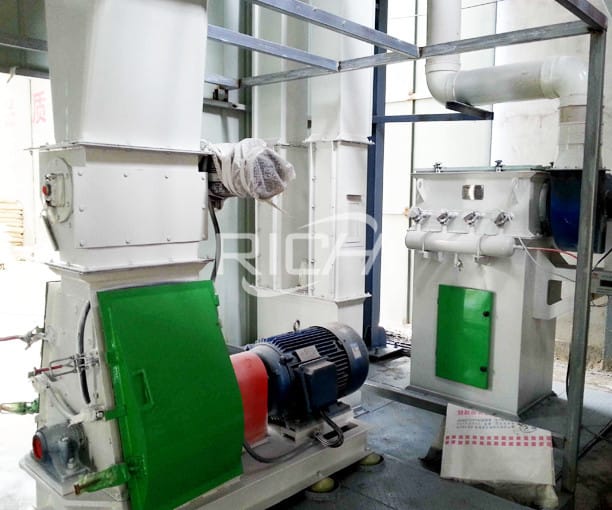

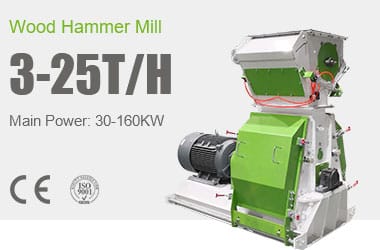

Raw Material Crushing

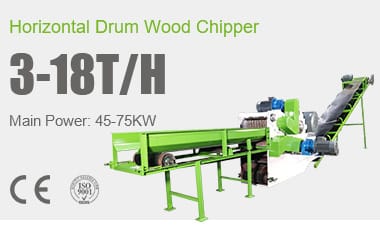

To grind the proper sized and dried materials into power for pelletizing.Only palm shell that meet the size requirements can be directly fed into the palm shell hammer mill, or those that have passed the chipper and coarse crushing and require further fine powder. Due to the wide range of screen sizes on the hammer mill, it can produce particles of various sizes, so it is the most common choice for palm shell pellet manufacturers.(If the raw material is palm fiber,oil palm EFB,empty fruit bunches, the crushing section needs a more complicated process to make the palm raw material meet the requirements of the biomass palm wood pellet mill)

Conveyor Section
3
Conveyor Section
Raw Material Transmission

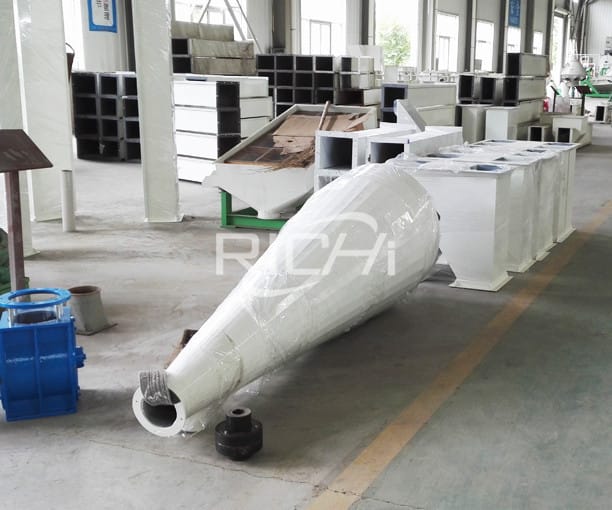

After crushing ,palm husk due to the existence of air circulation inside of hammer mill and can not drop down by gravity ,so we add a draught fan and cyclone with dust collector here, to provide the strong wind for breaking the circulation , in order to the final sawdust drop down and also keep the environment clean.

Drying Section
4
Drying Section

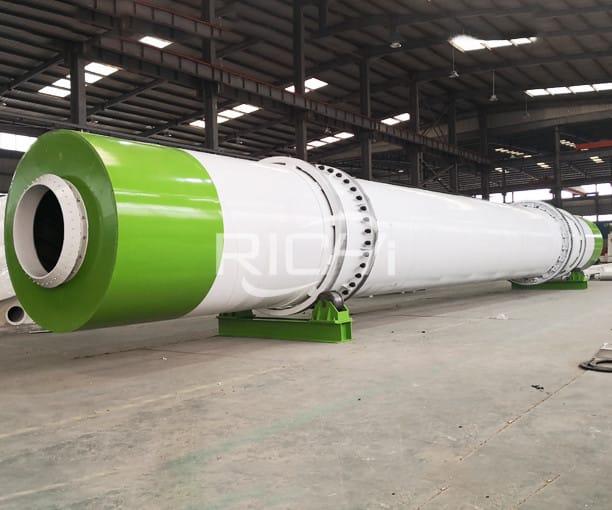

Raw Material Dying

For drying part, you can adjust the feeding speed, the rotating speed of the drying machine, and the inlet air temperature to adjust and to get the required moisture to make palm husk pellets. ( About how to adjust, our engineer will train your labors) Different capacity, and different capacity, the diameter and length of the drying machine is different.

Mixing Section
5
Mixing Section

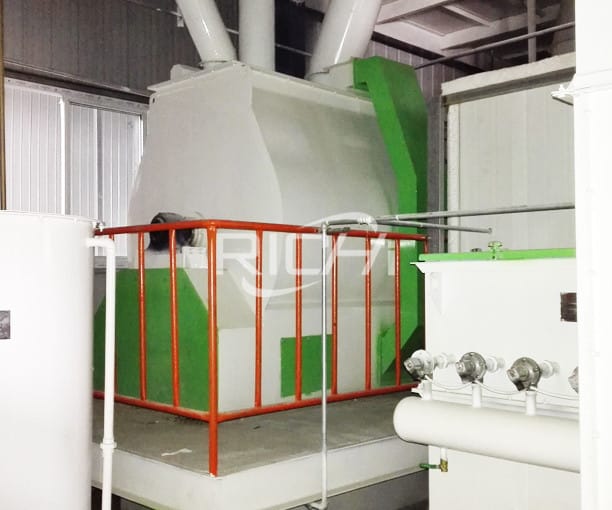

Raw Material Mixing

Whether producing single palm husk pellets or mixed pellets, maintaining the consistency of raw materials is very important for palm husk pellet production plants. After the palm husk are grinded and dried, binder(vegetable oil, molasses, starch, gluten, dried lees, rapeseed cake, etc.) need to be added,so it is necessary to use a palm husk mixing machine. After mixing, the raw materials are mixed more fully and evenly, and then sent to the pellet making machine.

This is an optional section, only a few customers who use special processes will choose. If your raw materials contain enough natural lignin to be glued together,you do not need additives and can completely ignore this section.

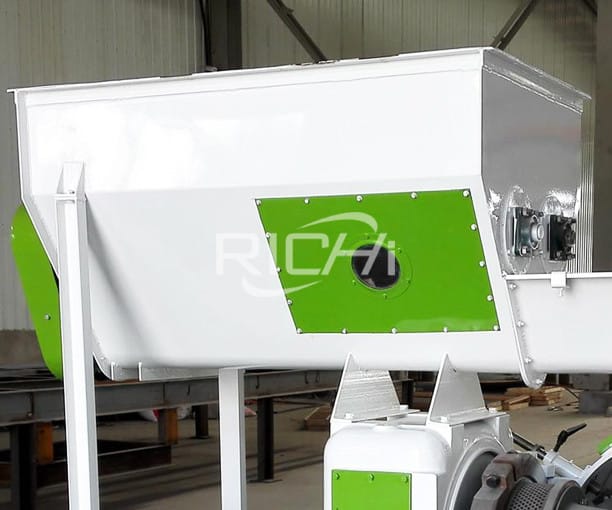

Pre-treatment Section
6
Pre-treatment Section
Pre-treatment for Top Pellets

After the palm husks are thoroughly mixed, water and steam need to be added to make the pellets. These additives can help improve the working efficiency of the palm husk pellet mill machine.

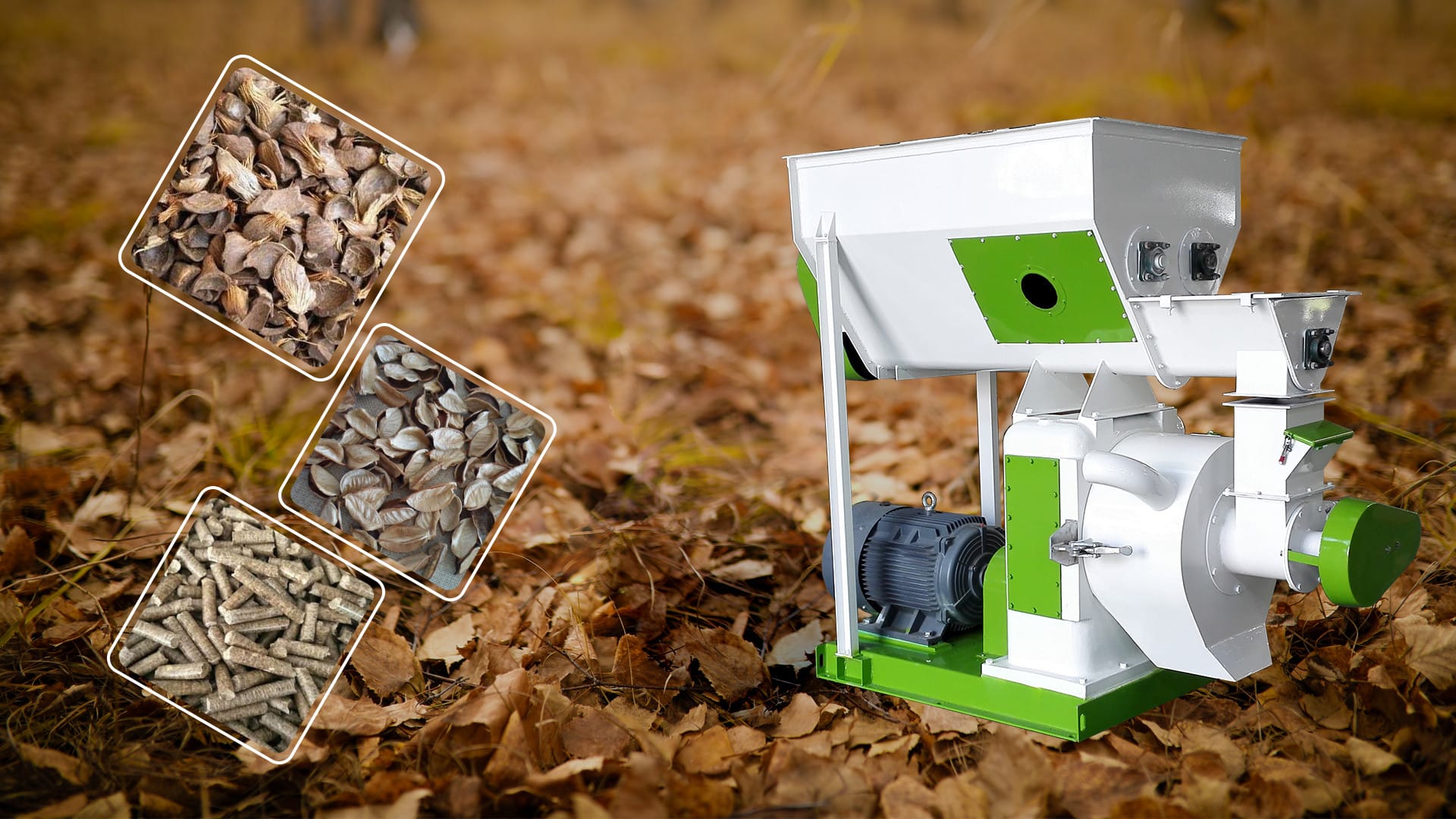

Pelletizing Section
7
Pelletizing Section

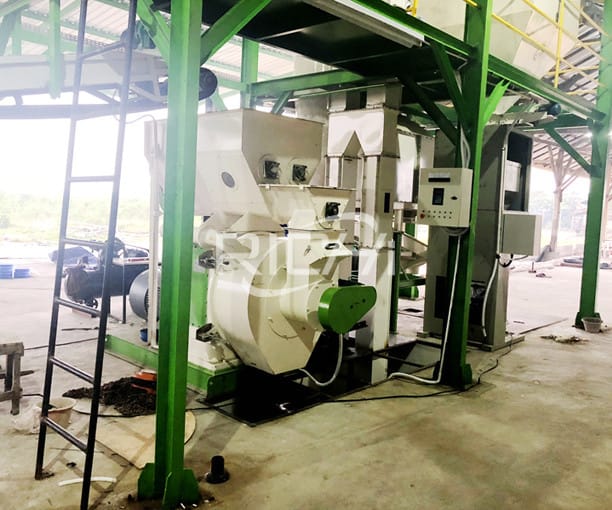

Press Raw Materials into Pellets

To pelletize the prepared materials into pellets.The palm husk pellet making machine is the heart of the palm fiber pellet production line. The palm pellet machine is widely used for pelletizing rice shell, straw and other biomass energy. The output ranges from 1 to 10 tons / hour. The biomass pellet machine adopts Swedish SKF bearings and Siemens motors, which can fully guarantee the palm shell pellet equipment capacity and stable operation.

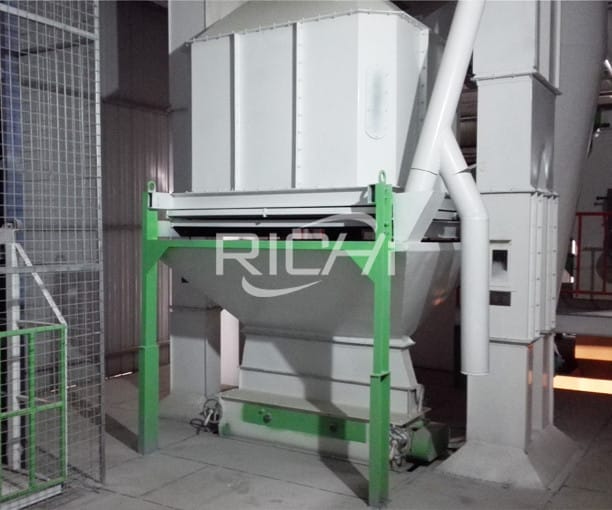

Cooling Section
8
Cooling Section

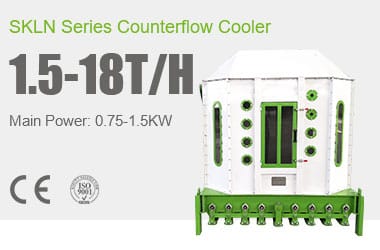

Pellet Cooling

To cool down the newly extruded hot pellets and hard the palm husk pellets.The temperature of the biomass palm shell pellets after granulation is as high as 80-98 degrees, the structure is relatively loose, and it is easy to break. It must pass through a counter-flow cooling system and be cooled to room temperature before entering the warehouse.



Screening section
9
Screening section

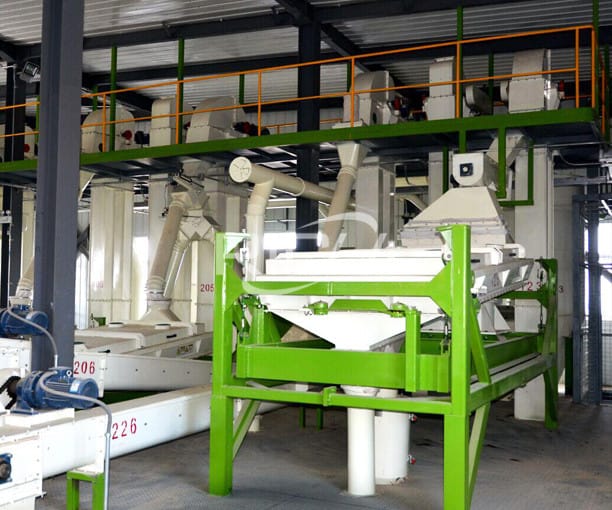

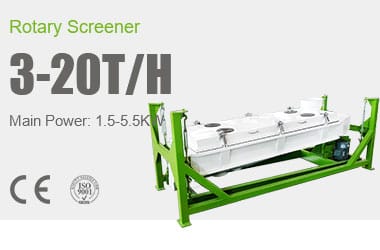

Pellet Screening

The forming rate of palm shell pellets is around 98% , so there are still have 2% powder in pellets, by screening, sort out all the powders from palm shell pellets.

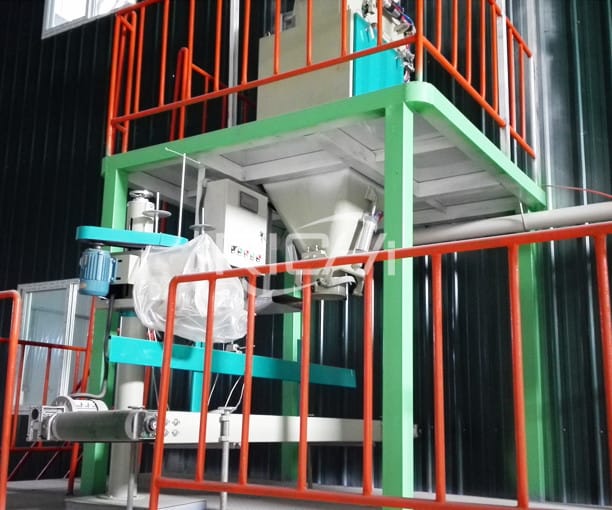

Automatic Packing System
10
Automatic Packing System
Pack Your Bags

The qualified palm shell pellets are packed into plastic bag from 10kg to 100kg(Now more and more biomass pellet processing plant choose tonnage scales).This section can make the palm shell pellets dry and water-proof ,finally extend the palm shell pellets storage time .

Electronic Control System
11
Electronic Control System

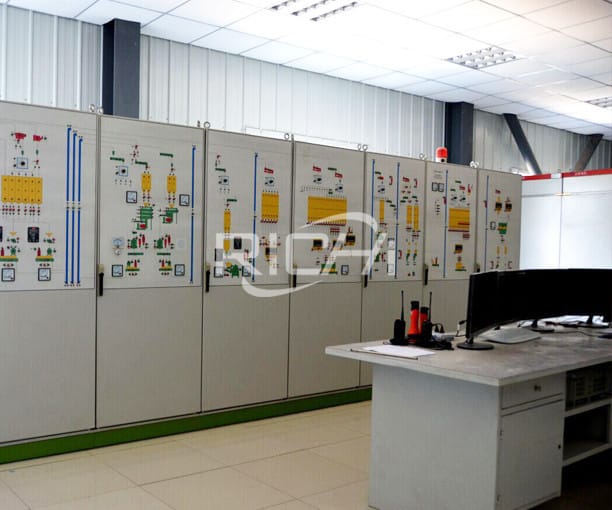

Fully Automatic Control

To control equipment in the whole palm fiber pellet production line.PLC is designed according to the requirement of the customer.It can also control automation level.Our PLC is provided by the top international brands in the industrial automation field such as Siemens, Schneider and Delta.

The 12T/H Automatic Hemp Pellet Line

Case About this

Typical Biomass Wood Pellet Line Turnkey Project

Name:The 12T/H Automatic Hemp Pellet Line
Country: America
Pellet Size:1-12mm
Main Material: Hemp
Total Power:977KW
Main Machines: Forage Hammer Mill*90KW,Hemp Mixer*1000KG/BATCH, Hemp Pellet Machine*160KW,Cooling Machine, Crumbler Machine, Screen Machine, Automatic Packing Machine and other equipment.

Project Summary

The hemp pellet mills in this project were developed for top throughput capacities in compound feed pelleting, and can process even difficult-to-press raw materials which have a high fat or fiber content. The machine sets new standards in terms of efficiency and performance: substantially lower energy consumption in comparison to conventional pellet mills, production capacities of up to 20 t/h, motor ratings of 220 or 260 kW and a customer-oriented design are just some of the advantages of this RICHI machine. However, thanks to the extremely compact design, the machine takes up very little space(workshop size:16m*7m*7.5m)– it delivers twice as much capacity with the same footprint as conventional pellet mills.

The 12T/H Automatic Hemp Pellet Line Layout
2T/H Automatic Wood Pellet Line

Case About this

Typical Biomass Wood Pellet Line Turnkey Project

Name: 2T/H Automatic Wood Pellet Line
Country: Canada
Pellet Size:6-12mm
Main Material: 50% moisture wood chips , 50% moisture sawdust
Total Power:385KW
Main Machines: Wood Chipper, Wood Hammer Mill Crusher, Shifter, Wood Dryer, Storage Bin, Pellet Machine, Cooler, Auto-packing Machine and other auxiliary equipment.

Project Summary

In this project cooperation, exquisite process design and strong production team are very critical factors to impress customers. The final biomass pellets of the project are mainly used for export, and have high quality requirements. Environmental protection and energy saving are integrated into the design of the plan. The dust removal system runs through the entire production link, so as to achieve zero pollution and zero emissions, and meet the local regulations of customers.

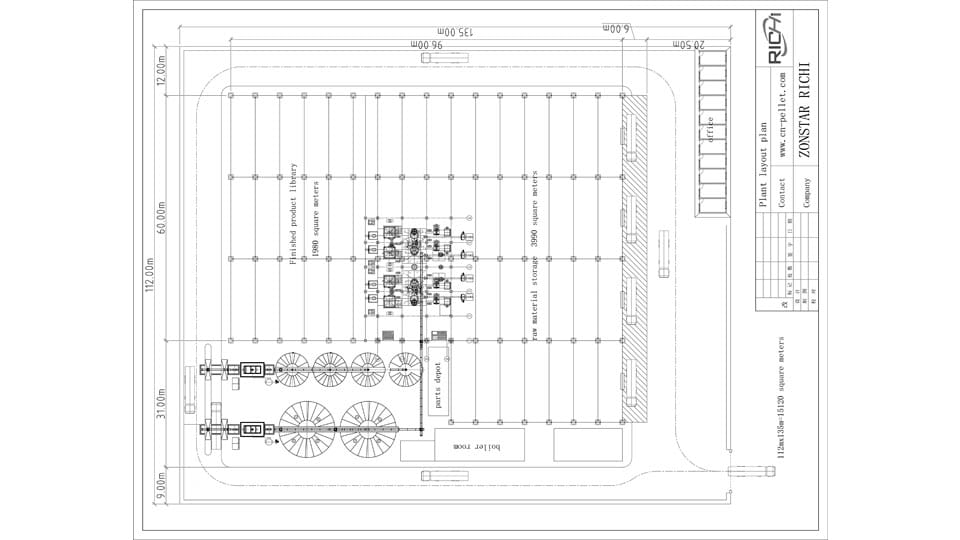

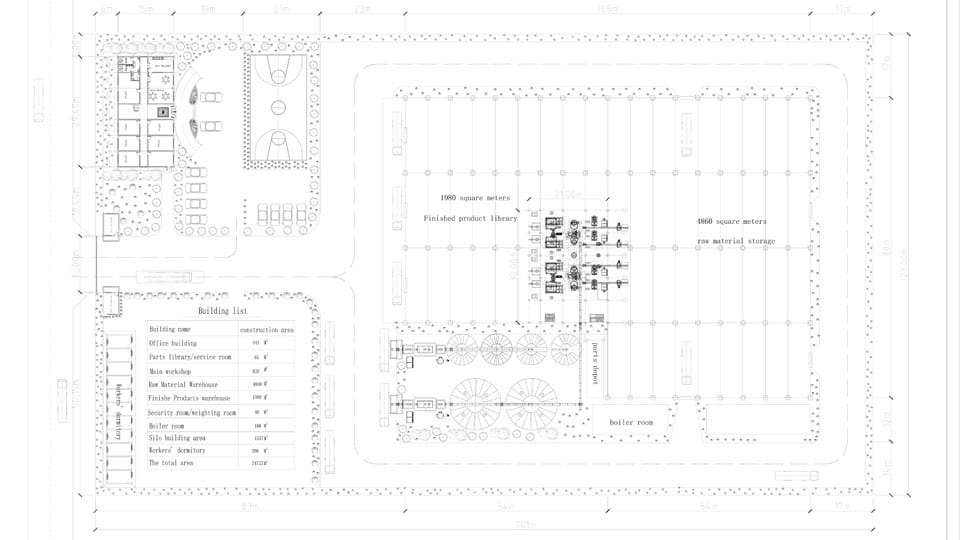

2T/H Automatic Wood Pellet Line Layout
On March 15, 2020, After many rounds of technical negotiation and production line planning, the customer finalized the cooperation with RICHI;
According to the actual situation of the customer, from on-site survey to equipment selection, to installation and commissioning, RICHI provides an customized solution.
RICHI has always been upholding the spirit of craftsman at the stages of machine process, our strict requirements on quality are ultimately aimed at the long-term and trouble-free operation of the equipment to create maximum benefits for customers;
After the quality test before delivery, the 12t/h production line equipments are officially shipped through professional packaging and modular transportation solutions;
Turnkey Service Review
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
RICHI dispatched 2 professional technicians to assist the construction of the site infrastructure, equipment installation and commissioning, and trial operation of the entire production line;
After 40 days of installation, the project was completed successfully, then we provided the customer with the factory certificate, inspection report and other documents.
RICHI will continue to provide a series of after-sales services such as one-year warranty, maintenance and accessories, and quickly responds to customer feedback during project operation.
In August 2008, RICHI stands out from the competition with unique corporate culture, and advantages in products, services, and prices, and successfully undertakes the turnkey project of 10 tons cattle feed pellet line.;
After fully understanding the actual situation of the customer site, after careful discussion with customer, the design of 2-3T wood sawdust line was determined.
RICHI has always been upholding the spirit of craftsman at the stages of machine process, our strict requirements on quality are ultimately aimed at the long-term and trouble-free operation of the equipment to create maximum benefits for customers;
After the quality test before delivery, the 2-3t/h production line equipments are officially shipped through professional packaging and modular transportation solutions;
Turnkey Service Review
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
RICHI dispatched 1 professional technicians to assist the construction of the site infrastructure, equipment installation and commissioning, and trial operation of the entire production line;
After 60 days of installation, the project was completed successfully, then we provided the customer with the factory certificate, inspection report and other documents.
RICHI will continue to provide a series of after-sales services such as one-year warranty, maintenance and accessories, and quickly responds to customer feedback during project operation.
