Waste Paper Pellet Production Line
Waste Paper Pellet Production Line

Waste Paper Pellet Production Line

We pride ourselves on taking your waste paper material and turning it into a value-added revenue stream. If you have something you just don't know what to do with, we can help. We work in biomass, industry, you can be sure we'll find a solution that's just right for you.

Finished Pellet:
2-12mm
Raw material type:
Waste corrugated paper, paper tube, waste paper box, carton pressing blockhard paper, newspapers, waste books, cartons, paper tubes, paper tubes, cardboard,etc.
Functions:
1.Biomass fuel
2.Recycled paper
3.Animal feed
4.Improve soil
5.Cat litter
Capacity:
1-40T/H
Customized For You

Complete Waste Paper Pellet Production Line Processing Flow

Our solutions come in a modular design so you can customize them to match your production process. At RICHI we focus on solutions that pay off, whether it's supplying the smallest spare part or serving as a long term partner. Complete Waste Paper Pellet Production Line includes the following equipments, from the storage of raw materials to the packaging of the final pellets. Each section has professional equipment to work. Of course, according to the different needs, it may be the particularity of the raw materials or the limitations of the site. Our engineers will redesign the process, and the equipment used will be increased or decreased. Click each module below, you will see the specific equipment information.

Raw Material Preparation
1
Raw Material Preparation
X
Raw Material Preparation

This is an optional section.The main task of this section is to quickly shred any shape of waste paper boxes, old corrugated paper, hard paper, newspapers, used books, cartons, paper tubes, paper tubes, cardboard and other materials into small pieces.So a waste paper shredder is needed to complete the task.

Cleaning Section
2
Cleaning Section

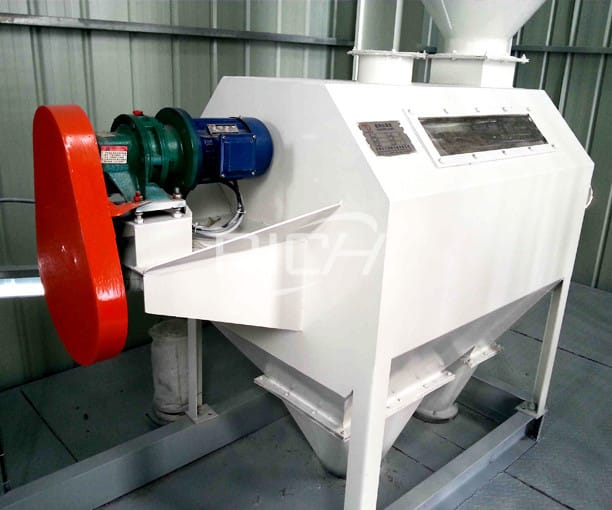

Raw Material Pre-cleaning

Since paper wastes come from a variety of sources, we need cleaning equipment to clean up all kinds of impurities.(We need to clean the raw materials according to the customer's specific waste paper type and impurity type)

Grinding Section
3
Grinding Section

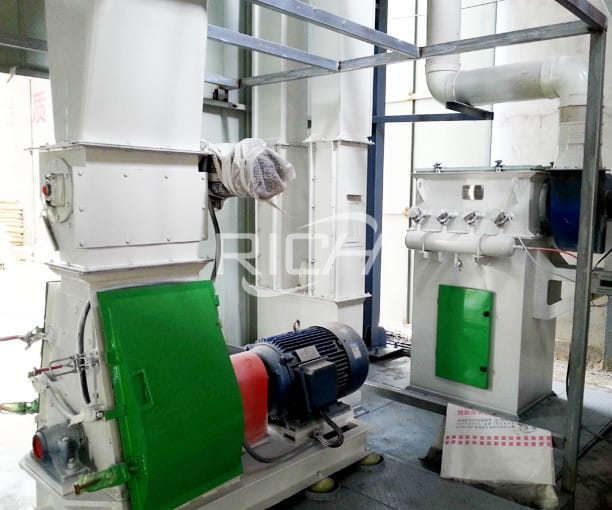

Raw Material Crushing

The task at this stage is to further crush the raw material into small sawdust.Only paper waste that meet the size requirements can be directly fed into the hammer mill, or those that have passed the chipper and coarse crushing and require further fine powder.

Transmission Section
4
Transmission Section
Raw Material Transmission

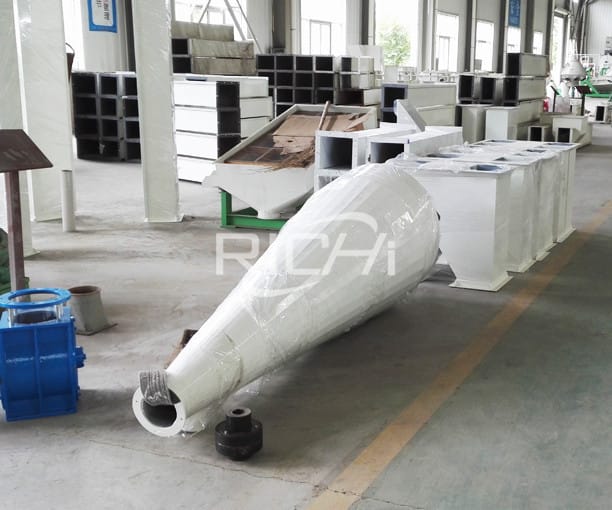

After the raw materials are dried, in the transportation process, the moisture is discharged through the air transportation system (cyclones, fans). At the same time, the formed fuel is cooled and also separated by the air transportation system.By this way, only the qualified wood sawdust will be drawn out, and the wet materials will keep inside the drying machine until they reach the required moisture.

Drying Section
5
Drying Section

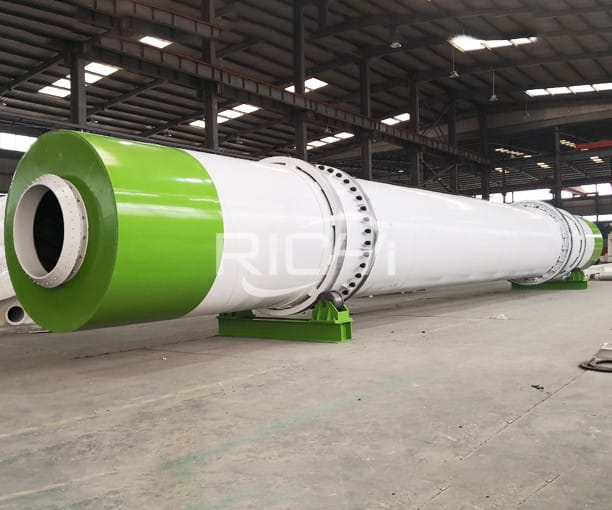

Raw Material Dying

Waste paper pellet has strict requirements on the moisture content of the paper materials. After the waste papers are crushed, they are sent to the hot air furnace drying system through the conveyor for hot air drying.

Mixing Section
6
Mixing Section
Raw Material Mixing

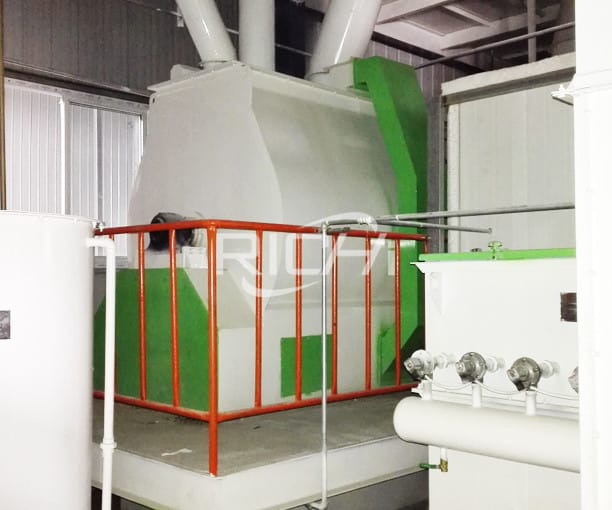

Whether producing single raw material pellets or mixed pellets, maintaining the consistency of raw materials is very important for waste paper pellet production plants. After the waste papers are grinded and dried, binder need to be added,so it is necessary to use a mixer machine. After mixing, the raw materials are mixed more fully and evenly, and then sent to the pellet making machine.

This is an optional section, only a few customers who use special processes will choose. If your raw materials contain enough natural lignin to be glued together,you do not need additives and can completely ignore this section.

Pelletizing Section
7
Pelletizing Section

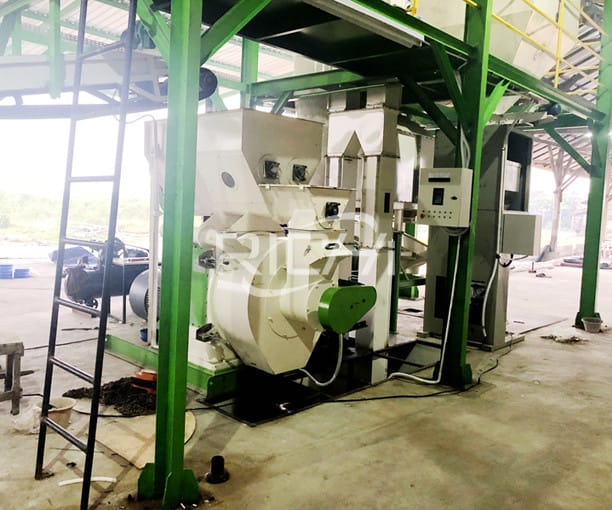

Press Raw Materials into Pellets

The waste paper biomass pellet making machine is the heart of waste paper pellet production line. The waste paper pellet mill can also be widely used for pelletizing wood, straw and other biomass energy. The output ranges from 1 to 10t/h. The waste paper pellet machine adopts Swedish SKF bearings and Siemens motors, which can fully guarantee the pellet equipment capacity and stable operation.

Cooling Section
8
Cooling Section
Pellet Cooling

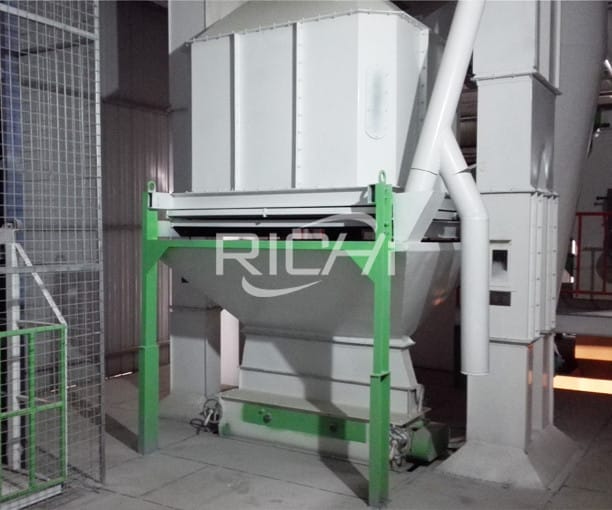

The temperature of the biomass pellets after granulation is as high as 80-98 degrees, the structure is relatively loose, and it is easy to break. It must pass through a counter-flow cooling system and be cooled to room temperature before entering the warehouse.

Screening Section
9
Screening Section

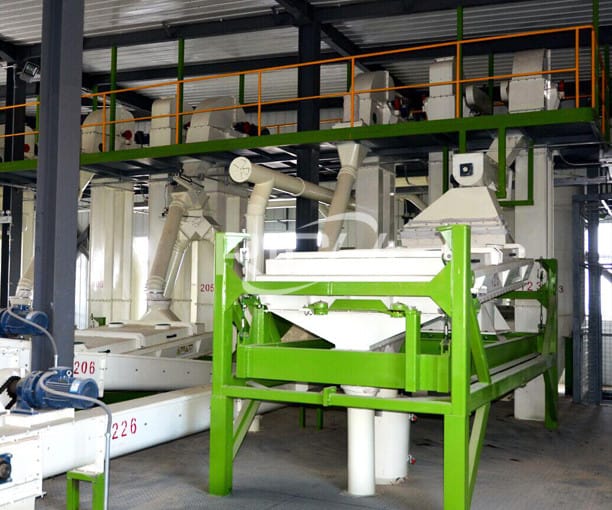

Screen Good Pellets to Meet End Needs

The forming rate of pellets is around 98 % , so there are still have 2% powder in pellets, by screening, sort out all the powders from pellets.

Automatic Packing System
10
Automatic Packing System

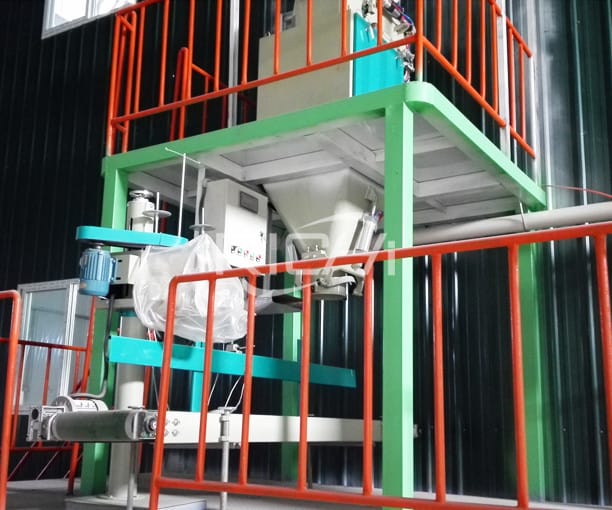

Pack Your Bags

After cooling, the pellets are weighed, qualified waste paper pellets are packed into plastic bag from 10 kg to 100 kg(Now more and more biomass pellet processing plant choose tonnage scales).Then use thermoplastic sealing machine to sew, these can make the pellets dry and water-proof.

Electronic Control System
11
Electronic Control System

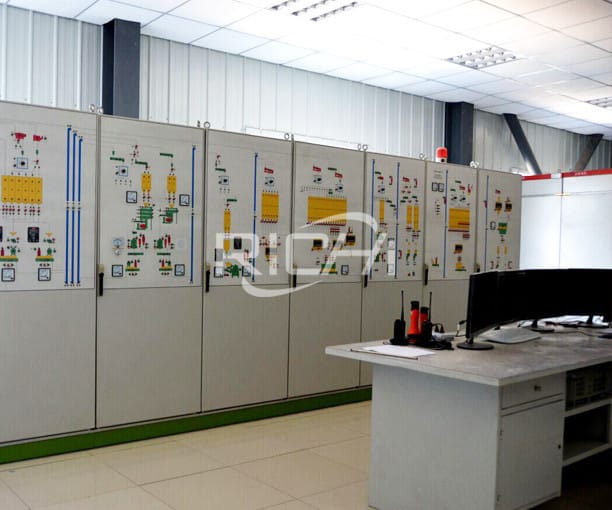

Fully Automatic Control

PLC is designed according to the requirement of the customer. It can also control automation level.Our PLC is provided by the top international brands in the industrial automation field such as Siemens, Schneider and Delta.

The 12T/H Automatic Hemp Pellet Line

Case About this

Typical Biomass Wood Pellet Line Turnkey Project

Name:The 12T/H Automatic Hemp Pellet Line
Country: America
Pellet Size:1-12mm
Main Material: Hemp
Total Power:977KW
Main Machines: Forage Hammer Mill*90KW,Hemp Mixer*1000KG/BATCH, Hemp Pellet Machine*160KW,Cooling Machine, Crumbler Machine, Screen Machine, Automatic Packing Machine and other equipment.

Project Summary

The hemp pellet mills in this project were developed for top throughput capacities in compound feed pelleting, and can process even difficult-to-press raw materials which have a high fat or fiber content. The machine sets new standards in terms of efficiency and performance: substantially lower energy consumption in comparison to conventional pellet mills, production capacities of up to 20 t/h, motor ratings of 220 or 260 kW and a customer-oriented design are just some of the advantages of this RICHI machine. However, thanks to the extremely compact design, the machine takes up very little space(workshop size:16m*7m*7.5m)– it delivers twice as much capacity with the same footprint as conventional pellet mills.

The 12T/H Automatic Hemp Pellet Line Layout
2T/H Automatic Wood Pellet Line

Case About this

Typical Biomass Wood Pellet Line Turnkey Project

Name: 2T/H Automatic Wood Pellet Line
Country: Canada
Pellet Size:6-12mm
Main Material: 50% moisture wood chips , 50% moisture sawdust
Total Power:385KW
Main Machines: Wood Chipper, Wood Hammer Mill Crusher, Shifter, Wood Dryer, Storage Bin, Pellet Machine, Cooler, Auto-packing Machine and other auxiliary equipment.

Project Summary

In this project cooperation, exquisite process design and strong production team are very critical factors to impress customers. The final biomass pellets of the project are mainly used for export, and have high quality requirements. Environmental protection and energy saving are integrated into the design of the plan. The dust removal system runs through the entire production link, so as to achieve zero pollution and zero emissions, and meet the local regulations of customers.

2T/H Automatic Wood Pellet Line Layout
On March 15, 2020, After many rounds of technical negotiation and production line planning, the customer finalized the cooperation with RICHI;
According to the actual situation of the customer, from on-site survey to equipment selection, to installation and commissioning, RICHI provides an customized solution.
RICHI has always been upholding the spirit of craftsman at the stages of machine process, our strict requirements on quality are ultimately aimed at the long-term and trouble-free operation of the equipment to create maximum benefits for customers;
After the quality test before delivery, the 12t/h production line equipments are officially shipped through professional packaging and modular transportation solutions;
Turnkey Service Review
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
RICHI dispatched 2 professional technicians to assist the construction of the site infrastructure, equipment installation and commissioning, and trial operation of the entire production line;
After 40 days of installation, the project was completed successfully, then we provided the customer with the factory certificate, inspection report and other documents.
RICHI will continue to provide a series of after-sales services such as one-year warranty, maintenance and accessories, and quickly responds to customer feedback during project operation.
In August 2008, RICHI stands out from the competition with unique corporate culture, and advantages in products, services, and prices, and successfully undertakes the turnkey project of 10 tons cattle feed pellet line.;
After fully understanding the actual situation of the customer site, after careful discussion with customer, the design of 2-3T wood sawdust line was determined.
RICHI has always been upholding the spirit of craftsman at the stages of machine process, our strict requirements on quality are ultimately aimed at the long-term and trouble-free operation of the equipment to create maximum benefits for customers;
After the quality test before delivery, the 2-3t/h production line equipments are officially shipped through professional packaging and modular transportation solutions;
Turnkey Service Review
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
RICHI dispatched 1 professional technicians to assist the construction of the site infrastructure, equipment installation and commissioning, and trial operation of the entire production line;
After 60 days of installation, the project was completed successfully, then we provided the customer with the factory certificate, inspection report and other documents.
RICHI will continue to provide a series of after-sales services such as one-year warranty, maintenance and accessories, and quickly responds to customer feedback during project operation.
