Furniture factories, floor factories, joinery factories and other wood processing companies often produce a large amount of waste such as wood shavings, wood chips and edging. The moisture of wood shavings waste is basically guaranteed to be between 10-20%, which meets our compact molding requirements 12-16% range.

Finished Pellet:
6-12mm
Raw material type:
Wood chips, board waste, wet wood chips,wood sawdust ,log wood waste,beech wood sawdust ,acacia wood,hops,etc.
Functions:
1.Large-scale power generation
2.Central heating
3.Boilers
4.Cooking
5.Home heating
6.Organic fertilizer
Capacity:
1-40T/H
×

Complete Wood Shavings Pellet Production Line Processing Flow

Our solutions come in a modular design so you can customize them to match your production process. At RICHI we focus on solutions that pay off, whether it's supplying the smallest spare part or serving as a long term partner. Complete Wood Shavings Pellet Production Line includes the following equipments, from the storage of raw materials to the packaging of the final pellets. Each section has professional equipment to work. Of course, according to the different needs, it may be the particularity of the raw materials or the limitations of the site. Our engineers will redesign the process, and the equipment used will be increased or decreased. Click each module below, you will see the specific equipment information.

Cleaning Section

1

hand
Cleaning Section
Raw Material Pre-cleaning

The wood shavings are transported to the screening machine through conveyor to be cleaned, and large debris such as wooden blocks or iron nails are proposed.



PELLET CLEANING SIEVE

MAGNETIC SEPARATOR

Grinding Section

2

hand
Grinding Section

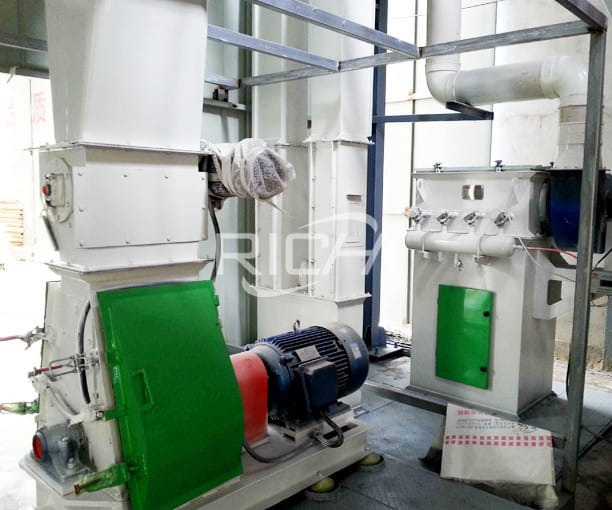

Raw Material Crushing

The task at this stage is to further crush the wood shavings into small wood sawdust.Only wood shavings that meet the size requirements can be directly fed into the hammer mill.Due to the wide range of screen sizes on the hammer mill, it can produce particles of various sizes, so it is the most common choice for wood pellet manufacturers.



WOOD CRUSHER

Conveyor Section

3

hand
Conveyor Section
Raw Material Transmission

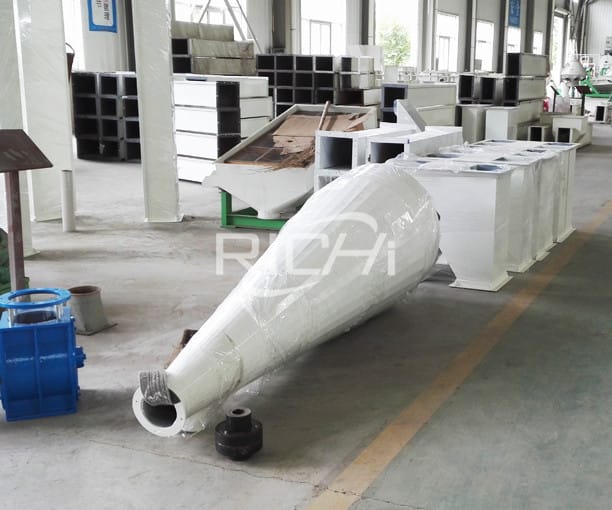

After crushing ,materials due to the existence of air circulation inside of wood shavings hammer mill and can not drop down by gravity ,so we add a draught fan and cyclone with dust collector here, to provide the strong wind for breaking the circulation , in order to the final sawdust drop down and also keep the environment clean.



DRUM DRYER

Drying Section

4

hand
Drying Section
Raw Material Dying

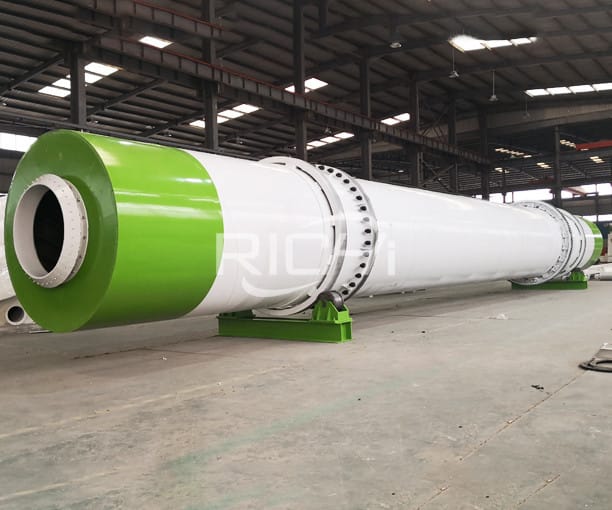

For drying part, you can adjust the feeding speed, the rotating speed of the drying machine, and the inlet air temperature to adjust and to get the required moisture to make wood shavings pellets. And the suitable moisture to make wood shavings pellets is 15%-17% . ( About how to adjust, our engineer will train your labors) Different capacity, and different capacity, the diameter and length of the drying machine is different.





Mixing Section

5

hand
Mixing Section
Raw Material Mixing

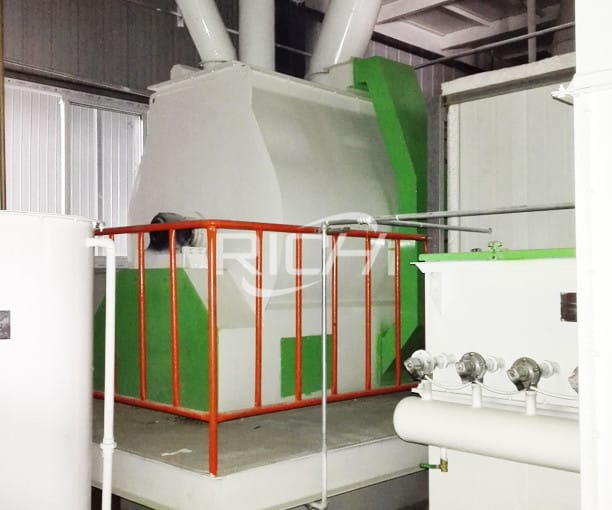

Whether producing single raw material pellets or mixed pellets, maintaining the consistency of wood shavings is very important for pellet production plants. After the wood shavings are grinded and dried, binder(vegetable oil, molasses, starch, gluten, dried lees, rapeseed cake, etc.) need to be added,so it is necessary to use a mixer machine. After mixing, the raw materials are mixed more fully and evenly, and then sent to the pellet making machine.

This is an optional section, only a few customers who use special processes will choose. If your raw materials contain enough natural lignin to be glued together,you do not need additives and can completely ignore this section.

Pre-treatment Section

6

hand
Pre-treatment Section
Pre-treatment for Top Pellets

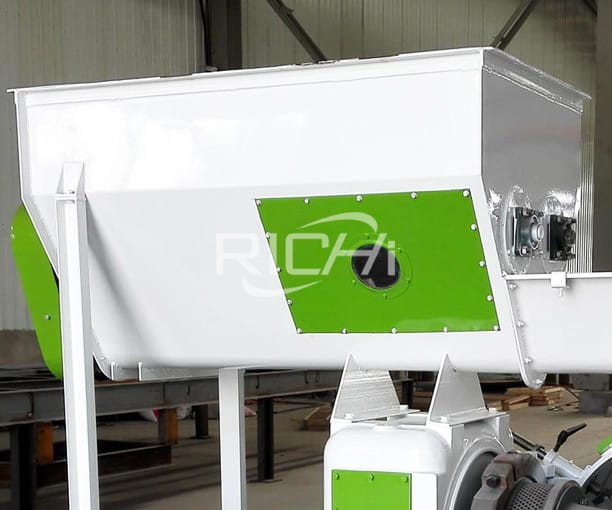

After the wood sawdust raw materials are thoroughly mixed, water and steam need to be added to make the pellets. These additives can help improve the working efficiency of the  wood shavings pellet mill machine.

Pelletizing Section

7

Pelletizing Section
Press Raw Materials into Pellets

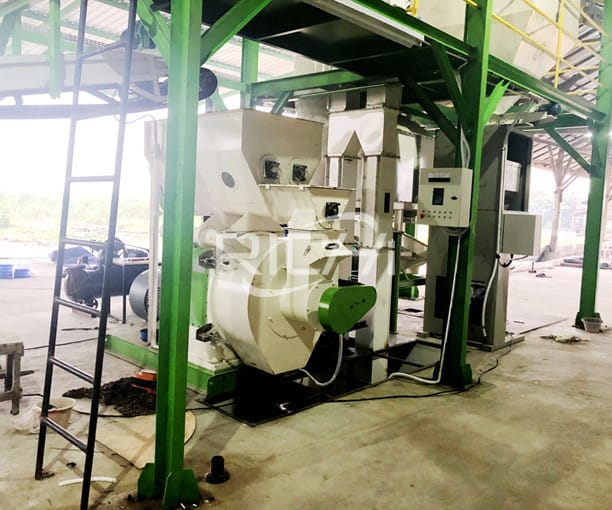

The wood shavings pellet making machine is the heart of the wood shavings pellet production line. The pellet machine is widely used for pelletizing wood, straw and other biomass energy. The output ranges from 1 to 10 tons/hour. The biomass wood pellet machine adopts Swedish SKF bearings and Siemens motors, which can fully guarantee the wood shavings pellet equipment capacity and stable operation.



WOOD PELLET MAKING MACHINE

Cooling Section

8

hand
Cooling Section
Pellet Cooling

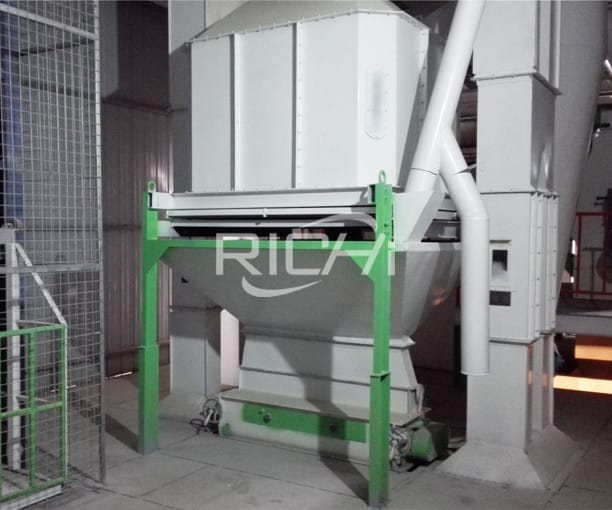

The temperature of the wood shavings pellets after granulation is as high as 80-98 degrees, the structure is relatively loose, and it is easy to break. It must pass through a counter-flow cooling system and be cooled to room temperature before entering the warehouse.



PELLET COOLER

Screening Section

9

hand
Screening Section
Screen Good Pellets to Meet End Needs

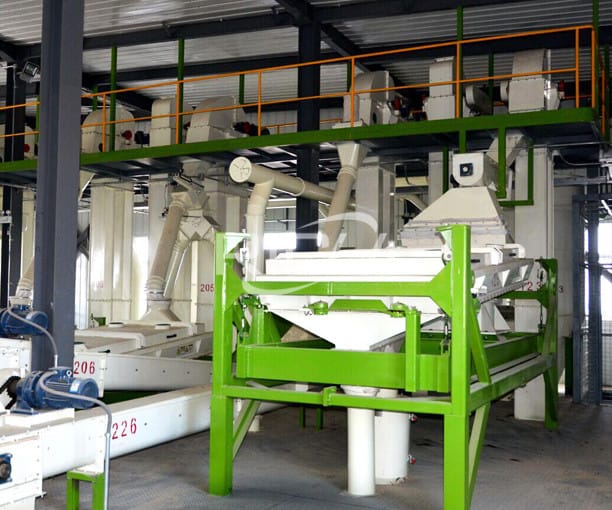

The forming rate of wood shavings pellets is around 98% , so there are still 2% powder in pellets, by screening, sort out all the powders from pellets.



PELLET SCREENER

Automatic Packing System

10

hand
Automatic Packing System
Pack Your Bags

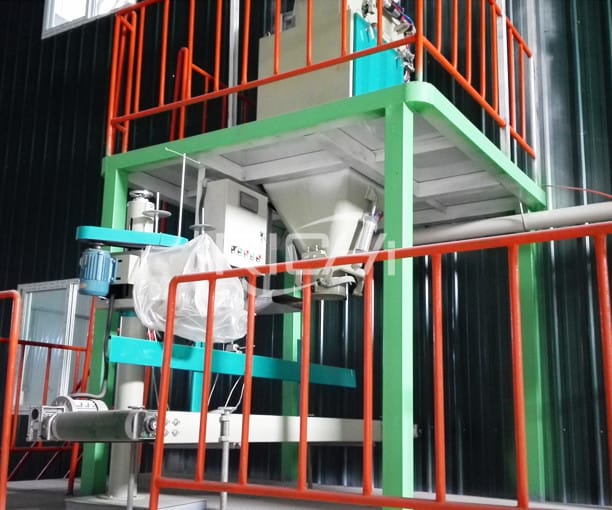

The qualified pellets are packed into plastic bag from 10 kg to 100 kg(Now more and more biomass pellet processing plant choose tonnage scales).Then use thermoplastic sealing machine to sew, these can make the pellets dry and water-proof . To extend the wood pellets storage time.



AUTOMATIC PACKAGING MACHINE

Electronic Control System

11

hand
Electronic Control System
Fully Automatic Control

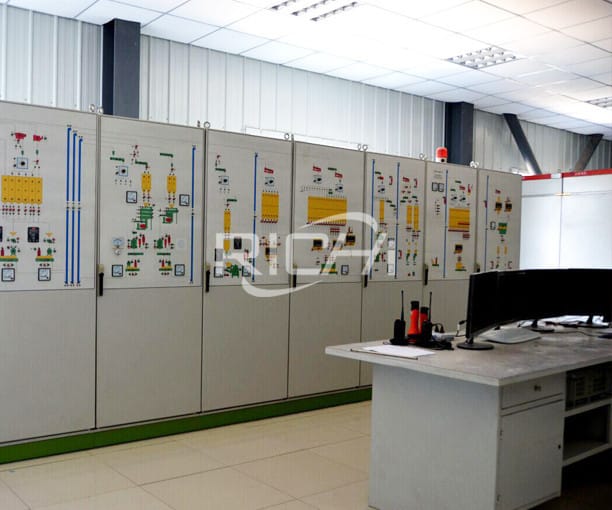

PLC is designed according to the requirement of the customer. It can also control automation level.Our PLC is provided by the top international brands in the industrial automation field such as Siemens, Schneider and Delta.

Send Inquiry

The Mian Equipments of Complete Biomass Pellet Production Line

RICHI can provide the complete turnkey project biomass wood pellet production line, from design to install . Whether you want to produce wood pellet, sawdust pellet ,rice husk pellet, EFB pellet ,grass pellet or organic fertilizer pellet, the capacity is 1-100TPH can be choose. The main machine is wood chipper,wood crusher, drum dryer, wood pellet machine , cooling machine ,rotary sereener and others . Looking forward to your consultation !

Send Inquiry
The 12T/H Automatic Hemp Pellet Line

Case About this

Typical Biomass Wood Pellet Line Turnkey Project

Name:The 12T/H Automatic Hemp Pellet Line
Country: America
Pellet Size:1-12mm
Main Material: Hemp
Total Power:977KW
Main Machines: Forage Hammer Mill*90KW,Hemp Mixer*1000KG/BATCH, Hemp Pellet Machine*160KW,Cooling Machine, Crumbler Machine, Screen Machine, Automatic Packing Machine and other equipment.

Send Inquiry
Project Summary

The hemp pellet mills in this project were developed for top throughput capacities in compound feed pelleting, and can process even difficult-to-press raw materials which have a high fat or fiber content. The machine sets new standards in terms of efficiency and performance: substantially lower energy consumption in comparison to conventional pellet mills, production capacities of up to 20 t/h, motor ratings of 220 or 260 kW and a customer-oriented design are just some of the advantages of this RICHI machine. However, thanks to the extremely compact design, the machine takes up very little space(workshop size:16m*7m*7.5m)– it delivers twice as much capacity with the same footprint as conventional pellet mills.

Send Inquiry
The 12T/H Automatic Hemp Pellet Line Layout
2T/H Automatic Wood Pellet Line

Case About this

Typical Biomass Wood Pellet Line Turnkey Project

Name: 2T/H Automatic Wood Pellet Line
Country: Canada
Pellet Size:6-12mm
Main Material: 50% moisture wood chips , 50% moisture sawdust
Total Power:385KW
Main Machines: Wood Chipper, Wood Hammer Mill Crusher, Shifter, Wood Dryer, Storage Bin, Pellet Machine, Cooler, Auto-packing Machine and other auxiliary equipment.

Send Inquiry
Project Summary

In this project cooperation, exquisite process design and strong production team are very critical factors to impress customers. The final biomass pellets of the project are mainly used for export, and have high quality requirements. Environmental protection and energy saving are integrated into the design of the plan. The dust removal system runs through the entire production link, so as to achieve zero pollution and zero emissions, and meet the local regulations of customers.

Send Inquiry
2T/H Automatic Wood Pellet Line Layout
Pellet Production Line
On March 15, 2020, After many rounds of technical negotiation and production line planning, the customer finalized the cooperation with RICHI;
Pellet Production Line
According to the actual situation of the customer, from on-site survey to equipment selection, to installation and commissioning, RICHI provides an customized solution.
Pellet Production Line
RICHI has always been upholding the spirit of craftsman at the stages of machine process, our strict requirements on quality are ultimately aimed at the long-term and trouble-free operation of the equipment to create maximum benefits for customers;
Pellet Production Line
After the quality test before delivery, the 12t/h production line equipments are officially shipped through professional packaging and modular transportation solutions;
Turnkey Service Review
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
Pellet Production Line
RICHI dispatched 2 professional technicians to assist the construction of the site infrastructure, equipment installation and commissioning, and trial operation of the entire production line;
Pellet Production Line
After 40 days of installation, the project was completed successfully, then we provided the customer with the factory certificate, inspection report and other documents.
Pellet Production Line
RICHI will continue to provide a series of after-sales services such as one-year warranty, maintenance and accessories, and quickly responds to customer feedback during project operation.
Pellet Production Line
In August 2008, RICHI stands out from the competition with unique corporate culture, and advantages in products, services, and prices, and successfully undertakes the turnkey project of 10 tons cattle feed pellet line.;
Pellet Production Line
After fully understanding the actual situation of the customer site, after careful discussion with customer, the design of 2-3T wood sawdust line was determined.
Pellet Production Line
RICHI has always been upholding the spirit of craftsman at the stages of machine process, our strict requirements on quality are ultimately aimed at the long-term and trouble-free operation of the equipment to create maximum benefits for customers;
Pellet Production Line
After the quality test before delivery, the 2-3t/h production line equipments are officially shipped through professional packaging and modular transportation solutions;
Turnkey Service Review
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
Pellet Production Line
RICHI dispatched 1 professional technicians to assist the construction of the site infrastructure, equipment installation and commissioning, and trial operation of the entire production line;
Pellet Production Line
After 60 days of installation, the project was completed successfully, then we provided the customer with the factory certificate, inspection report and other documents.
Pellet Production Line
RICHI will continue to provide a series of after-sales services such as one-year warranty, maintenance and accessories, and quickly responds to customer feedback during project operation.
