RICHI MZLH-768 wood pellet machine can production wood pellet, it is widely used for recycling usage of wastes and tailings in biomass fuel plant，power plant，wood processing plant，furniture factory, fertilizer plant，chemical factory，foodstuffs factory and brewery. The biomass pellet are used in large-scale power plants, medium-scale district heating systems, and small-scale residential heat.
RICHI ring die wood pellet machine is suitable for the materials with low adhesive and formation rate，which are difficult to pressing molding，such as rice husk，sunflower seed husk ，peanut hull，a variety of wood wast like branch，trunk，bark，various of crop straw，eucalyptus，paim fiber（EFB），coffee shell，sawdust and so on.
To build a clean and sustainable future by converting biomass into renewable energy.

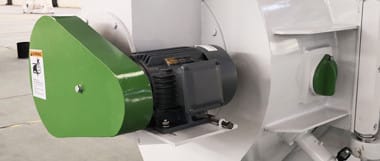

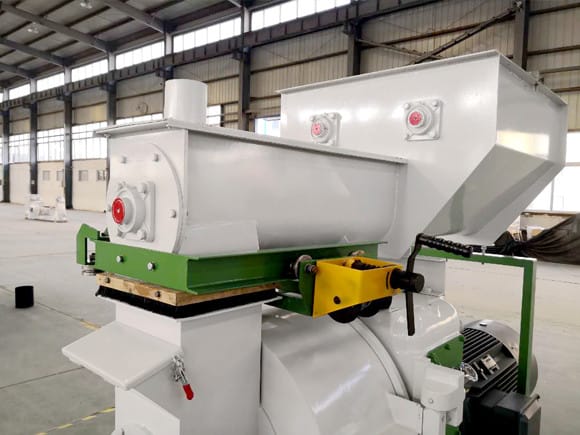

Frequency conversion feeding can be used to effectively prevent the uneven feeding caused by voltage instability.

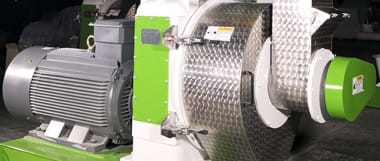

The main drive adopts high-precision gear transmission, and the ring die adopts quick-release hoop type. The output is about 20% higher than the belt drive type.

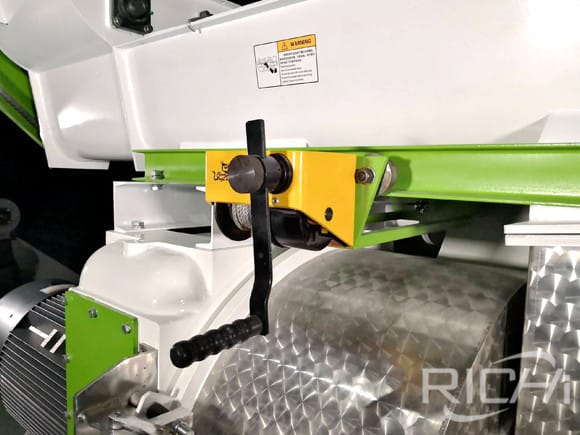

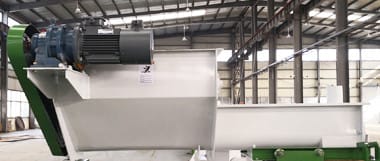

Force Feeder can let the light raw material to better enter into the pelletizing chamber, and make the pelletizing process normal working

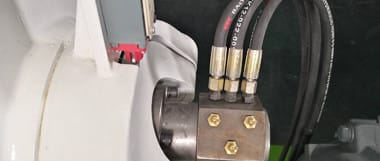

Security,has a strong magnetic magnet and overload protection device such as a safe,safe and reliable.

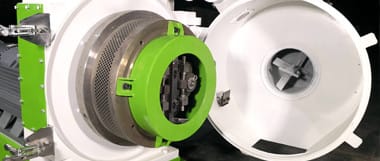

The optimized pelletizing chamber structure ensures the that the pressing material is evenly divided and maximizes the working potential of the pelletizer.

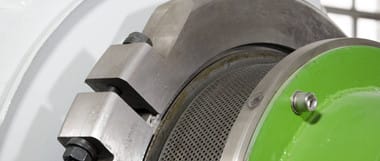

The host drive with high precision gear drive,the ring die adopt anchorear type and disassembly is convenient.
RICHI Pellet machine is mainly suitable for the production of all kinds of different raw material pellets. It is mainly composed of drive system, feeding system, pelletizing system, etc. Pls cleck the every part to understand RICHI pellet machine.

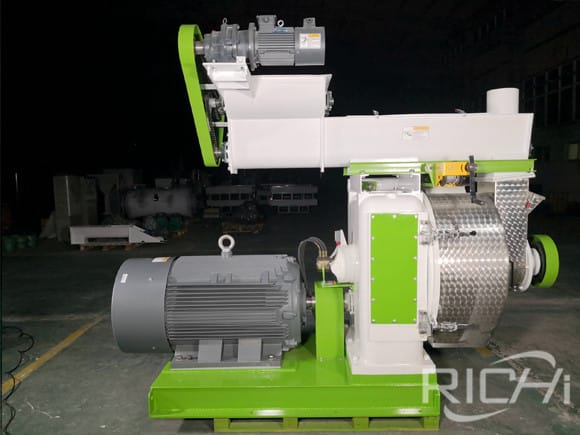

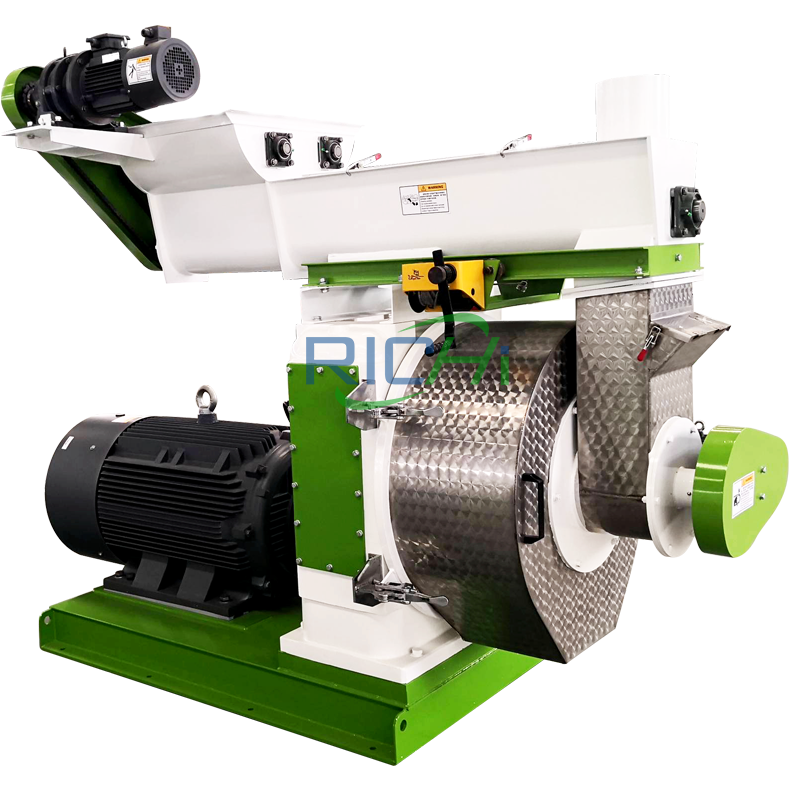

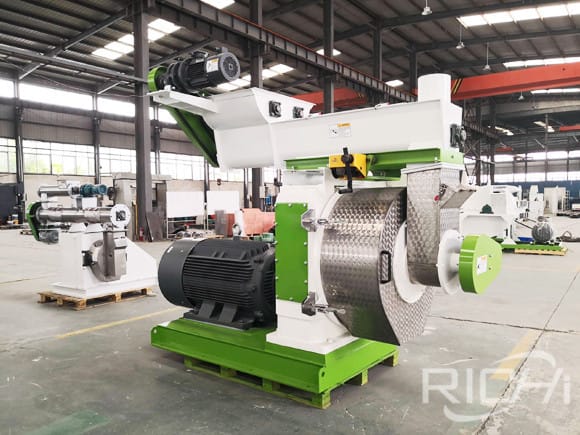

Abou the MZLH-768 Wood Pellet Machine:
The capacity of wood sawdust pellet:2500-4000 KG/H
The capacity of grass alfalfa hemp pellet: 5000-7000 KG/H
The capacity of organic fertilizer pellet: 9-10 T/H
The Size of Pellet Machine: 3300*1500*2000MM
The Anti-caking Feeder Power:3KW
The Forced Feed Power :1 KW
The Pellet Machine Power: 250KW
The Final Pellet :6-12mm
The Weight : 5000KG
|Anti-caking Feeder Power||1.5KW||1.5KW||1.5KW||2.2KW||3KW||3KW|
|Forced Feeder Power||0.55KW||0.55KW||0.55KW||0.75KW||1KW||1KW|
|Pellet Machine Power||37KW||55KW||90KW||132KW||250KW||280KW|
|Capacity(wood sawdust,biomass)||300-400KG/H||500-700KG/H||1.0-1.2 T/H||2.0-2.5 T/H||2.5-4 T/H||3-4.5 T/H|
|Capacity(grass,straw)||600-800KG/H||800-1000KG/H||1.5-2 T/H||3-4 T/H||5-7 T/H||8-10 T/H|
|Capacity(organic fertilizer)||1-2 T/H||3-4 T/H||5-6 T/H||7-8 T/H||9-10 T/H||10-12 T/H|
