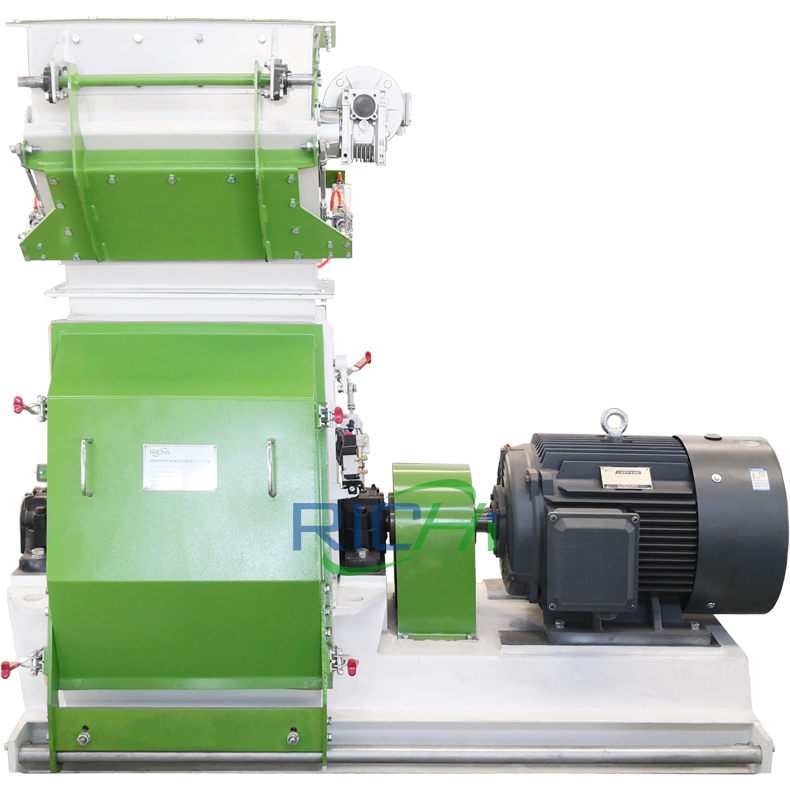

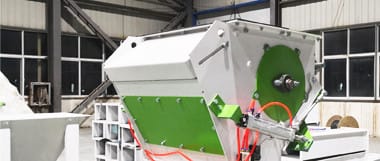

SFSP Wood Crusher

SFSP Wood Crusher

The wood crusher adopts hammer blade design, which can be used to crush common materials. Because of the high output, it is usually used for crushing operations in pellet mills. It can be used alone, but it is generally installed in a pellet production line and used in conjunction with other pellet processing machinery (pellet machine, drying machine, cooling machine).

Mode:
SFSP

Capacity:
3-25TPH

Main Power:
110KW

Applicable Working Conditions:
Applicable scale:

The raw materials are fed from the top of the wood crusher. Under the action of high-speed rotary hammer and the friction of the sieve plate, the raw materials are gradually crushed, and under the action of centrifugal force, they pass through the sieve holes and are discharged from the outlet of the feed hammer mill base.

Technical Features

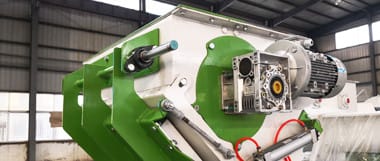

frequency conversion feeder
Rugged and Durable

Our equipment is processed with high-standard steel, and the thickness of the body is 20% higher than the same industry, which greatly improves the service life.

frequency conversion feeder
Variable Frequency Motor

This crushing machine adopts two-level energy-efficient frequency conversion motor, the speed is faster, improve the grinding efficiency, shorten the grinding time.

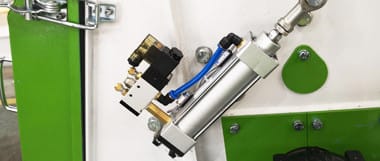

pneumatic gate
Precision Control

Pneumatic gate switch is used to strictly control the feeding time to ensure the stability of production.

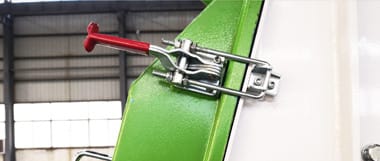

portable door lock
Higher Portability

Built-in self-lock makes the cover flexible and safe.

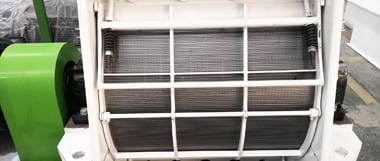

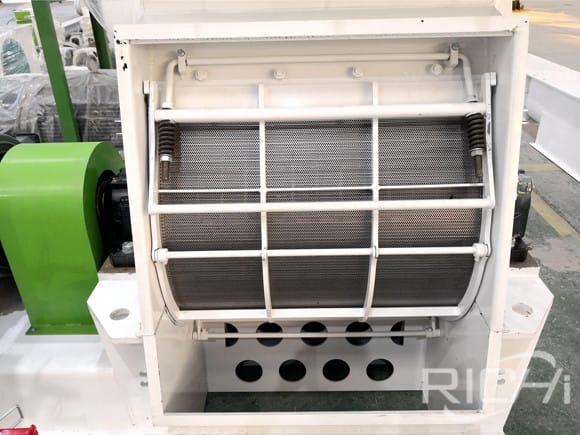

wood crusher sieve
High-standard Material Processing

Special heat-treated hammer, screen and bearing guarantee the high efficiency.

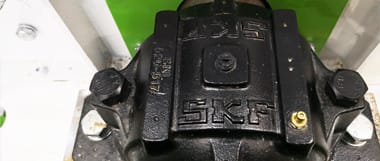

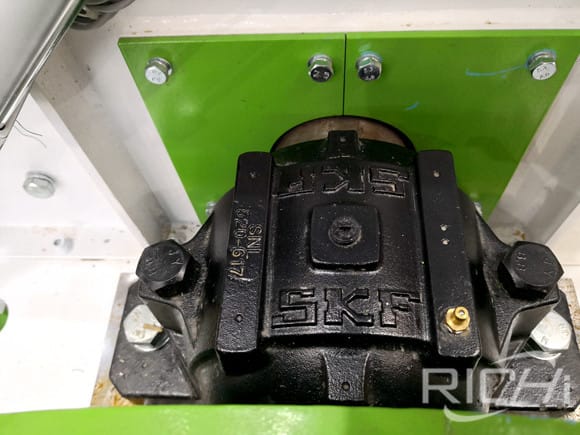

wood crusher bearing
Longer Service life

Rotor, passed the high-precision dynamic equilibrium experiment, works in slight vibration, thus has a long operating life.

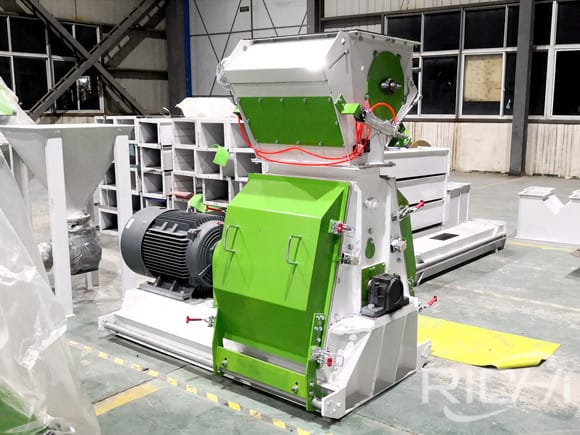

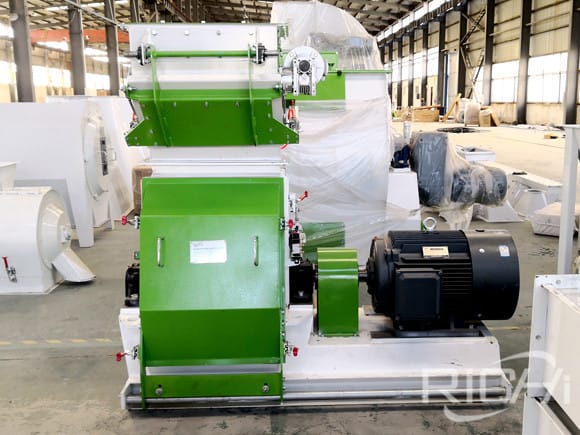

Product Display

The quality and know how inherent in wood crusher are backed by over 25 years’ experience in the pelletizing solution and other related industries around the world. The requirements for grinding a large number of special products have led to the development of crusher that can be adapted to almost any application, regardless of whether coarse or fine grinding is required, e.g. raw materials for the production of wood pellet production.

→ Please contact us if you are interested
  • SFSP Wood Crusher
  • SFSP Wood Crusher
  • SFSP Wood Crusher
  • SFSP Wood Crusher

Technical Parameters

Model SFSP56*40a SFSP56*40b SFSP66*60a SFSP66*60b SFSP66*80a SFSP66*80b SFSP66*100 SFSP138*30E SFSP138*40E
Power 30kw 37kw 55kw 75kw 90kw 110kw 132kw 110/132kw 132/160kw
Capacity 3-5T/H 4-6T/H 5-8T/H 6-9T/H 8-10T/H 10-13T/H 12-16T/H 15-20T/H 18-25T/H
Speed 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 1440r/min 1440r/min
