Hemp Pellet Production Line
Since some countries have legalized cannabis, hemp has been widely found in the feeds of dogs, horses, and cattle in these countries. Therefore, for many farmers, adding hemp to animal feed is a matter that does not require much thought, because hemp is easy to grow and is nutritious.
- Finished Pellet:
- 2-12mm
- Raw material type:
- Alfalfa,grass,Foxtail,reed,hay,oat grass,hemp,miscanthus,giant king grass,straw,rice husk,wheat stalk,etc.
- Functions:

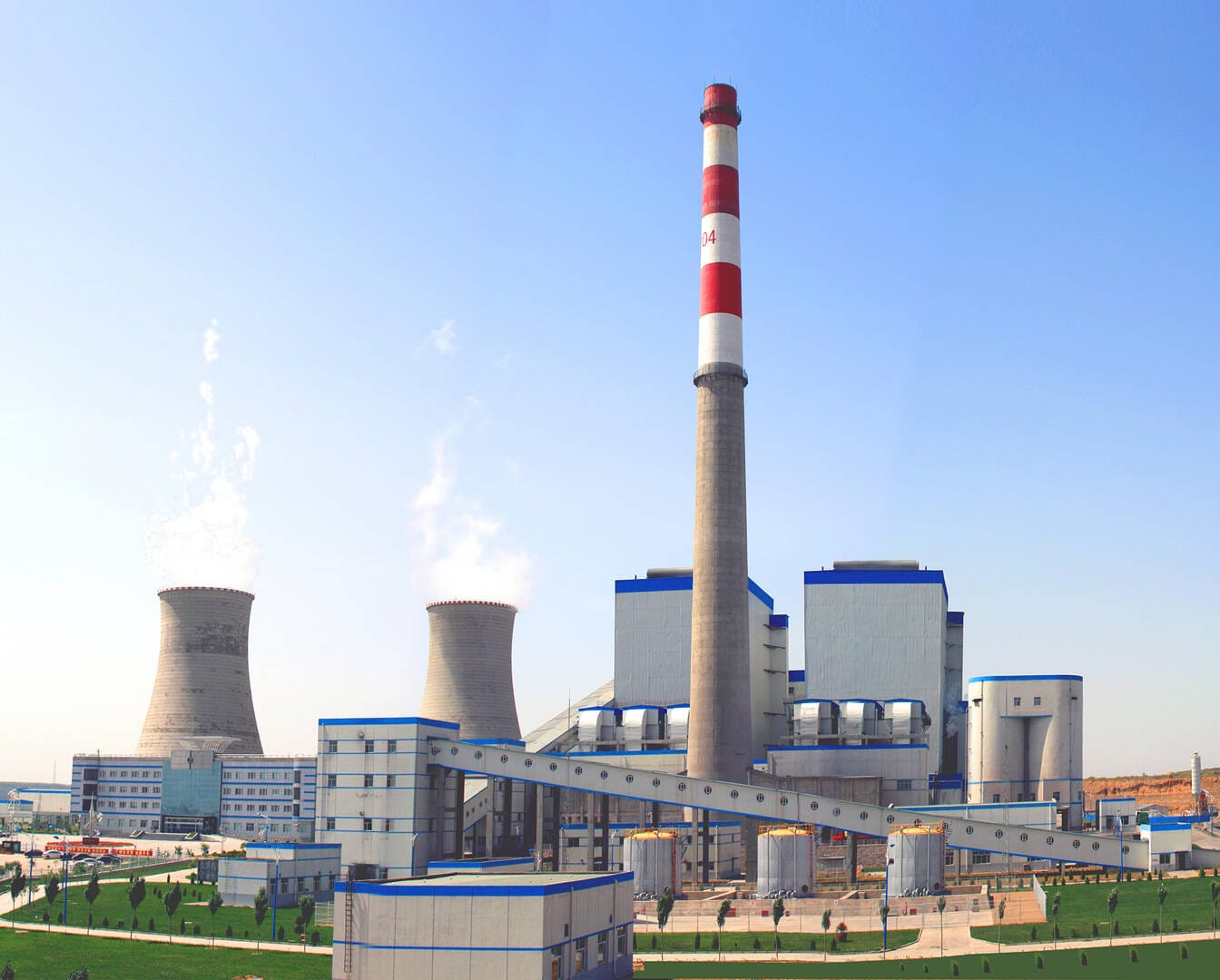

- 1.Large-scale power generation
2.Heating
3.Animal feed
4.Organic fertilizer
- Capacity:
- 1-40T/H
Complete Hemp Pellet Production Line Processing Flow
Our solutions come in a modular design so you can customize them to match your production process. At RICHI we focus on solutions that pay off, whether it’s supplying the smallest spare part or serving as a long term partner. Complete Hemp Pellet Production Line includes the following equipments, from the storage of raw materials to the packaging of the final pellets. Each section has professional equipment to work. Of course, according to the different needs, it may be the particularity of the raw materials or the limitations of the site. Our engineers will redesign the process, and the equipment used will be increased or decreased. Click each module below, you will see the specific equipment information.
Raw Material Preparation
1
Raw Material Preparation
Cut the hemp with too long length to meet the feeding requirements of the subsequent crushing section. This is an optional section. If the length of hemp material meets the requirements, there is no need to set this section. This section is also suitable for cutting all kinds of grass, hay, cereal grass, straw, wild grass, wheat straw, corn straw and other forages.
At present, many agricultural and forestry solid wastes such as hemp, alfalfa, wheat straw, corn straw, etc. are bundled before entering the pellet production process. Therefore, If you are in this situation,it is necessary to set up a bundle broken section to achieve continuous production and adapt to the requirements of modern industry.
Drying Section
2
Raw Material Dying

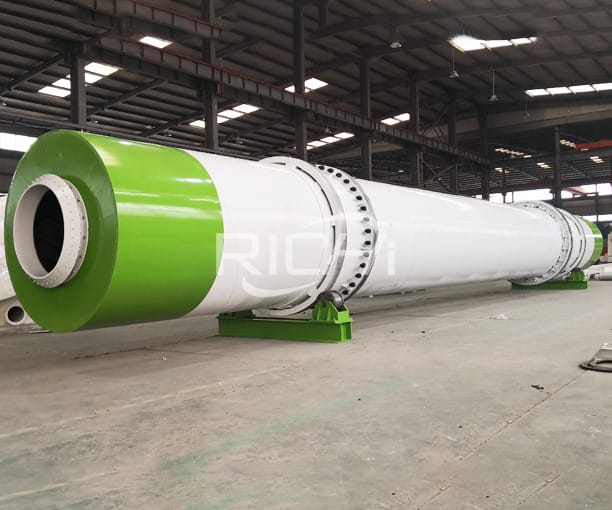

Hemp pellets have strict requirements on the moisture content of the raw materials. After the raw materials are sieved, they are transported to the drum dryer through conveyor and dried by hot air.
Grinding Section
3

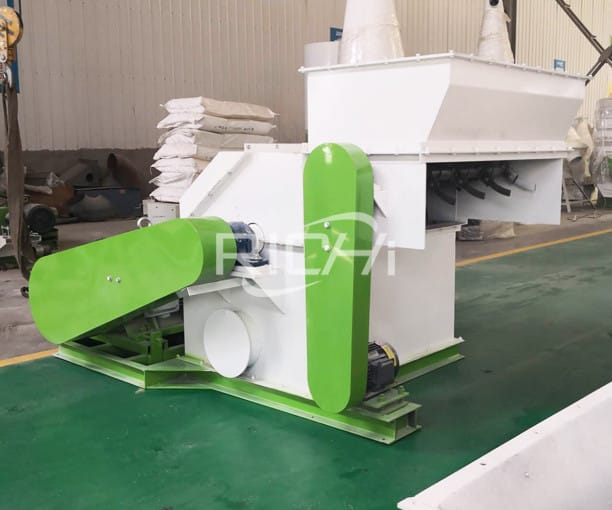

Raw Material Crushing
The task at this stage is to further crush the hemp raw material into small hemp particles of 0.2-0.4.This secton required forage mill crusher.
Mixing Section
4

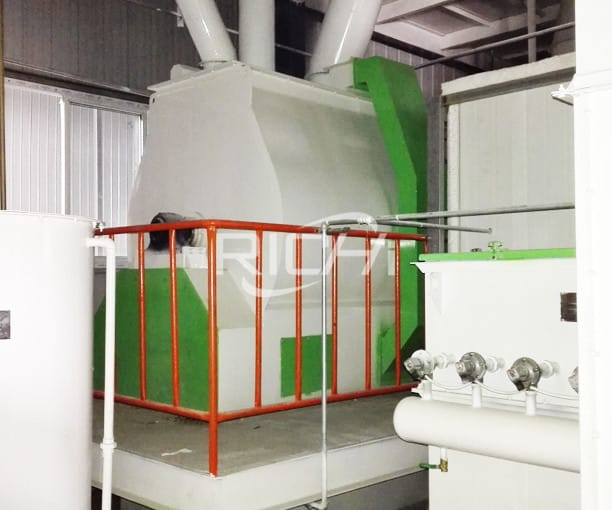

Raw Material Mixing
This section is optional. If hemp pellets are used as animal feed, then it is necessary to premix all ingredients with a small amount of grass powder in proportion to the unit output ratio according to the grass pellet formula design requirements, and then add all the grass powder to mix and enter the next processing procedure. The raw materials are accurately weighed before mixing, and the small amount of ingredients must be pre-mixed.Additives such as flax cake, energy protein mixture, dicalcium phosphate, artificial salt and the like are also required during the processing of hemp pellets.
Pelltizing Section
5

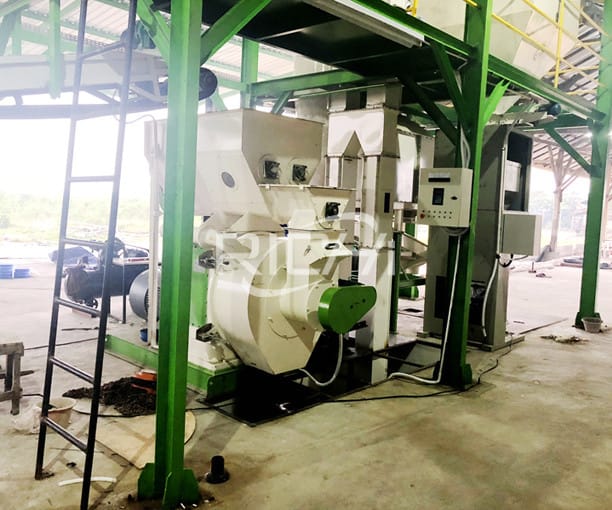

Press Raw Materials into Pellets
The uniformly mixed raw materials enter the hemp for compression. The unformed powder is returned to the powder bins for further processing. The formed hemp pellets enter the cooling machine. The water content of the alfalfa pellets after cooling does not exceed 13%. Because the water content is very low, it is suitable for long-term storage without mold and deterioration.
Cooling Section
6

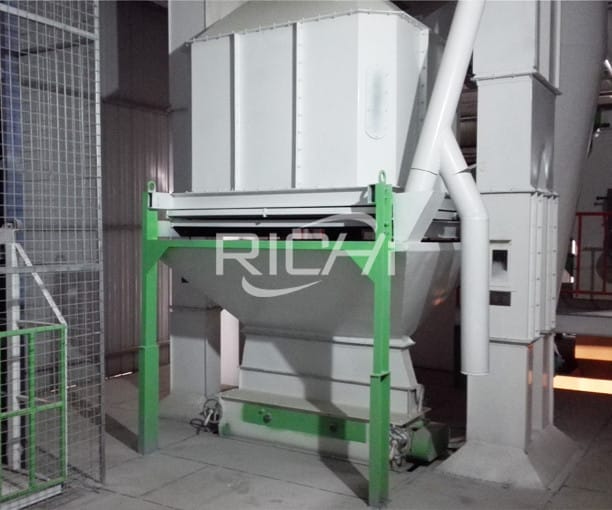

Pellet Cooling
Send the formed hemp pellets to a cooling device to dissipate heat, cool and dry quickly, and then sent to finished products for export.
Screening Section
7

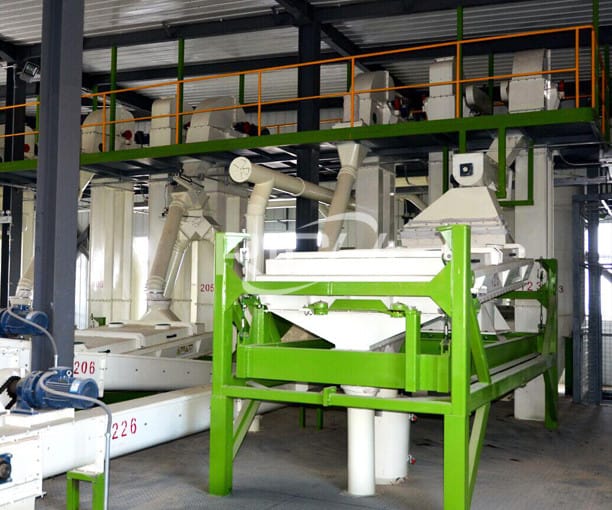

Screen Good Pellets to Meet End Needs
In this section, the bucket elevator raises the cooled hemp pellets to a certain height degree, then enter the screener. The sieved pellets enter the finished product silo, the powder enters the sawdust pellet machine through the pipeline to repress the pellets.
Packing Section
8

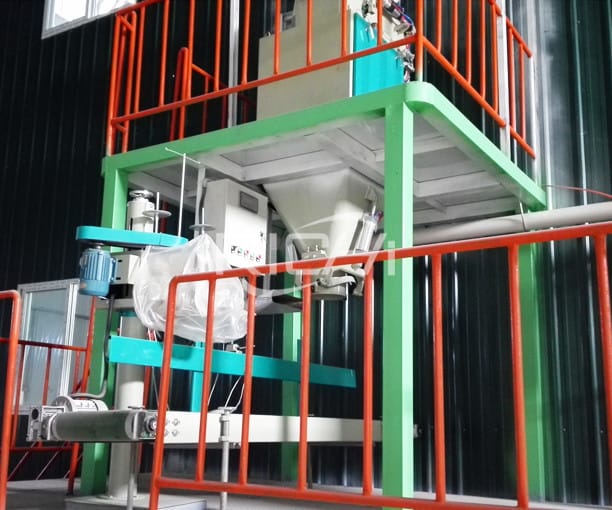

Pack Your Bags
After the hemp pellets are cooled down, after the molded granules reach a certain hardness, they are bagged, packaged, and sewn into the warehouse for storage.It should be packed in water-impermeable plastic woven bags, and the weight deviation should not exceed 0.5% of the net weight.Now many biomass pellet manufacturers choose tonnage scales to pack the finished pellets.
Storage Section
9

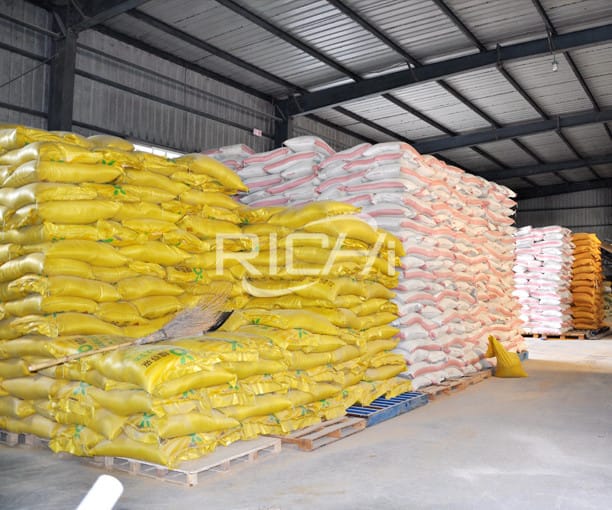

Pellet Storage
It is not allowed to touch the ground directly. It is better to lay a layer of wooden shelves below. The stacking should not be too high, and the distance from the roof should not be less than 50cm. The outdoor storage should have rainproof facilities, and the rainproof cloth should be opened to dry in sunny weather.
Dust Removal System
10

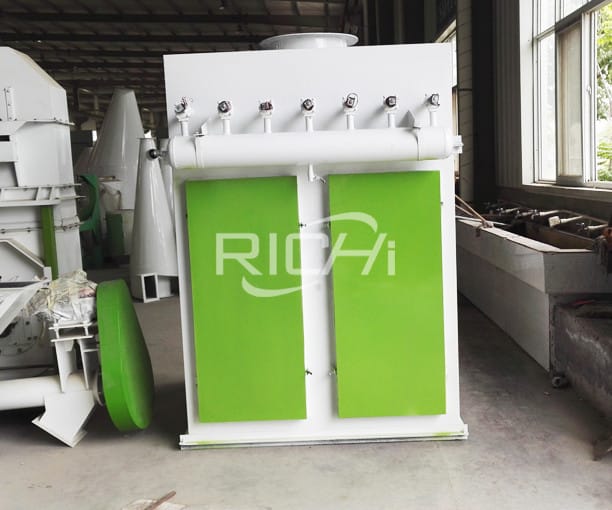

Dust Aspiration
The dust generated in the hemp pellet production process is recycled for granulation, reducing waste and increasing revenue.
Electronic Control System
11

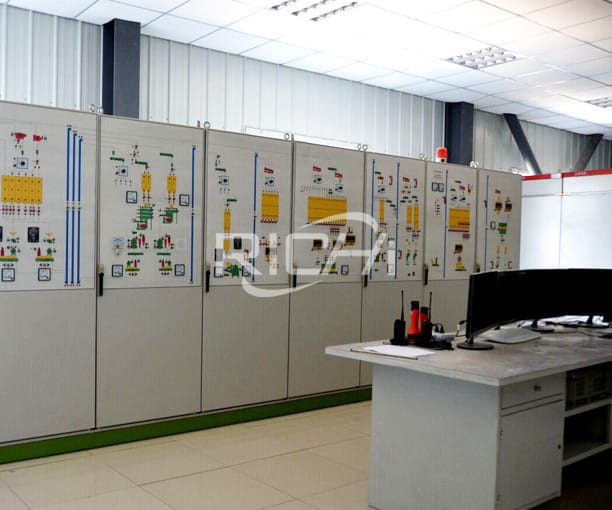

Fully Automatic Control
PLC is designed according to the requirement of the customer. It can also control automation level.Our PLC is provided by the top international brands in the industrial automation field such as Siemens, Schneider and Delta.
The Mian Equipments of Complete Biomass Pellet Production Line
RICHI can provide the complete turnkey project biomass wood pellet production line, from design to install . Whether you want to produce wood pellet, sawdust pellet ,rice husk pellet, EFB pellet ，grass pellet or organic fertilizer pellet, the capacity is 1-100TPH can be choose. The main machine is wood chipper，wood crusher, drum dryer, wood pellet machine , cooling machine ,rotary sereener and others . Looking forward to your consultation !
-
Case About this
Typical Biomass Wood Pellet Line Turnkey ProjectName:The 12T/H Automatic Hemp Pellet Line
Send Inquiry
Country: America
Pellet Size:1-12mm
Main Material: Hemp
Total Power:977KW
Main Machines: Forage Hammer Mill*90KW,Hemp Mixer*1000KG/BATCH, Hemp Pellet Machine*160KW,Cooling Machine, Crumbler Machine, Screen Machine, Automatic Packing Machine and other equipment.
-
Project Summary
The hemp pellet mills in this project were developed for top throughput capacities in compound feed pelleting, and can process even difficult-to-press raw materials which have a high fat or fiber content. The machine sets new standards in terms of efficiency and performance: substantially lower energy consumption in comparison to conventional pellet mills, production capacities of up to 20 t/h, motor ratings of 220 or 260 kW and a customer-oriented design are just some of the advantages of this RICHI machine. However, thanks to the extremely compact design, the machine takes up very little space(workshop size:16m*7m*7.5m)– it delivers twice as much capacity with the same footprint as conventional pellet mills.
Send Inquiry
-
Case About this
Typical Biomass Wood Pellet Line Turnkey ProjectName: 2T/H Automatic Wood Pellet Line
Send Inquiry
Country: Canada
Pellet Size:6-12mm
Main Material: 50% moisture wood chips , 50% moisture sawdust
Total Power:385KW
Main Machines: Wood Chipper, Wood Hammer Mill Crusher, Shifter, Wood Dryer, Storage Bin, Pellet Machine, Cooler, Auto-packing Machine and other auxiliary equipment.
-
Project Summary
In this project cooperation, exquisite process design and strong production team are very critical factors to impress customers. The final biomass pellets of the project are mainly used for export, and have high quality requirements. Environmental protection and energy saving are integrated into the design of the plan. The dust removal system runs through the entire production link, so as to achieve zero pollution and zero emissions, and meet the local regulations of customers.
Send Inquiry
- On March 15, 2020, After many rounds of technical negotiation and production line planning, the customer finalized the cooperation with RICHI;
- According to the actual situation of the customer, from on-site survey to equipment selection, to installation and commissioning, RICHI provides an customized solution.
- RICHI has always been upholding the spirit of craftsman at the stages of machine process, our strict requirements on quality are ultimately aimed at the long-term and trouble-free operation of the equipment to create maximum benefits for customers;
- After the quality test before delivery, the 12t/h production line equipments are officially shipped through professional packaging and modular transportation solutions;
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- RICHI dispatched 2 professional technicians to assist the construction of the site infrastructure, equipment installation and commissioning, and trial operation of the entire production line;
- After 40 days of installation, the project was completed successfully, then we provided the customer with the factory certificate, inspection report and other documents.
- RICHI will continue to provide a series of after-sales services such as one-year warranty, maintenance and accessories, and quickly responds to customer feedback during project operation.
- In August 2008, RICHI stands out from the competition with unique corporate culture, and advantages in products, services, and prices, and successfully undertakes the turnkey project of 10 tons cattle feed pellet line.;
- After fully understanding the actual situation of the customer site, after careful discussion with customer, the design of 2-3T wood sawdust line was determined.
- RICHI has always been upholding the spirit of craftsman at the stages of machine process, our strict requirements on quality are ultimately aimed at the long-term and trouble-free operation of the equipment to create maximum benefits for customers;
- After the quality test before delivery, the 2-3t/h production line equipments are officially shipped through professional packaging and modular transportation solutions;
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- RICHI dispatched 1 professional technicians to assist the construction of the site infrastructure, equipment installation and commissioning, and trial operation of the entire production line;
- After 60 days of installation, the project was completed successfully, then we provided the customer with the factory certificate, inspection report and other documents.
- RICHI will continue to provide a series of after-sales services such as one-year warranty, maintenance and accessories, and quickly responds to customer feedback during project operation.
