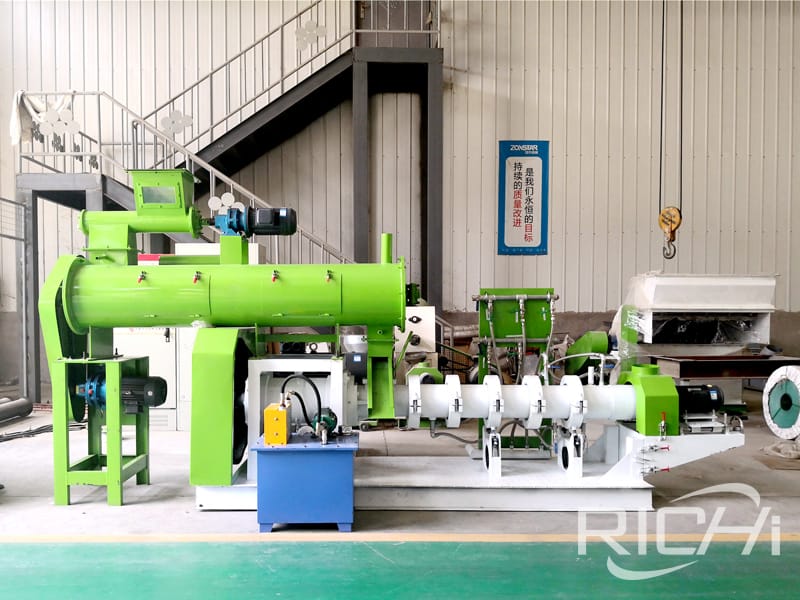

DSP Aquatic Feed Extruder For Sale

With the rapid development of the feed industry, the research on feed processing technology has become more and more in-depth. People have paid more and more attention to the application of extruded technology in aquatic feed production line, and the superiority of extruded aquatic feed has gradually been recognized by people.

1.Application of DSP aquatic feed extruder

The automatic control direct cooling extruder,specialized for production of ornamental fish, pets and aquatic extruded feed.

2.Product introduction:

(1)Guarantee the quality of extruded pellets

①A new type of conditioner has been equipped to make the final feed maturing degree and uniformity better than the traditional ways.

②Multi-screw coaxial extruding, feed output is increased obviously, abrasion of wearing parts is more uniform, discharging is smoother and particle uniformity is better.

③When producing different particles, the quantity and speed of cutter can be adjusted according to needs, and cutting quality is easier to control.

④The self-adjusting constant gap cutting system ensures the appearance quality of the products, solving the appearance quality problems caused by cutter abrasion.

(2)Good control performance

①The adaptability of different feed formulations is improved compared with the conventional condition in the industry, and the formula sensitivity is low.

②Easy to disassemble and assemble ring die, fast cleaning, save operation time and reduce cross contamination.

③Touch screen control system reduces the dependence on the operators' skills.

(3)Stable and reliable

①Use imported bearings, high-precision gear transmission, circular lubrication and cooling system, overload protection system, etc., to make the machine run stably and reliably.

②Screw, bushing, mould are made of alloy steel with good wear resistance and long service life.

③Use a kind of general-purpose equipment to produce floating feed and sinkable feed according to the demands. The auxiliary bulk density control system can be selected for the production of high bulk density extruded pellets.

3.Technical parameters:

Type Model：DSP200-B

Main motor power KW：132

Output（t/h）：3-4

Gelatinization：≥80%

Pellet diameter（mm）：1-10

Feeder power(kw)：2.2

Screw diameter(mm)：Φ195

Cutter power(kw)：3.0-4.0

Conditioner power(kw)：5.5

4. Aquatic extruded feed plant machine and process

(1)Processing flow

Cleaning——Grinding——1st Dosing——Superfine grinding——2nd Dosing——Extrusion/Pelleting——Drying——Screening——Liquid Adding & Coating——Cooling——Packaging

(2)Main machine in aquatic feed line

fish feed hammer mill, fish food pellet extruder machine,feed mixing machine,counter-flow feed pellet cooler, scraper conveyor,box cylinder pulse dust remover, vibrating screen classifier,multi-pass convection belt dryer,spraying machine, intermittent liquid adding machine,automatic bagging system,electric control cabinet,etc.

(3)How to make aquatic extruded feed?

①Fish Feed Pellet Production Line

②Shrimp Feed Pellet Production Line

③Crab Feed Pellet Production Line

For more aquatic feed(floating fish,sinking fish,etc.),contact Richi Machinery online.

5.Classic cases of aquatic feed extruder plant

(1)United Kingdom 100-150KG/H Fish Feed Pellet Production Line

(2)120-150KG/H Fish Extruded Feed Production Plant in Puerto Rico

(3)Ecuador 1-2T/H High-end Shrimp Feed Pellet Processing Plant

(4)Bolivia 1T/H Aquatic Feed Pellet Plant

(5) Thailand 1T/H sinking fish feed pellet extruder line

(6) Uzbekistan 5T/H sinking fish feed line

(7) Ukraine 100-150kg/h floating fish feed extruder machine plant

(8) Uzbekistan 1-1.2T/H floating fish feed production line

(9) Nigeria 150kg/h fish feed extruder line

(10) Honduras mini fish feed extruder machine

(11)...

6.More types of aquatic feed extruder for you :

(1)Dry type small fish feed extruder,capacity : 150kg/h,main power: 15kw

(2)Wet type fish fodder mill extruder,capacity : 1-1.2t/h,main power: 75kw

(3)Floating fish feed extruder machine,capacity : 2t/h,main power: 132kw
