How much does a ring die wood pellet making machine cost?

1.How much is a ring die wood pellet machine?

How much does a ring die wood pellet machine cost? What's wood pellet making machine?The main drive of the ring die wood pelleting machine adopts high-precision gear transmission, and the ring die adopts quick-release hoop type. The transmission part of the whole wood pellet mill machine uses high-quality Swiss bearings to ensure high efficiency, stability and low noise. The feeding adopts frequency conversion speed regulation to ensure uniform feeding. The door cover is equipped with a strong feeder and a compensating snake-shaped spring coupling with an international advanced level. It has a novel, compact, safe, low-noise, and low-fault performance.

Richi Machienry MZLH series ring die wood pellet making machine price:

2.How does a wood pellet making machine work?

(1)On the top of the wood pellet making machine with a anti-caking bin. Inside the bin, there have two rollers for breaking the sawdust to avoid becoming cake. And the bin can keep ring die wood pellet making machine working more smoothly

(2)Because the sawdust is too light, so it is difficult to enter into the wood pellet machine's pelletizing chamber , so we add a force feeder here, to make the wood pellet manufacturing process normal working .

(3)Through the pressure between wood pelleting machine ring die and rollers, to make pellets. After pelletizing , the wood pellets temperature is high about 70-80 ℃ . And have 98 % qualified wood pellets, 2 % powder .

(4)To control the length of final pellets , means through adjust the distance between cutter and ring die to get the different length of wood pellets .

(5)When the ring die wood pellet manufacturing machine running , inside the pelletizing chamber ,the temperature is very high, and the moisture of wood sawdust enter into the wood pellet making machine's pellet chamber is 15%-17% ,so it will produce a lot of steam . In order to keep the ring die wood pellet maker machine good working, so we open a hole here, to connect with draught fan and cyclone, to exchange the steam inside the chamber and also reduce the temperature in the chamber .

3. Features of Ring Die Wood Pellet Granulator Machine

(1) The Richi Machinery wood pelletizer adopts high-precision involute cylindrical helical gears for direct transmission, and the transmission efficiency is as high as 98%.

(2) The tooth surface of Richi Machinery wood pellet maker is carburized, and the carburized layer is 2.4mm deep to enhance the wear resistance and prolong the service life of the parts; the hard tooth surface is processed by the silent fine grinding and trimming process to make the operation Quieter and smoother.

(3) The main shaft and conjoined hollow shaft of Richi Machinery wood pellet mill machine are made of German imported alloy structural steel through water forging, rough turning, heat treatment, fine turning and fine grinding. The structure is reasonable and the hardness is uniform, which improves the fatigue resistance of the parts. And wear resistance, provide more reliable guarantee for safe operation.

(4) The main box of Richi Machinery wood pellet making machine is precision-casted with high-quality steel, with uniform thickness and compact structure. It is then carefully processed by Swiss imported CNC machining center with zero error in machining accuracy. Provide stronger support for normal operation.

(5) The bearings and oil seals used in the transmission part of the Richi Machinery wood pellet press machine adopt high-precision bearings imported from Japan and wear-resistant and temperature-resistant fluorine rubber oil seals imported from the United States, and a lubricating oil return system is specially added, and the oil circuit is circulated and cooled, and the oil is automatically supplied regularly. lubricating. Ensure that the bearings are fully lubricated and the operation is safer and more reliable.

(6) The bearings used in the Richi Machinery pellet forming system are all high-quality silent bearings, and a circulating cooling and lubricating system is added, so that the bearing has a longer service life and safer operation.

(7) Richi Machinery wood pellet making machine ring die is made of stainless high nickel steel precision work, unique compression ratio design is reasonable, so that the product quality is better, the life of the ring die is longer, and the production cost is minimized.

(8) RICHI wood pellet manufacturing machine is specially used for processing biomass wood pellets. We have our own production base. The ring die sawdust pelletizer is the most stable, most reliable, most efficient, safest, and most economical model that has undergone hundreds of tests and demonstrations in the factory. The equipment can achieve twenty-four Hours of continuous operation.

4. Biomass wood pellet making raw materials suitable for RICHI biomass wood pelleting machinery

The raw material for making biomass wood fuel pellets are very wide, such as wood sawdust, wood shavings, bark, sanding powder, waste wood, branch wood produced in wood processing and wood-based panel production; all kinds of straws produced after crops are harvested; and other kinds of materials. Burning biomass is the raw material, without adding any adhesives, and through ring die wood pelletizing equipment processing, it can be used to produce biomass pellet fuel from wood.

5. Our hot selling wood pellet mill making machine use in the world

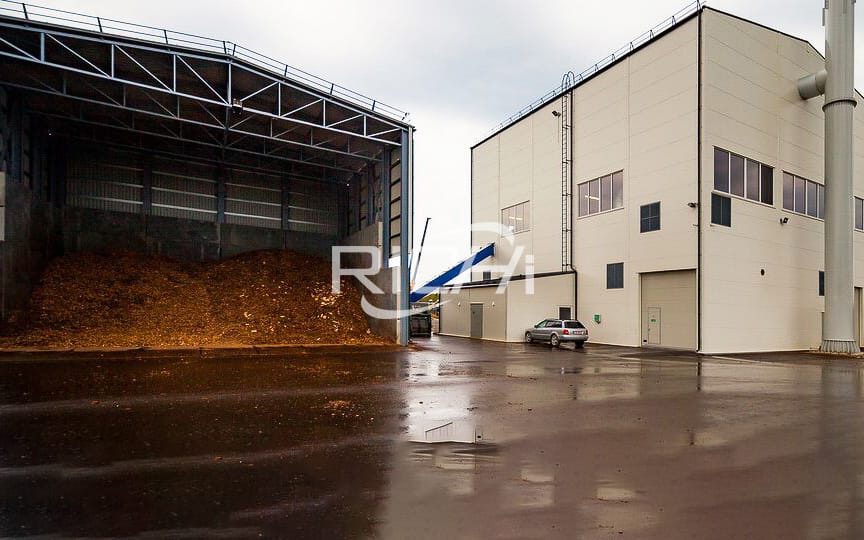

Ring die wood pellet making machine for sale in Indonesia

(Click to see more details of this wood pellet machine project)

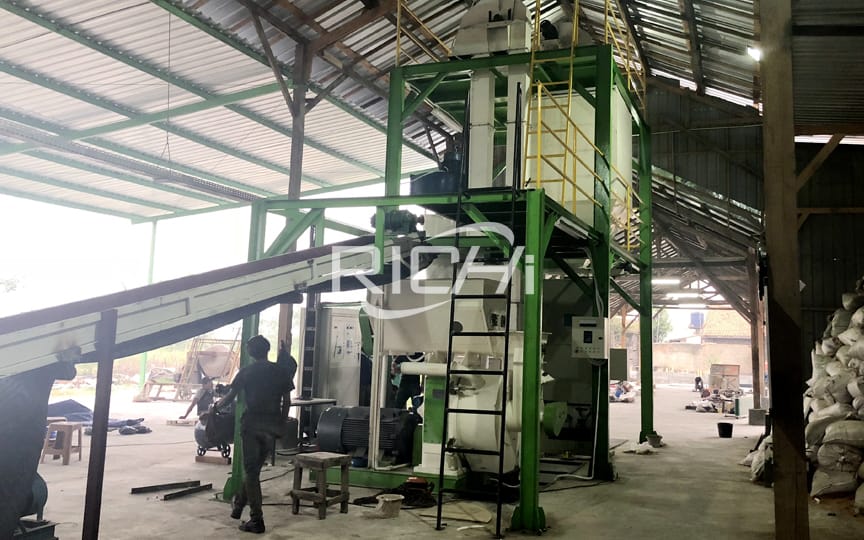

Ring die wood pellet press machine for sale in Iceland

(Click to see more details of this wood pellet machine project)

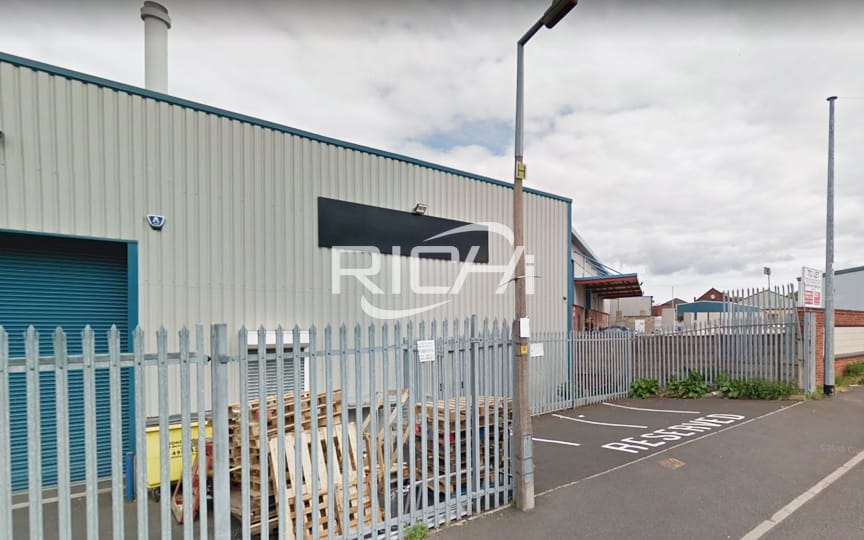

Ring die wood pellet maker for sale in Canada

(Click to see more details of this wood pellet machine project)

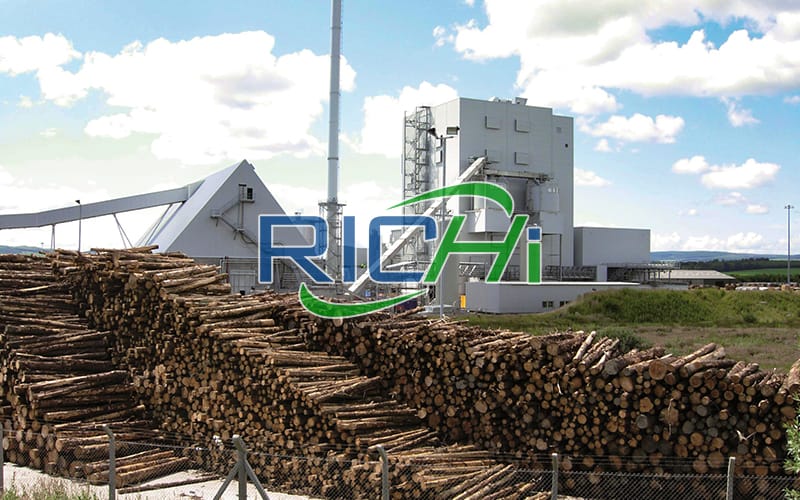

Ring die wood pellet manufacturing machine for sale in Netherlands

(Click to see more details of this wood pellet machine project)

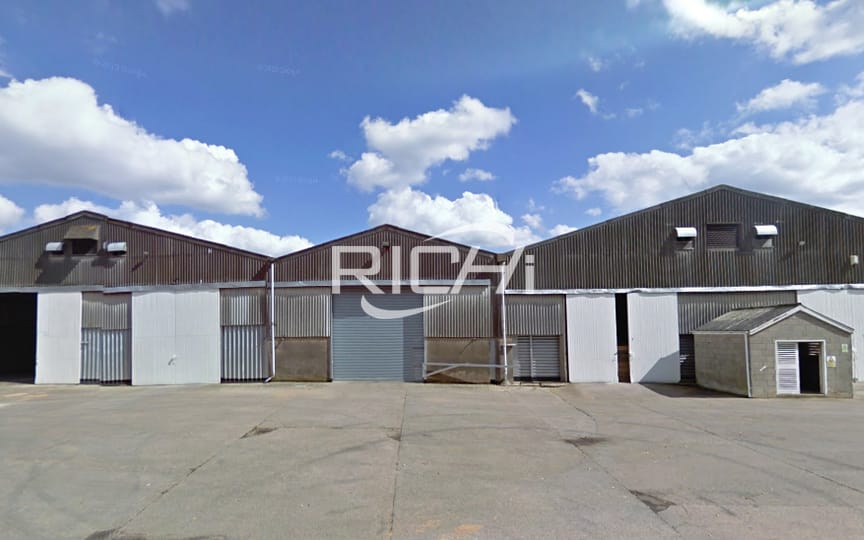

Ring die commercial wood pellet mill for sale in Austria

(Click to see more details of this wood pellet machine project)

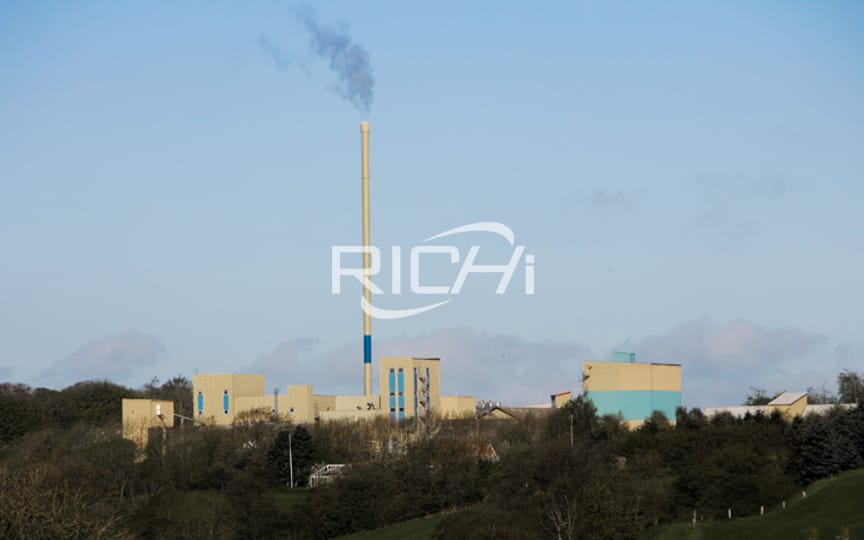

Ring die wood pelletizer for sale in Mexico

(Click to see more details of this wood pellet machine project)

6.How to make your own wood pellet making machine?

How to make a wood pellet manufacturing machine?Occasionally, customers will ask us this question. It is very difficult to manufacture a wood pellet press granulator by yourself. It not only requires understanding the working principle of the ring die wood pellet granulator machine, but also requires sophisticated equipment and high-quality raw materials, but also requires professional craftsmanship. Otherwise, why do different wood pellet mill manufacturers produce ring die horizontal wood pelletizers with varies quality?

In fact, we also understand that some customers want to save costs and make simple wood pellet pressing equipment by themselves, but there are many parts of the wood pelletizer machine, which require sophisticated instruments to manufacture, and the quality of the wood pelletizer processed by professional wood pellet machine manufacturers will be very good, the service life is also longer. If you make a simple wood pelletizer by yourself, it will not only take time, but it will also be very prone to failure. Let me give you a piece of data. According to the latest statistics of Richi Machinery, the fault-free operation time of our ring die wood pellet manufacturing machine is up to thousands of hours. Unless the customer operates improperly, the failure rate of RICHI wood pellet processing machine is very low. Moreover, the cycle of replacing the ring die is also longer.

7.Why RICHI is China professional biomass wood pellet making machine manufacturer?

(1)Has professional QC workshop to strictly control the quality of every set of biomass wood fuel pellet milling machine and every single spare part.

(2)Can customize the ce high quality ring die wood pellet mill machine motor to suit your local voltage and frequency. You won't worry about if the wood pellet maker machine does not match your local electricity.

(3)Has whole-hearted service team to offer you most suitable complete wood pellet making machine plans and considerate and satisfactory after-sales service.

(4)Can offer complete wood pellet mill machine plant installation and staff training to customers, so that your workers can operate the pellet plant correctly.

(5)Has experienced and skillful R&D team to keep improving the biomass wood pelleting machines. Every wood pellet pressing machine you buy from RICHI is the latest wonderful model.
