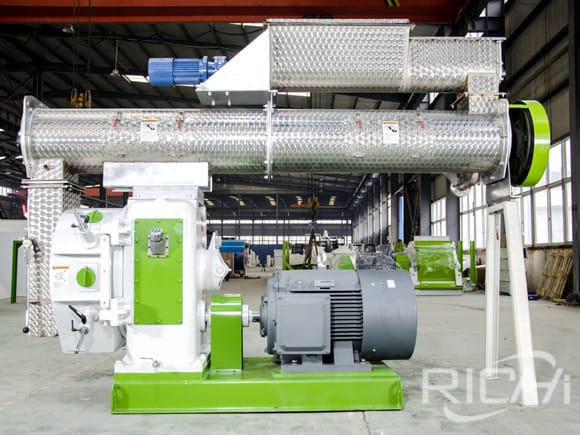

RICHI SZLH-508 Feed Machine is based on crushed materials such as corn, soybean meal, and wheat, It can be used for livestock and poultry feed, ruminant feed, fish feed. It is widely used in grain and feed processing plants, livestock farms, feed factory.
The advantages of feed pellet:
(1)the heat generated in conditioning and pelleting make the feedstuffs more digestible by breaking down the starches,
(2)Kill salmonella in feed,can protect the animal growth.
(3)The pelleting minimizes waste during the eating process. Aviod animal picky eaters.
(4)Easy storage and transportation,Liquidity is good,easy to manage.
The Feeder and conditioner, the feeding chute adopt stainless steel material,structural durability.
The variable frequency feeding system adopts the electromagnetic valve speed control, which is convenient for speed adjustment and uniform feeding.
The host drive with high precision gear drive,the ring die adopt anchorear type and disassembly is convenient.
Security,has a strong magnetic magnet and overload protection device such as a safe,safe and reliable.
Compace structure,easy operation,high output,long service life, less consumption,easy to use, maintenance and quick.
The optimized pelletizing chamber structure ensures the that the pressing material is evenly divided and maximizes the working potential of the pelletizer.
RICHI Pellet machine is mainly suitable for the production of all kinds of different raw material pellets. It is mainly composed of drive system, feeding system, pelletizing system, etc. Pls cleck the every part to understand RICHI pellet machine.
The material is transported into the feeder through the frequency speed regulating feeder speed regulating feeder.
This model adopts the advanced variable frequency motor feeding,with overload protection devices and machines outside the nesting organization;Stainless steel feeder of feed pellet machine:
B.Stainless steel material
C.Siemens electric motor

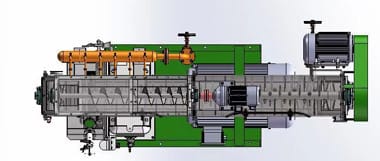

Ring die type pellet machine is with conditioner. The conditioner is made by totally 100% stainless steel.The function of conditioner :
It will be connected with boiler, the steam will be supply by the steam boiler.raw materials of feed and steam will be mixed in the conditioner.
The aim of the hot steam when mixed with the raw materials in the conditioner:The function of boiler:
(2): Hot steam will cook the materials, to make the final feed more easily digestiable
(3): Hot steam will make the materials more soft, to make the materials more easily to be pressed into pellets. Increase the final pellet shaping amount so increase the production capacity.
(4): Hot team will add 2% moisture into materials, the capacity will increase about 5%-10% than without boiler
(5): Hot steam will cook the materials, make the feed more delicious, animal will prefer to eat. The fuel of boiler: can be Oil, gas, biomass, coal, electricity etc.

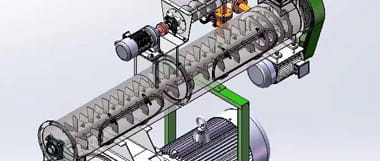

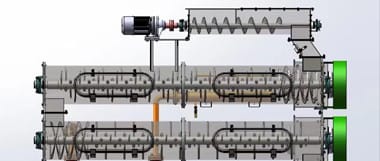

The paddle will mix the raw material of feed with hot steam(produced from boiler).
RICHI MACHINERY’S paddles are Forged, cut directly from steel plates, more wear-resistant; many supplier ‘s paddles on their pellet machine in the market are belong to cast, not strong and durable;
The arrangement of paddles, arranged at a certain angle, and fed at a uniform speed, to ensure the full mixing of materials and steam . Improve the effect of tempering/conditioning.
Paddle Model：Single-shaft paddle
Paddle Material: Stainless steel , painted 201, unpainted 304
Paddle Types: There are one layer conditioner, two layer conditioners, three layer conditioners , three types pellet machine, we will suggest based on different ‘s customer final aimed kinds of pellet.
Siemens is one of the world's largest electrical and electronics companies, Siemens electric motors are synonymous with quality, innovation and the highest efficiency.
High protection level to ensure the safety and reliability for users.
For RICHI , the higher production costs are used to ensure better product quality. And can ensure the service life of the feed pellet machine and more stable operation.
The Power of Conditioner:1.5KW
The Power of Main Machine:22KW
The Voltage: 220v/ 380v/415v , 50hz or 60hz, 3phase , can be choosed
Imported hig-quality spindle bearings SKF bearings.
Pelletmachine is the key equipment in poultry and animal feed pellet producing process.
The ring die mould is the heart part of pellet mill machine, and it's one the most easy wearing spare parts as well.
This model is available in a variety of aperture between Φ1.5-Φ12 ring mold,the user can arbitrarily chosen according to different needs,in order to obtain the best technical and economic benefits;
RICHI Ring die of feed pellet machine used the 40CrMnTi, the carburizing heat treatment can improve abrasive resistance of ring die, the stainless steel doesn’t corrode easily.
About the final feed pellet size of feed pellet machine.
1.Starter/Middle Chicken , 1.5-3mm, suitable for chicken 10 10-30days
2.Big Chicken . 3.5-4.0mm， suitable for chicken in 30-45days
3.Layers Powder feeds also can feed small baby chicks
4.Cattle/Goat 5.0-8.0mm without grass in recipe
5.Cattle/Goat 5.0-8.0mm with grass in recipe

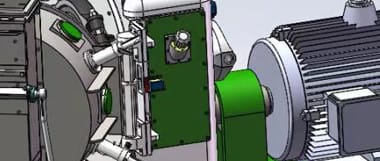

Imported gear box, high processing accuracy, high transmission efficiency, low energy consumption.
This model of feed pellet machine uses one-motor straight gear drive system,with the ideal gear ratio,drive torque, stable transmission, high output, low noise, easy operation and maintenance;
RICHI gearbox of feed pellet machine include the spindle, empty shaft, toothed shaft, 5 set SKF bearings, large gear, safety pin assembly. In addition, RICHI feed pellet machine is equipped with the door opening and power-off protection device, the cylinder cover , Coupling protection cover, Safety pin protection cover ,etc. RICHI will do our best to protect the safety of equipment and personnel.

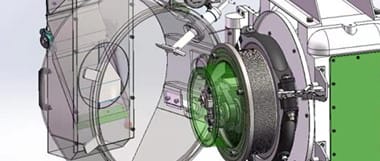

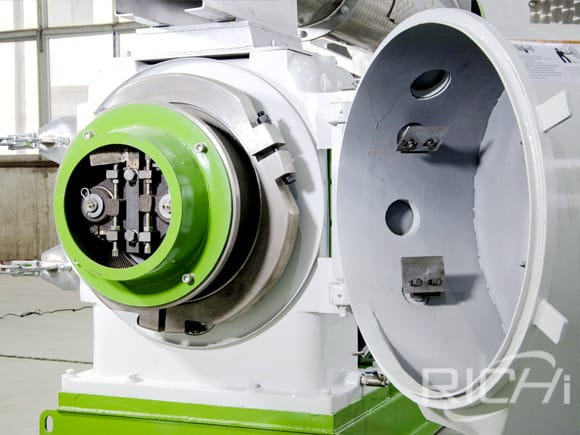

RICHI pelletizing chamber of feed pellet machine used for pelletizing feed pellet , RICHI optimized structure of the granulating chamber ensures the uniformity of the material and maximizes the working potential of the granulating machine.

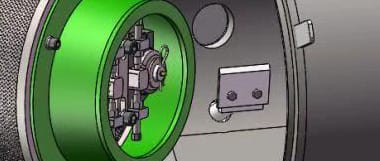

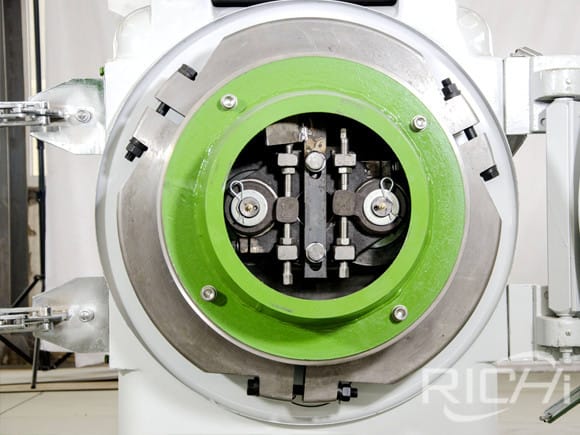

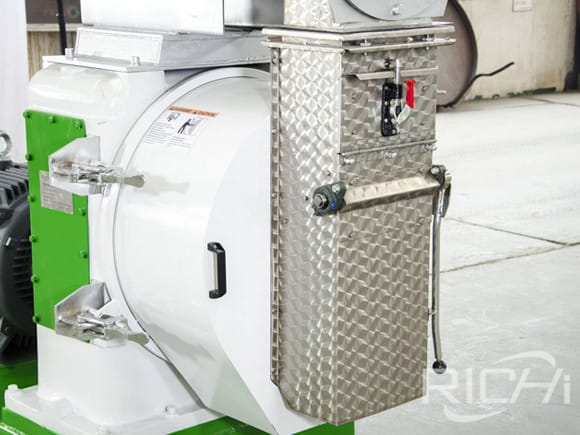

The pelletizing chamber include the roller assembly, stainless steel ring die, cutter assembly, feed chute,Manuel feed inlet, etc.
The roller assembly - Made of 40CrMnTi, the structure of the eccentric shaft can better adjust the distance between the ring die and press roller.
The ring die - 304 stainless steel , corrosion resistance, Full automatic CNC ring die drilling machine and vacuum heat treatment technology.
The cutter assembly can control the length of final pellet and the scraper can clean up the reduce of the empty shaft, avoid material deterioration and contamination of other materials.
There is a separate electric control cabinet beside each RICHI feed pellet machine, this control cabinet can independently control the operation of the pellet machine and issue instruction. In case of emergency, the pellet machine can be shut down separately for maintenance without affecting the normal operation of other equipment.

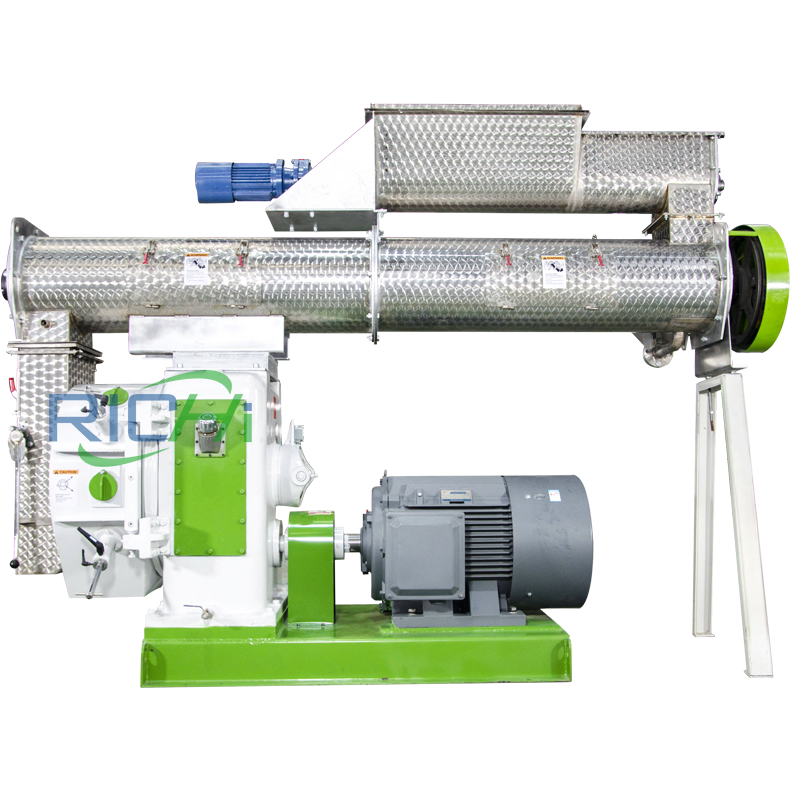

About SZLH-508 Feed Machine:
With on-site electric control cabinet,oiling machine. Siemens Motor, SKF bearing.
Size of conditioner:Length 3000mm*Dia 508mm
Rang of Final Pellet:1.0-12mm
Ring Die Inter Diameter:508mm
|Model||Capacity(TPH)||Main Motor Power(kw)||Feeder Motor Power(kw)||Conditioner Power(kw)||Dia.of Ring Die(mm)||Final Pellet(mm)|
