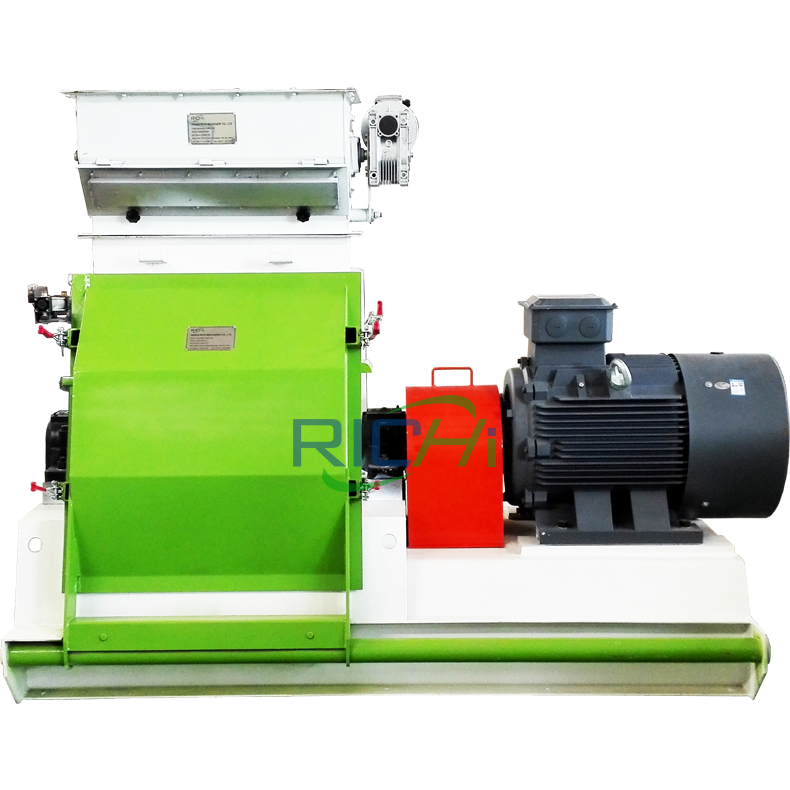

SFSP Feed Hammer Mill

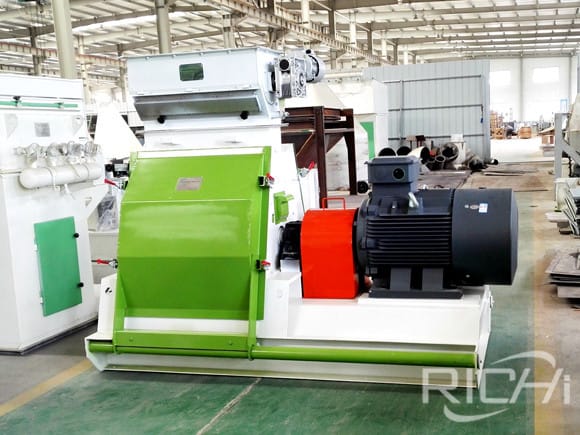

SFSP Feed Hammer Mill

The feed hammer mill adopts hammer blade design, which can be used to crush common feed materials, such as corn, wheat or soybean, etc. Because of the high output, it is usually used for crushing operations in large farms or feed mills. It can be used alone, but it is generally installed in a feed pellet production line and used in conjunction with other feed processing machinery (feed mixing machine, feed pellet machine).

Mode:
SFSP66*60b

Capacity:
6-9TPH

Main Power:
75KW

The raw materials are fed from the top of the animal feed hammer mill. Under the action of high-speed rotary hammer and the friction of the sieve plate, the raw materials are gradually crushed, and under the action of centrifugal force, they pass through the sieve holes and are discharged from the outlet of the feed hammer mill base.

Technical Features

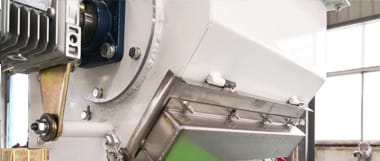

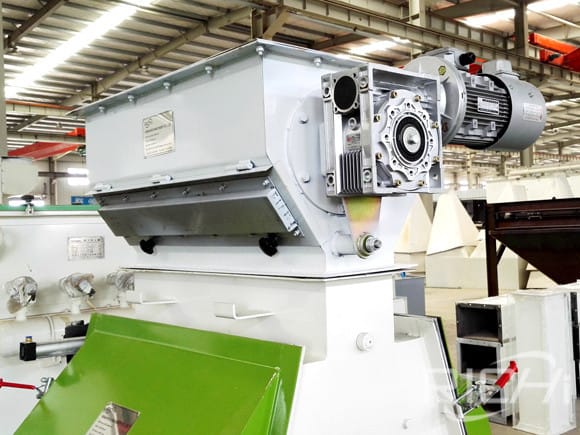

frequency feeder
Novel and Efficient

RICHI's technical team has innovated the design of the feed inlet, which can quickly, uniformly and accurately feed during the production process.

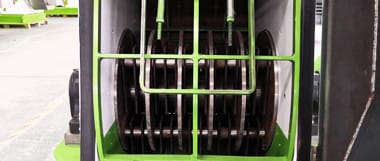

hammer of feed hammer mill
Hard and Wear-resistant Hammer

Made of high-standard 65mn steel, the hardness is increased after quenching. Tungsten carbide is used at both corners of the hammer head to improve wear resistance.

portable door lock
Higher Portability

Built-in self-lock makes the cover flexible and safe.

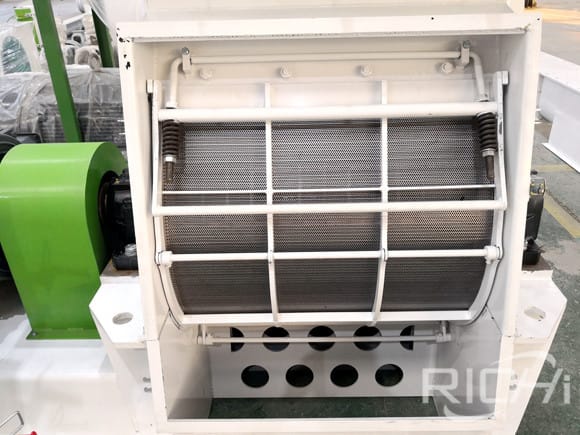

feed hammer mill sieve
Hard and Wear-resistant Hammer

Made of high-standard 65mn steel, the hardness is increased after quenching. Tungsten carbide is used at both corners of the hammer head to improve wear resistance.

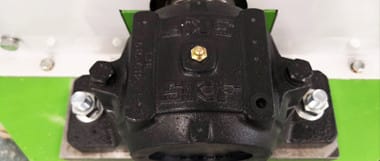

feed hammer mill bearing
Rugged and Durable

Our equipment is processed with high-standard steel, and the thickness of the body is 20% higher than the same industry, which greatly improves the service life.

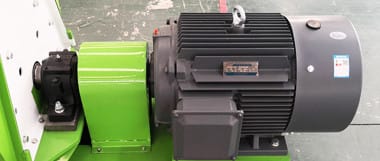

feed hammer mill motor
Stable and Long Life

Our feed hammer mill use high-standard Siemens motors, which can fully guarantee the stability of the equipment.

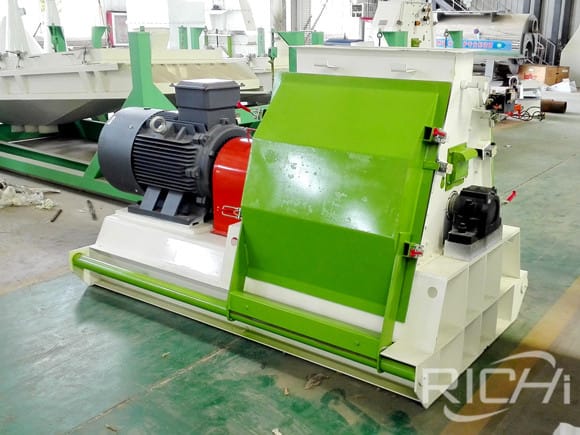

Product Display

The quality and know how inherent in animal feed hammer mill are backed by over 25 years’ experience in the pelletizing solution and other related industries around the world. The requirements for grinding a large number of special products have led to the development of feed hammer mill that can be adapted to almost any application, regardless of whether coarse or fine grinding is required, e.g. raw materials for the production of animal feed, fish feed, pet food, etc.

→ Please contact us if you are interested
  • SFSP Feed Hammer Mill
  • SFSP Feed Hammer Mill
  • SFSP Feed Hammer Mill
  • SFSP Feed Hammer Mill

Technical Parameters

Model SFSP56*40a SFSP56*40b SFSP66*60a SFSP66*60b SFSP66*80a SFSP66*80b SFSP66*100 SFSP138*30E SFSP138*40E
Power 30kw 37kw 55kw 75kw 90kw 110kw 132kw 110/132kw 132/160kw
Capacity 3-5T/H 4-6T/H 5-8T/H 6-9T/H 8-10T/H 10-13T/H 12-16T/H 15-20T/H 18-25T/H
Speed 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 1440r/min 1440r/min
