Small scale 1 ton per hour broiler poultry chicken feed pellet making plant machine for sale
Small scale 1 ton per hour broiler poultry chicken feed pellet making plant,can also be called as simple home use 1t/h broiler chicken feed pellet making line,this scale is generally used for chicken farms and small broiler feed plants.
1、Animal feed manufacturing process machine of 1 tph broiler poultry feed plant

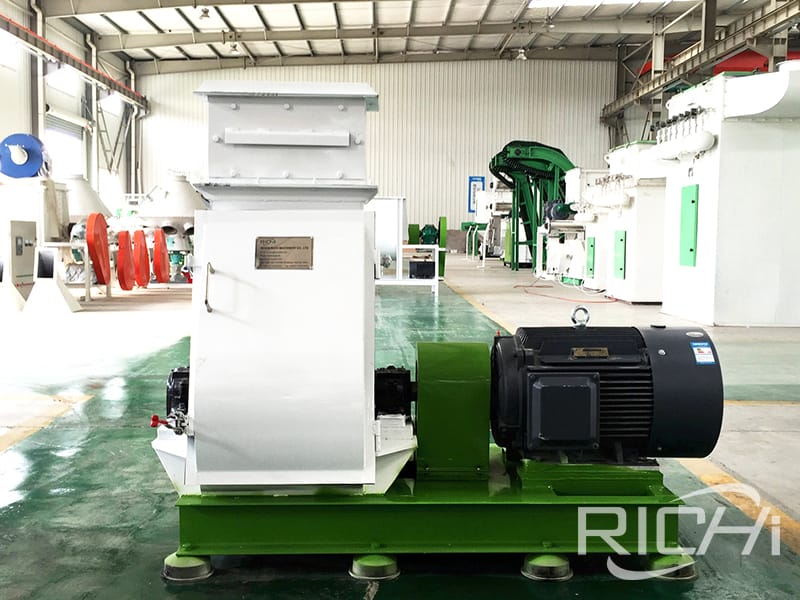

The main equipment of a complete 1 ton per hour broiler feed pellet production line includes 37kw chicken feed hammer mill grinder, poultry farming feed pellet mill machine, 1 ton feed mixer, counter-flow feed pellet cooler, crumbler machine, pulse dust collector, vibrating screen, packing machine, etc.

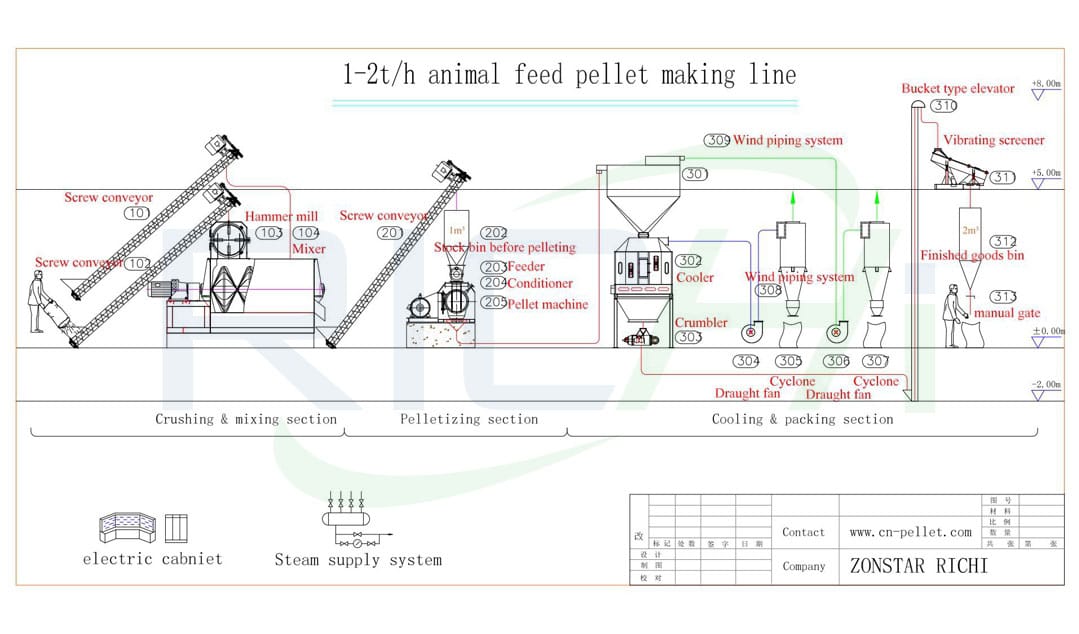

2、Process technology of 1 ton per hour broiler poultry chicken feed pellet making plant
(1)Material Receive System
Easy to operate,every inlet has one impulse dust collector,keep environment clean,protect workers healthy.
(2)Crushing System
Pre-cleaner clean broiler feed raw material ,then after magnet separator,storage bin and feeder,material goes into crusher to become powder.
(3)Batching & Mixing System
After crushing,original broiler powder and some broiler feed premix will be weighed in batching scale according to proportional,then go down to mixer to reach uniformity.
(4)Pelleting&Cooling System

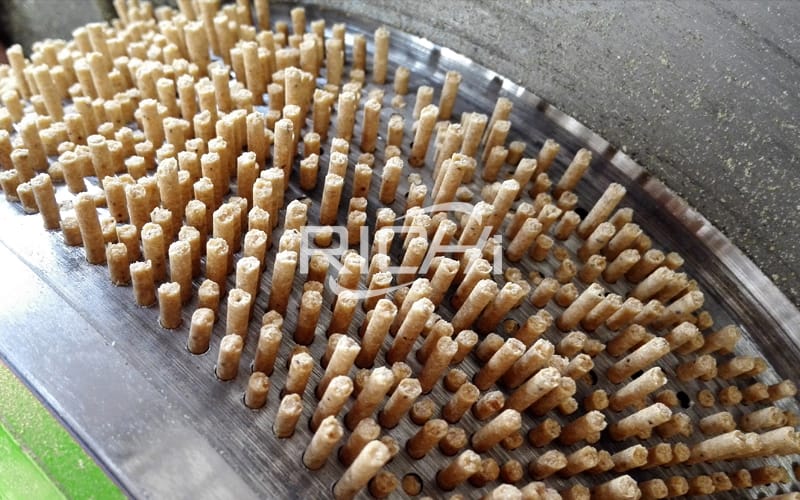

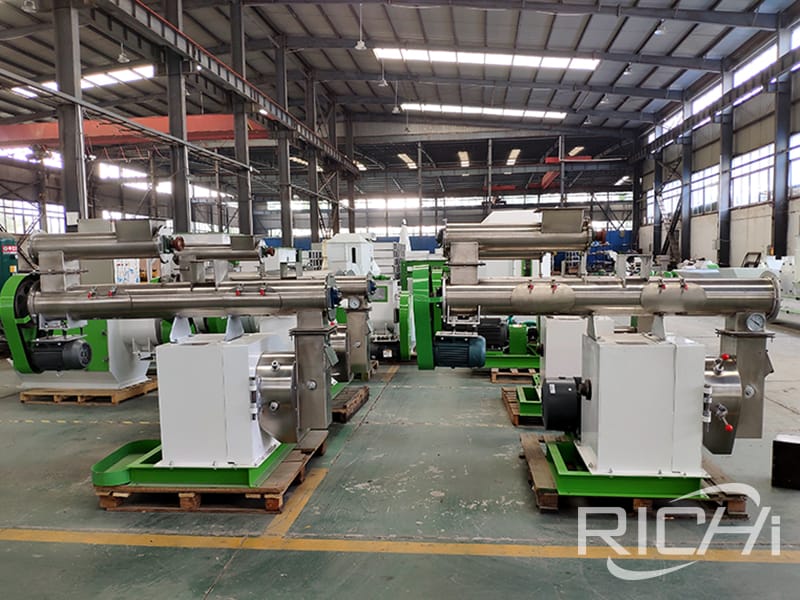

After using high temperature steam to make raw material curing, the materials will be made to broiler feed pellet through pellet press machine. Then the broiler feed pellet will be cooled down by broiler feed pellet cooler.
(5)Packing System
The finish product contain pellet of normal size,smaller size and bigger size.By use grading sieve,we can get normal size pellet.
(6)Plant Control system
PLC is designed as per the requirement of the customer. It can also control automation level.
3. Calculation method of daily feed intake of broilers
1-10 days: the first day: 6g, then increase by 4g per day, such as: 7 days: 30g
11-20 days: (day old-2)/10*50 such as: 15 days: 65g
21-30 days: (day old-1)/10*50 such as: 125g for 26 days
31-40 days: day old/10*50 such as: 175g in 35 days
40-50 days old: 200g
Under normal circumstances, feed with full price feed, each chicken eats a total of 4.5kg of feed, and the average weight can reach 2.5kg. During normal breeding, the chickens should not exceed the feed intake of the day. In the feeding and management process, it is necessary to appropriately limit its feed intake, otherwise the chickens will be easy to get sick or difficult to control after the disease.
As we all know, feeding broilers requires a compound feed with a reasonable ratio and perfect functions. In the design of the proportion of broiler feed, farmers must fully pay attention to the dialectical relationship of various nutrients, and pay attention to the balance of various ingredients, in order to prepare a balanced feed with appropriate nutrition and competitive price.
(1) Feed formula of broiler chicks
① Corn 55.3%, soybean meal 38%, calcium hydrogen phosphate 1.4%, stone powder 1%, table salt 0.3%, oil 3%, additives 1%.
② Corn 54.2%, soybean meal 34%, rapeseed meal 5%, dicalcium phosphate 1.5%, stone powder 1%, table salt 0.3%, oil 3%, additives 1%.
③ Corn 55.2%, soybean meal 32%, fish meal 2%, vegetable meal 4%, calcium hydrogen phosphate 1.5%, stone powder 1%, table salt 0.3%, oil 3%, additives 1%.
(2) Feed formula of chicken in meat
① Corn 58.2%, soybean meal 35%, calcium hydrogen phosphate 1.4%, stone powder 1.1%, table salt 0.3%, oil 3%, additives 1%.
② Corn 57.2%, soybean meal 31.5%, rapeseed meal 5%, calcium hydrogen phosphate 1.3%, stone powder 1.2%, table salt 0.3%, oil 2.5%, additives 1%.
③ Corn 57.7%, soybean meal 27%, fish meal 2%, vegetable meal 4%, cotton meal 3%, calcium hydrogen phosphate 1.3%, stone powder 1.2%, table salt 0.3%, oil 2.5%, additives 1%.
(3) Feed formula of meat chicken
① Corn 60.2%, wheat bran 3%, soybean meal 30%, calcium hydrogen phosphate 1.3%, stone powder 1.2%, table salt 0.3%, oil 3%, additives 1%.
② Corn 59.2%, wheat bran 2%, soybean meal 22.5%, vegetable meal 9.5%, calcium hydrogen phosphate 1.3%, stone powder 1.2%, table salt 0.3%, oil 3%, additives 1%.
③ Corn 60.7%, soybean meal 21%, fish meal 2%, vegetable meal 4.5%, cotton meal 5%, calcium hydrogen phosphate 1.3%, stone powder 1.2%, table salt 0.3%, oil 3%, additives 1%.
5. Problems that should be paid attention to in the preparation of broiler feed
The cost of broiler feed accounts for about 80% of the feeding cost. The rationality of the preparation of broiler feed not only directly determines the growth rate of broiler but also affects the feeding efficiency, so the following points should be strictly followed when preparing broiler feed:
(1) Formulating
When formulating feed formulas, it is necessary to base on local feed materials, and to choose raw materials with sufficient resources, good palatability, rich nutrition, low prices, and non-toxic materials, and to greatly reduce feed costs under the premise of a certain nutritional value.
(2) Purchase of raw materials
When purchasing raw materials, you should pay attention to buying high-quality raw materials with high purity, freshness, no mold and no spoilage from large-scale and reputable shops. High-quality feed can not only provide rich nutrients for broilers, reduce the occurrence of diseases, but also create higher feeding benefits.
(3) Storage of raw materials
Feed materials should be stored in a dedicated raw material storage room, and the storage location should be dry, well ventilated, fresh air, and free of pollution. Feed materials should be protected from mold and deterioration during storage, to prevent expiration and expiration, to prevent contamination and stealing by rats, beasts and wild birds.
(4) Feed preparation
Feed preparation should be accurately weighed in strict accordance with the types and proportions of raw materials specified in the feed formula, neither more nor less, more waste, and less nutrition. Additives can be added to a small amount of feed first, and then more feeds are added one by one. Various feeds and additives should be stirred evenly.
The above content is a detailed introduction to broiler feed formulation and broiler feed preparation. Farmers should understand the above introductions in order to formulate feeds that meet the needs of broilers and reduce breeding costs.
6. 1-2t/h poultry chicken broiler layer feed production line we have done:
1-2t/h chicken feed pellet production machine line for poultry feed in Australian
1-2t/h simple home use poultry chicken feed pellet making line in Papua New Guinea
1-2t/h small scale chicken feed pellet processing plant in Peru
1-2t/h automatic small plant poultry pellet feed production plant in Sudan
1-2t/h poultry chicken broiler animal feed pellet making plant in Tanzania
1-2T/H poultry feeding plant in Cape Verde
1-2t/h poultry feedstuff powder feed processing unit line in Tanzania
......
If you want to know more information about "broiler feed formula", "broiler feed factory cost", "How to process broiler feed", "Chicken broiler feed pellet milling machine", "Chicken broiler feed grinder", please continue to follow Richi Machinery official website:https://www.richimachinery.com,or contact us by Email: enquiry@richi-machine.com, Whatsapp/Cel: +86 185 7410 3366
If you want to built one complete pellet production line in your country, pls send the inquiry to us. We will customized design according to your requirement.
