Large capacity construction project business proposal for 200,000 tons/year poultry livestock fish feed processing plant
Starting a large poultry livestock aquatic food manufacturing business is a very complicated thing.Today RICHI will continue to share with you the large scale poultry and livestock feed mill factory project proposal we have done.
Capacity: 200,000 tons/year(about 16000 ton per month)
Feed Factory Project Investment Cost: 60 million yuan
Location: Guangyuan City, Sichuan Province, China
Project area: 55 acres
Construction period: The construction period is 12 months (October 2008 to October 2009)
Project implementation progress:
①Complete the project approval, construction report, land use procedures, and bidding before May 2008. In order to shorten the construction period, the local government agreed to go through the project procedures and start construction at the same time.
②The construction started in October 2008 and was completed in October 2009.
③Trial production: October 2009
④Acceptance: November 2009
1.Background of the multi functional animal feed plant with 2000,000 ton per year capacity
(1) Target market determination
Guangyuan City, Sichuan Province, is roughly within a radius of 200 kilometers. In addition to the city's market, Guangyuan is also located in the junction of Sichuan, Gansu and Shaanxi. Its products can be radiated to more than 60 counties and cities in the adjacent areas of Sichuan, Gansu and Shaanxi.
(2) Local breeding resources
The core market is rich in breeding resources. The local economy is dominated by agricultural breeding and the raw materials for agricultural and sideline products are abundant. It is an ideal place for the development of aquaculture. The feed for pigs, chickens, ducks, and fish is the most concentrated within 200 kilometers, especially pigs, Poultry feed and fur rabbit feed. In 2007, the total capacity of the city was 3 million tons, of which: 2.55 million tons of self-mixed feed accounted for 85%; compound feed was 450,000 tons, which accounted for 15%. 80,000 tons of concentrated material; 73,000 tons of premix. From the perspective of the total annual feed sales structure, pig: poultry: fish = 80:18:2. Concentrated feed occupies 35% of pig feed, compound feed occupies 35%, and premix feed occupies 30%; poultry feed occupies 80% of meat and poultry feed and 20% of egg and poultry feed. In 2007, the total capacity of compound feed in Guangyuan City was more than 300,000 tons (including more than 250,000 tons of mixed feed for pigs); 90,000 tons of pig concentrate and premix, and more than 10,000 tons of feed for pond fish can develop market potential huge.
(3) Market demand
The Guangyuan Municipal Party Committee and the Municipal Government attach great importance to the development of animal husbandry and propose a plan to achieve a leap-forward development of animal husbandry production in the city by the end of the 11th Five-Year Plan. By 2010, the city plans to sell 7 million hogs, 3 million mutton sheep, 50 million poultry, and 10 million rabbits. However, the feed industry in the city is very weak and backward, and the supply of feed is insufficient, which has become a bottleneck restricting the development of animal husbandry. The current production design capacity of the city's feed industry is only 60,000 tons, and the actual production volume is only about 20,000 tons. The feed supply mainly depends on the supply of feed from other places. There are mainly foreign feed products such as Hope, Zhengda, Tongwei, and Tiqi Luxi, which are imported all year round. Class compound feed, additive premix, and concentrated feed are over 350,000 tons. By 2010, with the vigorous development of the city's animal husbandry industry, its industrial feed input will increase exponentially.
2. Yield quality standards
The product varieties of this project are all kinds of livestock and poultry feed, and corresponding standards must be implemented. These standards are:
GB/T16765—1997 General technical conditions for pellet feed;
The determination of GB/T5918-1997 compound feed mixing uniformity;
GB8962-88 compound feed for growing ducks;
GB8963-88 compound feed for meat ducklings;
GB8964-88 compound feed for laying ducks and breeding ducks;
GB5915-86 piglet, growing and finishing pig compound feed;
GB5916-86 produces compound feed for chickens, laying hens, and broilers.
3. Project introduction——business plan of leading poultry livestock feed mill plant with an annual output of 200,000 tons
(1) Feed plant project address
This manufacturing plant project is a feed production project. The site selection should meet the following requirements: it is close to its raw material supply base, the cost of raw materials and finished products channels is lower than that of competitors, the sanitary conditions around the plant site are good, there are no places that hinder product hygiene, and the traffic at the site should be Convenience, sufficient water, electricity and natural gas supply and other conditions. After thorough research, the site was selected in Lizhou District, Guangyuan City.
(2)Animal feed mill factory building conditions
It is 5 kilometers away from the railway station and 2 kilometers from the expressway. The transportation conditions are very convenient, the supporting facilities are complete, the functions are complete, and the water, electricity, steam, sewage and other facilities are sufficient to meet the energy supply and environmental protection needs of large-scale production. The public security environment is good, and the government supports a lot. Five prefecture-level cities in Gansu, Shaanxi and Sichuan are radiated within 200 kilometers. The topography and landform of the selected plant site is plain, the geological structure and construction foundation are good, and the foundation of the development zone is complete. Therefore, the site selected for the project is very suitable for building a large scale modern full automatic poultry livestock feed production factory with 200,000 tons per year.
(3) Raw material, fuel and public facilities situation
①Supply of raw materials and auxiliary materials
The main supply channels for the processing materials of the large scale livestock and poultry feed production line project are divided into two parts: local and outside the province. The province is the main source. The source of goods (corn) in the province is supplied by Guangyuan City for more than half a year. Corn is supplied in the northeast, and the goods are inspected and paid by the poultry livestock feed mill company inside and outside the province, and the processing raw materials can be guaranteed.
②Fuel and power supply
Sufficient fuel and power supply. State grid power supply, self-built coal-saving boiler for 200,000 ton/year feed production.
③Water for production and domestic use
After the project is put into production, its municipal water supply facilities can guarantee the supply.
4. Engineering technical solutions and equipment selection

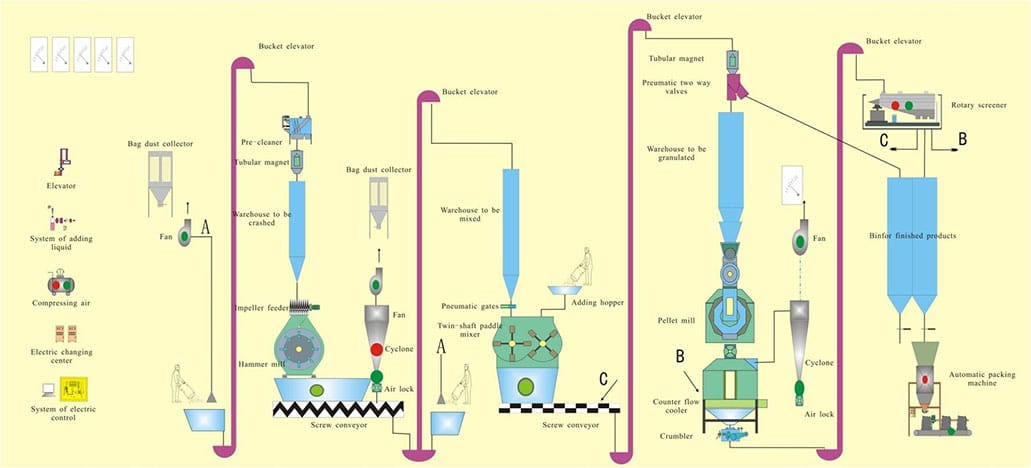

Feeding-cleaning-crushing-batching-mixing-granulating-cooling-screening-weighing-packaging-into the finished product warehouse
(2) Technical indicators of feed technology
Accuracy of batching: static ≤1‰, dynamic ≤3‰)
Uniform mixing: coefficient of variation CV≤7%
Dust concentration: workshop≤10mg/M3, feeding port and discharge place≤150mg/M3
Workshop noise: ≤8SdB(A)
The main animal feed processing equipment of the 200,000 ton/hour capacity big livestock and poultry feed production plant project includes animal poultry cattle chicken pig feed hammer mill crushers, automatic mixing machine for animal feed,large sized heavy duty ring die animal feed pelletizer machines, balers, microcomputer batching systems and other equipment. The project unit has initially selected equipment specifications and models through inspections of different equipment manufacturers at home and abroad.
|1||Double shaft animal feed crushing machine||Crushed corn (Ф3 mesh)>20 tons/hour, 75*2KW||1|
|2||Animal Feed Hammer Mill Grinder||Crushed corn (Ф3 mesh)>10 tons/hour, 75KW||1|
|3||Paddle mixer for poultry livestock feed||V=4m horizontal, mixing uniformity <5%, 30KW||1|
|4||ce ring die animal feed pelletizing machine||15 tons/hour (Ф4 ring die), 150KW||2|
|5||pellet crumbler machine||20 tons/hour, three-kun structure, 15KW||2|
|6||Counter flow pellet cooler||15-20 tons/hour, (2.2+1.5) KW||2|
|7||Particle grading screen||20 tons/hour, two-layer screen surface, 3KW||2|
|8||Electronic packaging machine||25-50Kg/bag, 300-600 bags/hour, error ≤50g||2|
|9||Air compressor||The displacement is 3 cubic meters per minute, the pressure is 0.7PA, 22KW||1|
|10||Rotary distributor||Flow rate of 50 tons/hour, automatic positioning and locking structure||7|
|11||Liquid adding equipment||Adding speed 100L/min, adding accuracy 1%||2|
|12||Microcomputer batching system||Double scale, single scale, can weigh 12 varieties, dynamic accuracy 0.2%||1|
|13||Silo||Can hold 3000 tons of corn||2|
|14||Coal boiler||4 Ton||1|
(4) Main equipment sources
The main equipment of the feed production line includes feed crushers, feed mixers, feed granulators, and feed extruders. The main equipment for complete line feeds for poultry and livestock in this project are all provided by Richi Machinery. Compared with foreign products, these feed production equipment have basically the same production performance and quality of the products produced. The complete set of poultry feed production equipment has high degree of automation and mechanization, low labor intensity of workers, low power consumption, and continuous production.
The designed capacity of this big capacity poultry and livestock feed production factory project is 200,000 tons per year, reaching 220,000 tons. Total investment: construction (facilities) + equipment + working capital = 2051.4 + 1998.6 + 1950 = 60 million yuan.
6.Source of this 200 thousand ton per hour feed producing plant project funds
①The enterprise self-funded.
②The feed production company raises funds through other financing methods such as equity increase.
③ Strive for loans from the China Development Bank and apply for special funds for the development of national support for industrialization.
★Share capital structure: The project is currently a single shareholder and one owner, and all project equity is owned by the owner.
★Debt structure: Banks and owners are currently the only providers of project debt funds. Therefore, the form of debt structure is bank loan funds or the introduction of shareholders' equity investment.
★State support fund investment: The state's free investment in supporting enterprise projects is used exclusively by the enterprise and must be used for approved projects, and must not be embezzled for other purposes; it is an investment loaned to the enterprise by the state to support the project, and the enterprise must use it During the construction of this project, the use of funds must not be changed, and the enterprise will be at the disposal of the project according to the needs of the project, and the principal and interest will be returned within the specified time. The borrowing risk is guaranteed by the property rights of the fixed investment of the project.
7. Project plan

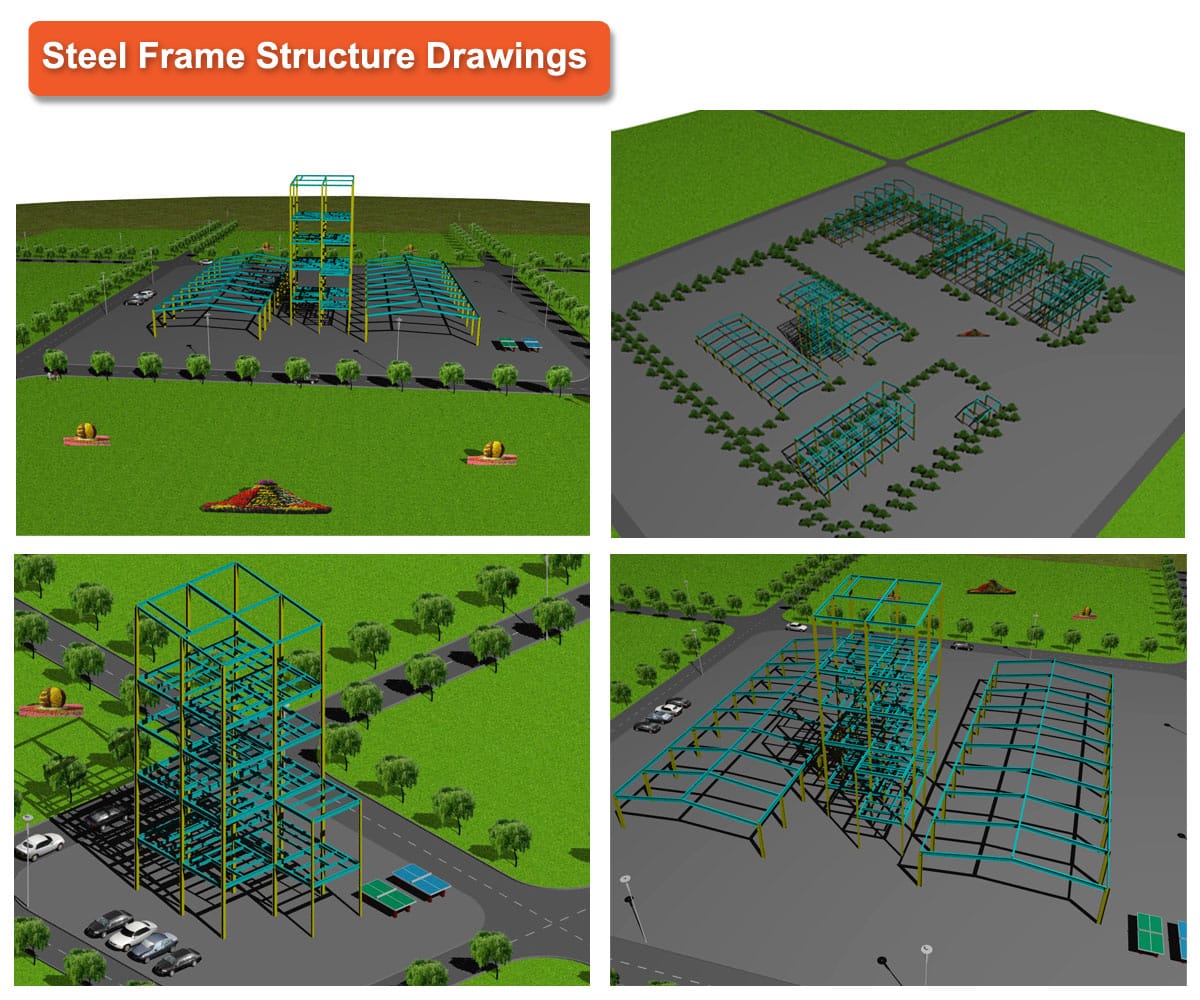

(1) Architectural Design
The design meets the requirements of China's national standards for fire prevention, earthquake prevention, and environmental protection, and meets the needs of production and process. Improve the operating environment of workers. From the shape to the color, the texture of the single building strives to be simple, clear and generous, and is full of the personality of modern industrial architecture. The main workshop and warehouse use color steel. In the whole building design, we strive to adopt new materials and new technologies, and the building is full of art. sense.
(2) Roof waterproofing
In addition to the waterproofing of the warehouse components themselves, the other monomers are all waterproofed with three felts and four oils, and the roof slope is 3%-5%.
The ground of the plant and the single building are all cement mortar surface.
According to the foundation treatment, the frame part adopts the independent foundation under the column, and the exaggerated part adopts the strip foundation under the wall.
(5) Structural modeling
There are many holes in the frame part, combined brick columns and load-bearing structure schemes are adopted, and all components are preferably locally available or easy to make on site.
(6) Structural load
The floor of the main workshop is considered to be 20KN/square meter, and the steel frame floor of the office building and workshop is 0.5-0.7KN/square meter.
8. Environmental impact assessment
(1) The impact of this 200 thousand ton per year animal feed processing line project construction on the environment
During the construction of the large automatic feed production project for poultry livestock, construction will produce certain noise.
(2) The impact of the feed plant manufacturing process on the environment
During the animal feed production process, there is a small amount of dust and slight noise in the workshop.
(3) Environmental protection basis adopted in this project
"Code for Design of Noise Control in Industrial Enterprises" GBJ87—1985
"Standard for Noise at Boundary of Industrial Enterprises" GB12348-1990
(4) Environmental protection plan
①Disposal of dust
The production workshop adopts equipment with good sealing performance in the selection of equipment. Bag pulse dust removal devices are installed where dust escapes, and dust-containing air is discharged after dust removal treatment reaches the standard. At the same time, fully green the plant area and purify the air.
The domestic sewage in the plant area is treated and discharged into the unified sewage discharge ditch in the urban area of Guangyuan City.
③Prevention of noise pollution
The equipment shall be high-efficiency and low-noise equipment and adopt measures such as sound absorption, sound insulation, shock absorption and shock isolation.
④Environmental protection management agency
Set up an environmental protection management agency under the leadership of the supervisor to organize, implement, and supervise the environmental protection work of the feed factory.
(5) Environmental impact assessment
The turnkey large capacity animal poultry livestock feed production line project with an annual output of 200,000 tons has no adverse effects on the environment after selecting equipment and adopting preventive measures.Get The Quotation and Video.
