High Crushing Efficiency
Frequency Motor
Work Smoothly
Safe and Reliable

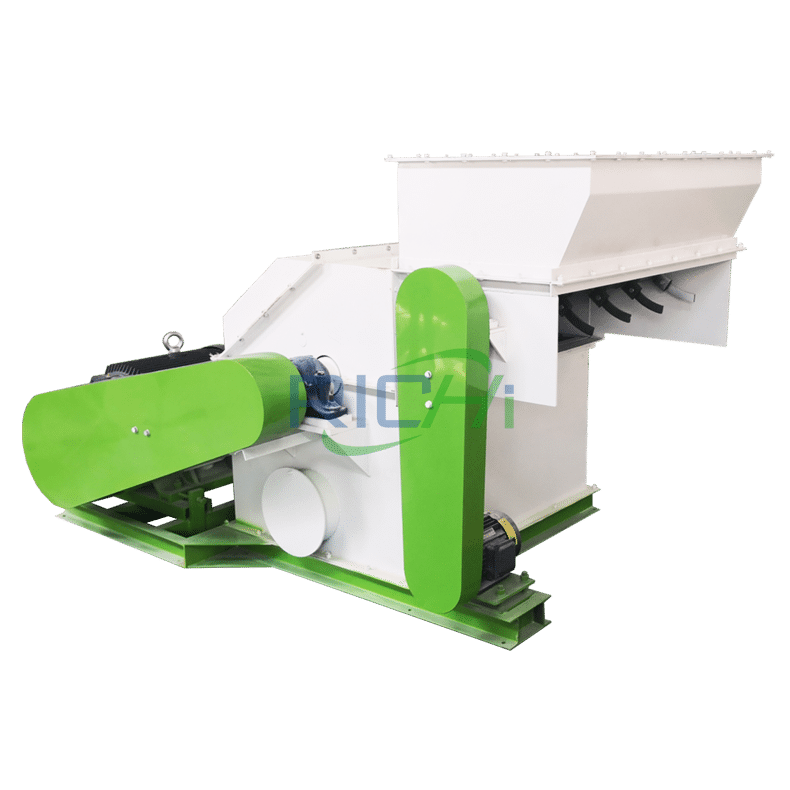

Grass Crushing Machine

Grass Crushing Machine

Due to the special nature of the raw materials, the series of crushers have been specially designed with forced feeders, increased the crushing chamber, thus handling lighter alfalfa, grass, straw and etc. RICHI crushing machine is a fine-stage hammer mill with a hard surface material on the hammer head surface, which greatly prolongs the service life. Rotor motor and the mill installed in the same heavy-duty base, using the pin coupling direct transmission, rotor balancing efficacy through, the work can be positive and negative.

Mode:
9FB56*100

Capacity:
1-2TPH

Main Power:
75KW

The raw materials are fed from the top of the grass crushing machine. Under the action of high-speed rotary hammer and the friction of the sieve plate, the raw materials are gradually crushed, and under the action of centrifugal force, they pass through the sieve holes and are discharged from the outlet of the crushing machine base.

Grass Crushing Machine
×

Technical Features

frequency feeder
Novel and Efficient

RICHI's technical team has innovated the design of the feed inlet, which can quickly, uniformly and accurately feed during the production process.

hammer of feed hammer mill
Hard and Wear-resistant Hammer

Made of high-standard 65mn steel, the hardness is increased after quenching. Tungsten carbide is used at both corners of the hammer head to improve wear resistance.

portable door lock
Higher Portability

Built-in self-lock makes the cover flexible and safe.

feed hammer mill sieve
Hard and Wear-resistant Hammer

Made of high-standard 65mn steel, the hardness is increased after quenching. Tungsten carbide is used at both corners of the hammer head to improve wear resistance.

feed hammer mill bearing
Rugged and Durable

Our equipment is processed with high-standard steel, and the thickness of the body is 20% higher than the same industry, which greatly improves the service life.

feed hammer mill motor
Stable and Long Life

Our feed hammer mill use high-standard Siemens motors, which can fully guarantee the stability of the equipment.

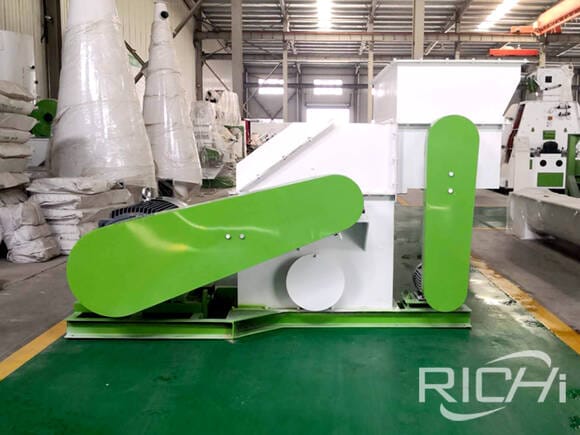

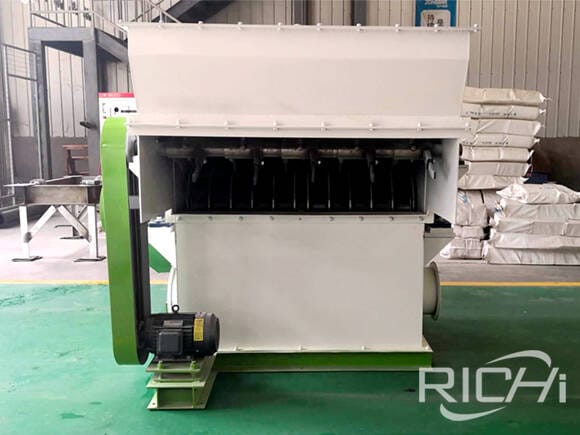

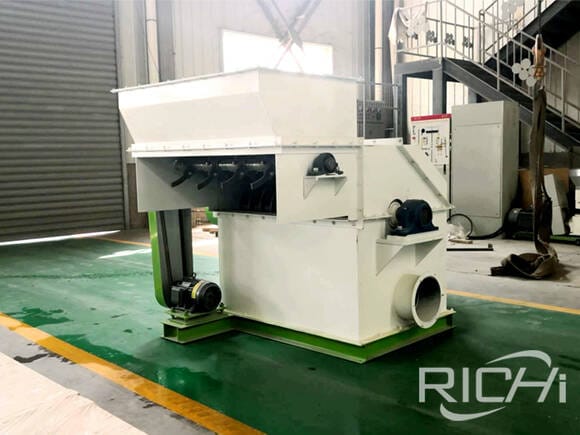

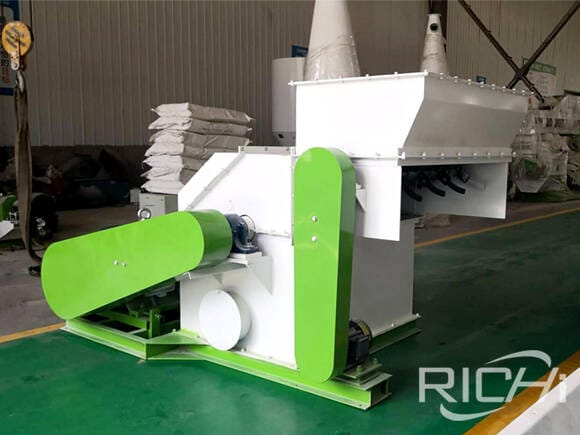

Product Display

More than 25 years of pelleting solutions and other related industry experience around the world have provided support for the inherent quality and technology of grass crushing machine. The requirement to grind a large number of special products has led to the development of crushers. RICHI grass crusher has made necessary upgrades for crushing alfalfa, straw, hay, hops and other grass raw materials, such as a widened inlet, so that the efficiency and output can be increased when crushing relatively light raw materials of grass.

→ Please contact us if you are interested
  • Grass Crushing Machine
  • Grass Crushing Machine
  • Grass Crushing Machine
  • Grass Crushing Machine

Technical Parameters

Model 9FB56*40 9FB56*60 9FB56*80 9FB56*100 9FB56*120
Power 22kw 30/37kw 37kw 55kw 93kw
Capacity 0.3-0.8T/H 0.5-1.2T/H 0.6-1.5T/H 1-2T/H 1.5-3T/H
