Best design factory price of 1-20 tph high quality ce biomass wood pellet production line for soybean stover pellets

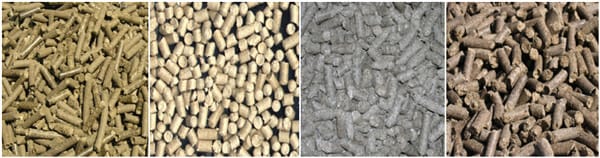

1. Introduction of soybean stover pellets
Soybean stover pellets refer to the process of crushing, drying, heating and compressing the straw into fuel pellets after soybeans are harvested. Its calorific value is as high as 4500 kcal, which is much higher than commonly used straw particles such as corn stalk particles and peanut shell particles, and not lower than wood pellets. Its high utilization value has never been used because there is no pellet function in the straw pellet processing process to meet such requirements. The straw pellets do not have any additives or binders. The machine that produces corn stalk pellets cannot make soybean straw pellets. The machine that produces wood pellets can make soybean straw pellets.
The high protein contained in soybean stover is the best choice for livestock feed. It is more conducive to the digestion and absorption of animals after being crushed and heated during processing. Other feeds can be added during the processing through customization, which can be customized according to customer needs.After the soybean straw is crushed and compressed, the nutrient content of the product without adding any additives: crude protein 41.32%, crude protein 4.8%, and total amino acid 3.50%.
2. Applications of soybean stover
After harvesting soybeans, many farmers will process the remaining soybean stalks into pellets after being dried. However, it has many magical uses in our lives. It is a pity that I don’t know. Let’s take a look.
(1) Papermaking. The cellulose, hemicellulose, lignin and other components in soybean straw are very high, and the lignin and cellulose in soybean straw can be extracted as raw materials for papermaking. In addition, soybean straw is a fibrous plant and can also be used as industrial raw materials such as board processing, and has a wide range of uses.
(2) Feed. Soy straw contains protein content as high as 10%-12%, low sugar content, and high feed nutritional value. After being dried and crushed, it can be directly fed to grass-eating livestock such as cattle and sheep, which has a good effect on improving feed remuneration and economic benefits, and can also increase nutritional value and improve enzymatic hydrolysis.
Soy straw concentrate supplementary pellet feed system crushes straw and concentrate feed, and mixes and mixes them in a certain proportion according to the nutritional needs of ruminants, and is processed into a certain pellet shape feed with a feed block machine. At present, straw pellet feed The raw materials are generally corn stalks, wheat stalks and rice stalks, and soybean straw concentrates are used to supplement pellets. The main raw material of the pellet feed is soybean stalks as the main raw material for making feed, which broadens the source of processed feed materials and effectively improves the utilization rate of soybean stalks.
(3) Cultivate edible fungi. After crushing the soybean stalks into 2-3 cm particles, do pre-wet treatment before use, which can be used to cultivate oyster mushrooms, shiitake mushrooms, fungus, enoki mushrooms, etc. Additives generally do not exceed 50%, which can also increase the yield of edible fungi.
3.Soybean Stover Pellet Mill Machine For 1-20T/H Biomass Fuel Pelletizing Plant
As farmers we all know that sometimes using the Stover pellet mill to get the right type of pellet out of it can be difficult. Sometimes when we can get a certain type of pellet, it would regularly be unusable so having a good quality pellet mill is a must among farmers. For those who don't know what a pellet mill is which is a bit unusual it's simply a machine which can turn crop waste such as corn stalk or even soybean stover which are going to be talked about mainly in this article into biofuel or even be fed to animals. One of the other main issues which can be solved using the a stover pellet mill is the large accumulation of crop waste that just sits on our farms after harvesting which could have been used to feed certain animals on our farm or even help make great heating fuel because they burn really well when turned into pellets.
4.Why Make Soybean Stover Into Biomass Pellets?
Soybean Stover is gaining a lot of attention by farmers across America and some parts of the world. Over the past few years it has been looked down on by farmers because they usually criticize it saying that the nutrient value of a typical soybean Stover pellet is pretty low comparing to other forms of Stover's such as corn and it will affect cows which are the main animals it is being fed to. Thanks to the vision and help from hard working farmers, the soybean stover pellets which are made from the stalk by use of pelletizing machine can now be used in an environmental andfriendly way. It can now be used as a good source for heating fuel especially for your greenhouses which usually takes lots energy. You are also seeing a spike in interest from persons who would normally use wood fire equipment back then now choosing pellet stoves.
5.Choose the suitable high performance agriculture waste biomass soybean stover pellet making machine wth factory price

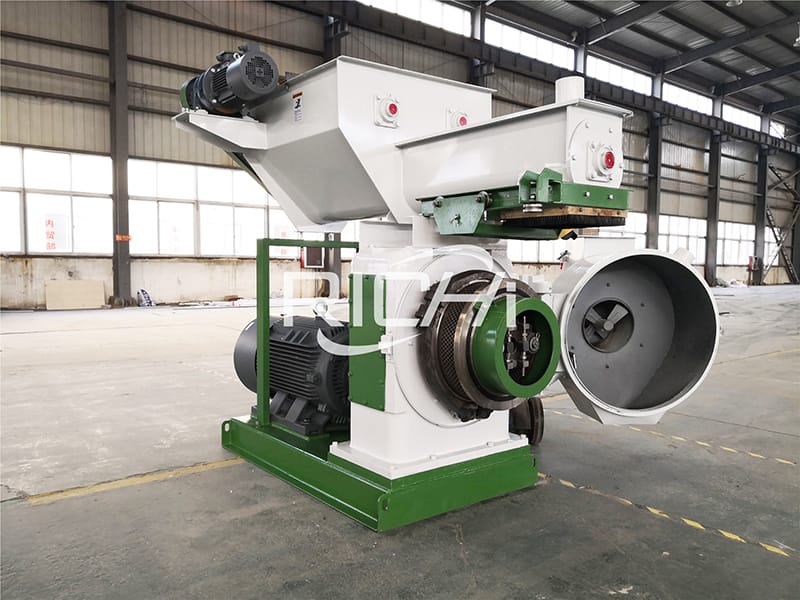

RICHI ring die soybean stover pellet making machine series:
MZLH350 800-1000kg/h China professional factory offered high quality soybean stover pellet machine
MZLH320 factory offered hot sale 300-500kg/h biomass soybean stover pellet mill with ce
MZLH420 high performance 1-2 ton per hour soybean stover pellet machine
MZLH520 new technology 2-3 ton per hour soybean stover pellet mill
MZLH768 2.5-4t/h easy to operate good quality soybean stover pellet machine
MZLH858 3-4.5t/h China hot sell good quality soybean stover pellet machine for sale
When looking for a soybean stover pellet mill you can usually buy them on a large and small scale, the good thing is that whether you have a large scale stover pellet mill or a small scale one. They both process them the same way although you might have some that are designed and functioned differently which are patented but the majority of them works the same. To make crop straw pellets, all you need to is put the Stovers in the top of the die and as the die rotates around, a roller will press the grinded stovers which then turns to a powdered material through the holes in the die. When all of that is all done, there is a cutter on the other side of the die which cuts up the pellet into smaller pieces.The large scale pellet mill are kind of expensive but farmers buy it because they can process a large amount of stovers at a time.
6.China factory supply 1-20 ton per hour customized biomass soybean stover pellet line project manufacturing process
Generally speaking, the 1-20 tph complete biomass soybean stover pellet processing plant production process can be divided into several parts: crushing system, drying system, pelletizing system, cooling and sifting system, packaging system and electrical cabinet system. The details of each process are listed as follows:
Equipment needed: chaff cutter machine , grain hammer mill crusher.
Crush your soybean stover raw materials into appropriate small pieces with straw cutter and soybean stover hammer mill crusher. Crushing is quite necessary especially when the raw material is log. Generally, the final crushed size should be 3-6mm which is required by most ring die biomass pellet making machines.
Equipment needed: high drying efficiency biomass rotary dryer for soybean stover
In this process, the crushed soybean stover will be dried to appropriate moisture content. To make premium biomass fuel pellets, drying is one of the most important parts you should pay attention to. 12-16% is suitable in most biomass soybean stover pellet manufacturing process. High moisture raw materials could result in easy split pellets and low moisture materials could cause pelletizing difficulty problem. If you plan to build a large soybean stover pelletizing line, good quality ce rotary dryer is the best choice. Due to its big drum and structure, the price might be relatively higher than normal dryer. If your budget is limited, air flow dryer is also a good choice.
Equipment needed: ring die pellet mill for 1-20 tph soybean stover pellet processing plant production
Pelletizing is the key process of 1-20 tph biomass soybean stover pellet production plant. The ring die of RICHI biomass wood pellet making equipment is designed with different compression ratios. Ring die with multiple compression ratios make our pelletizer machine in biomass capable of processing various kinds of biomass materials.
(4)Cooling and Sifting System
Equipment needed: soybean stover pellet cooling machine and screener
Cooling system helps to cool down the final soybean stover pellets. Sieving system is for removing the powder in the pellets.
Equipment needed: automatic packing machine
Packing is the last one process of 1-20 t/h complete soybean stover turn-key biomass pellet plant production. You can choose to pack the soybean stover pellets with bulk bag or small bag. Bulk bag is 1Ton/Bag. Small bag is about 15-30kg/Bag.
7.Bright Future Of Soybean Stover Pelletizing Projects
As we head into a more energy efficient world expect to see a skyrocket in sales growth for soybean Stover pellets especially for the use of bio fuel. It is clean, produces more heat per unit and easier to handle. The future looks brighter than it ever been for soybean stover pellet production and it is going to impact a lot of areas in various industries as well including thermal power plants and home heating. Scientist are already getting funding to do further and deeper research on stover pellets in general because it has low carbon, energy saving and environmental friendly characteristics and that's just what we need for our to fight against global warming.
8.Cost of 1-20TPH Soybean Stover Pellet Processing Line Project
1-20TPH professional complete wood pellet production line price is usually between 100000USD-2500000USD.
Please contact Richi Machinery in order to obtain more details of our customized 1-20 ton per hour ce certificate soybean stover pellet production line machine price. Or your are welcome to send us your plan and we are always on hand to support you!
If you want to built one complete pellet production line in your country, pls send the inquiry to us. We will customized design according to your requirement.
