The advanced technology used in Richi's rabbit feed processing technology ensure the most strict hygiene standard in animal feed milling and reduce pollution and cross contamination.

Type:
Meat rabbit, Rex rabbit,Young rabbits, Fattening rabbits,etc.
Finished Pellet:
Meat rabbit:3-6mm pellet
Rex rabbit:3-5mm pellet
Young rabbit:2-3mm pellet
Fattening rabbits:3-8mm pellet
Main Raw Materials:
Grass meal,Wheat,Sunflower meal,Soybean meal,Premix ,Corn,Fish meal,Meat and bone meal,Calcium,Barley,Oat ,etc.
Capacity:
×

Complete Rabbit Feed Pellet Production Line Processing Flow

Our solutions come in a modular design so you can customize them to match your production process. At RICHI we focus on solutions that pay off, whether it's supplying the smallest spare part or serving as a long term partner. Complete Rabbit Feed Pellet Production Line includes the following equipments, from the storage of raw materials to the packaging of the final pellets. Each section has professional equipment to work. Of course, according to the different needs, it may be the particularity of the raw materials or the limitations of the site. Our engineers will redesign the process, and the equipment used will be increased or decreased. Click each module below, you will see the specific equipment information.

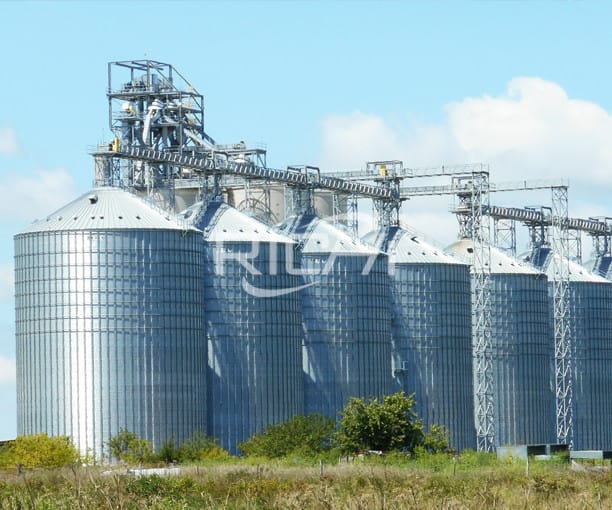

Silo System
1
Silo System
X
Raw Material Storage

The rabbit pellet feed raw materials are dispersed, and various forms of silos must be used.Silo system is mainly used for storage of corn, wheat, soya and other raw grain, port of raw grain dumping, grease industrial materials storage.For long-term storage, aeration and cooling can be added.Generally,steel silo can be divided into assembly type steel silo and screw type helix steel silo.

Material Receive System
2
Material Receive System

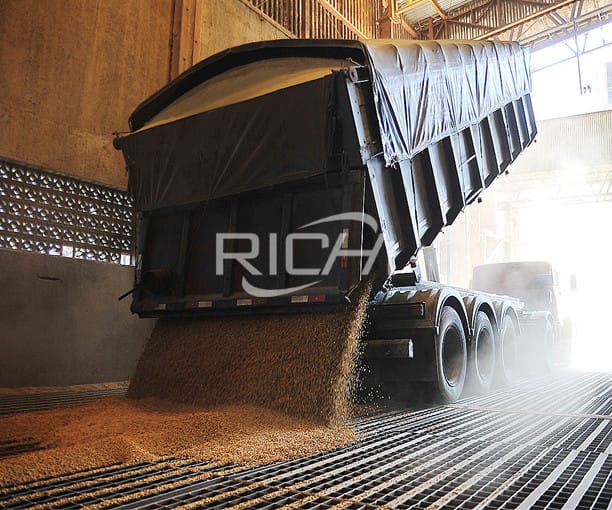

Raw Material Receiving

The rabbit feed raw material receiving system includes bulk raw materials, packaging raw materials, and liquid raw materials. Bulk raw materials are weighed by dump trucks and weighed before unloading the raw materials to the silo; packaging raw materials are divided into manual handling and mechanical handling; liquid raw materials are directly transported into the warehouse in the form of bottles or barrels.

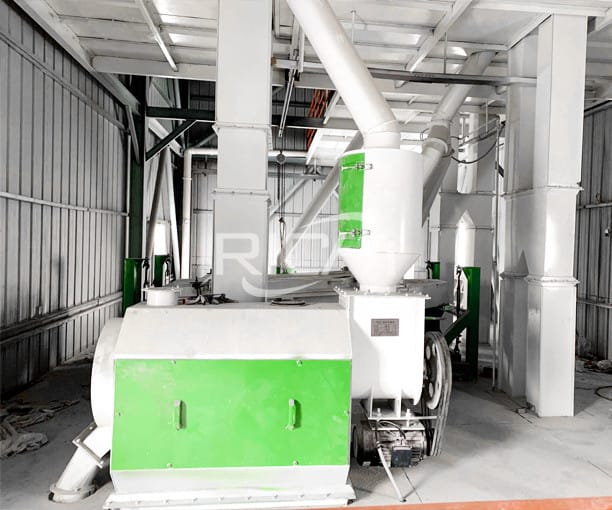

Cleaning System
3
Cleaning System
Raw Material Pre-cleaning

Cleaning is playing a role to remove the impurities from raw material, including large impurities such as nonmagnetic impurity like rope, clod and corn cob and magnetic impurity like iron nails. It will ensure the quality of products and safety of following rabbit feed processing machine.



ANIMAL FEED CLEANING MACHINE

MAGNETIC SEPARATOR

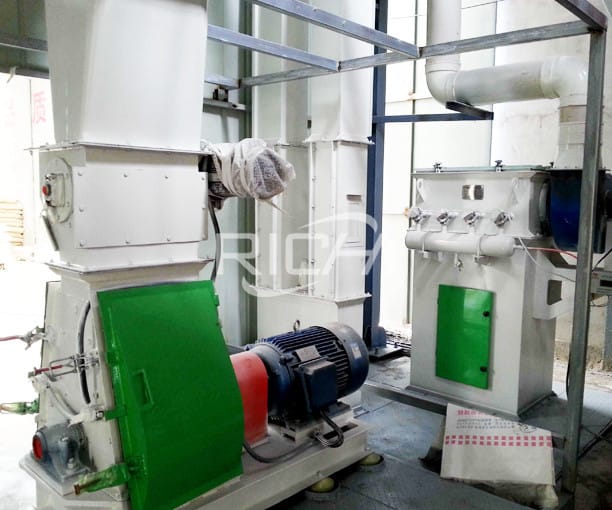

Crushing System
4
Crushing System
Raw Material Crushing

After crushing the raw materials, the surface area is enlarged, which can significantly improve the digestion utilization rate of feed. When corn, wheat, rice, cake and other raw materials are crushed, the aperture of the sieve plate of the crusher should be adjusted to 1.5-2.0 mm.



ANIMAL FEED HAMMER MILL

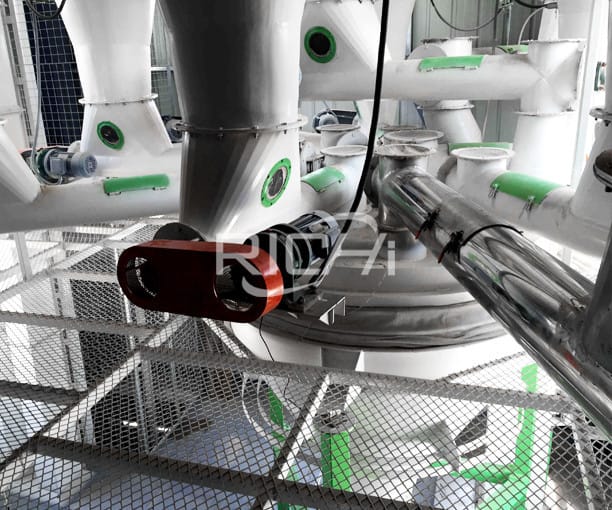

Batching System
5
Batching System
Precise Ingredients

Batching designs formulations according to the nutritional needs of different rabbit animals, using specific device to accurately weigh the various ingredients.



FEED ROTARY DISTRIBUTOR

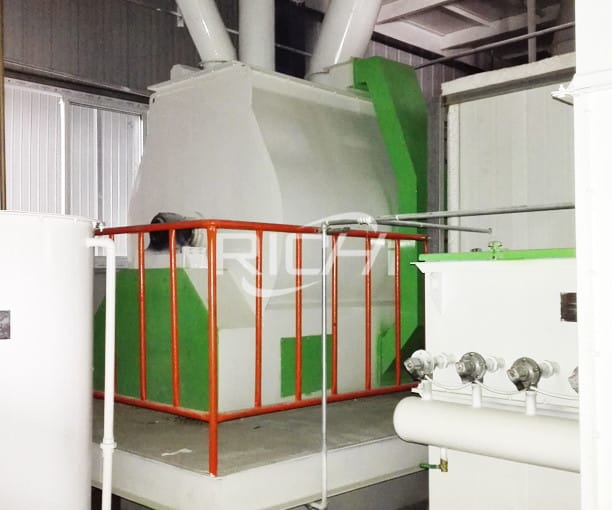

Mixing System
6
Mixing System
Raw Material Mixing

The task of mixing section is to evenly mix different rabbit feed materials into complete powder feed.And according to the certain operation order between the bin for the mixer, the mixer and the buffer bin,to ensure the continuous operation.



ANIMAL FEED MIXING MACHINE

Pelletizing System
7
Pelletizing System
Press Raw Materials into Pellets

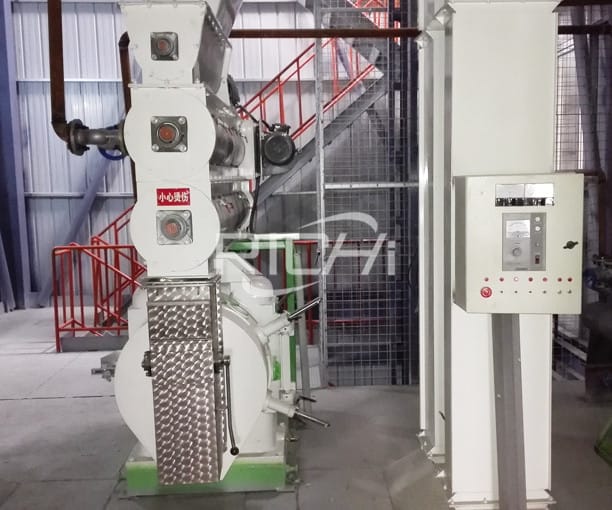

After using high temperature steam to make raw material curing, the materials will be made to pellet through rabbit feed pellet press machine. The quality of conditioning directly determines the quality of rabbit feed pellet feed. The purpose of conditioning is to mix and match the good dry powder into a powdered feed with a certain amount of moisture and a certain humidity, which is beneficial to granulation. At present, state-owned rabbit ring die feed mills add steam to complete the conditioning process.



FEED PELLET MACHINE

Cooling System
8
Cooling System
Ready for Handling and Storage

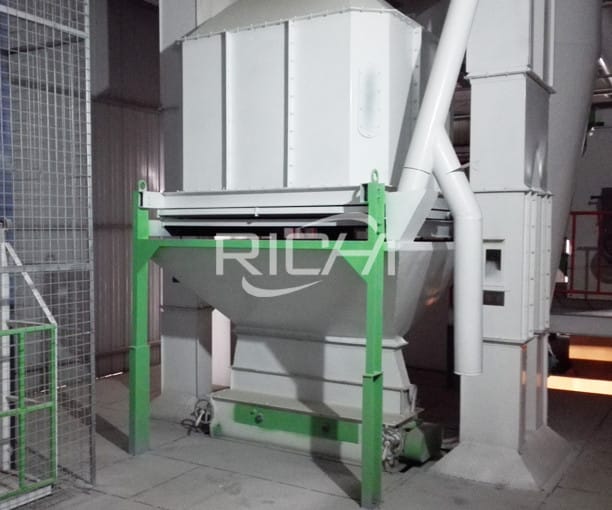

The feed pellets pressed out by the rabbit feed pellet mill are hot and moist, they can't be crushed, screened or packed immediately. The counter flow cooler is adopted to cool the rabbit feed pellets with high temperature and moisture.



FEED PELLET COOLING MACHINE

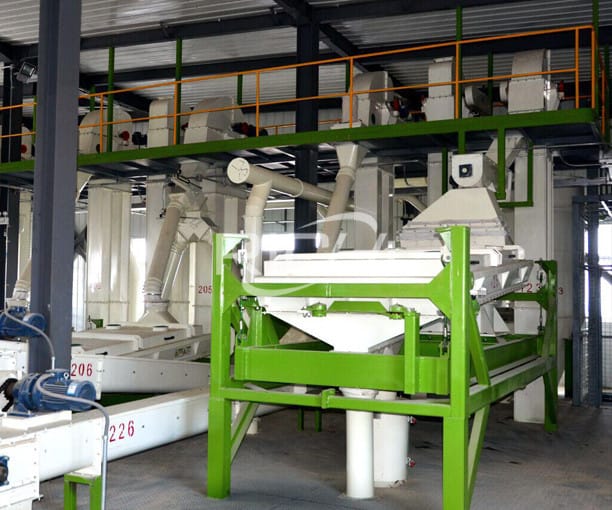

Screening System
9
Screening System
Screening System

To ensure supply of quality and perfect size rabbit feed, screener plays a vital role. Uneven sizes screaned-out.



PELLET ROTARY SCREENER

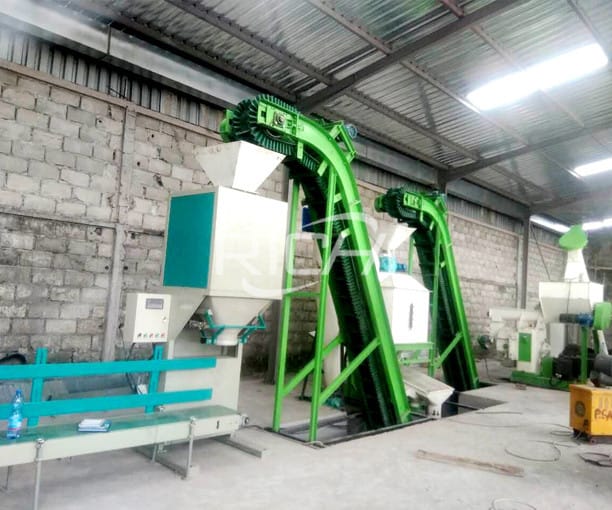

Conveying System
10
Conveying System
Conveying System

In rabbit feed mills, raw materials or finished products are often handled before they can be processed. This requires a complete set of conveying equipment.Corn is usually not bagged when raw materials enter the factory. The truck directly unloads the raw materials into the tunnel, and then transports it to the lifting place by the scraper conveyor, and finally lifts it to the silo for storage.

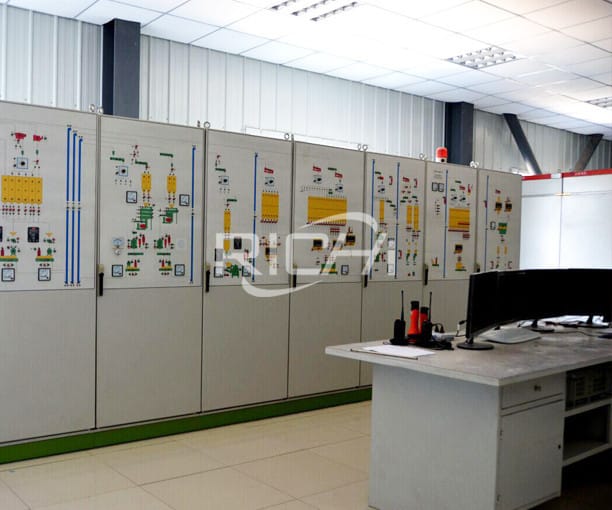

Electronic Control System
11
Electronic Control System
Electronic Control System

PLC is designed according to the requirement of the customer. It can also control automation level.Our PLC is provided by the top international brands in the industrial automation field such as Siemens, Schneider and Delta.

Send Inquiry

The Main Equipments of Complete Feed Pellet Production Line

RICHI can provide the complete turnkey project feed pellet production line, from design to install . Whether you want to produce chicken feed, cow feed or pig feed, the capacity is 1-100TPH can be choose. The main machine is feed hammer mill, feed mixer, feed pellet machine , cooling machine ,rotary sereener and others . Looking forward to your consultation !

Send Inquiry
The 10T/H Automatic Chicken Feed Pellet Line

Case About this

Typical Animal Feed Pellet Line Turnkey Project

Name: The 10T/H Automatic Chicken Feed Pellet Line
Country: Uzbekistan
Pellet Size:2-4mm
Main Material: Corn, wheat, Soybean Meal, and other Grain
Total Power:358KW
Main Machines: 1.Feed Hammer Mill*110kw;2. Batching Scale *1000kg/batch 3.Feed Mixer*1000kg/batch ;4.Chicken Feed Pellet Machine*110KW;5.Cooling Machine*SKLN20*20; 6.Crumbler Machine*SSLG15*150 ;7. Vibrating Sereen ;8. Packing System and other auxiliary equipment.

Send Inquiry
Project Summary

The field trial operation proves that the actual measured output of RICHI's 10t chicken feed pellet line is up to 13 tons, the operating current only accounts for 85% of the rated current of the motor, and each ton of feed can be 20kW•h less than the industry average power consumption. The output is calculated on the average yield of 11t/h (the initial design capacity is 10-12 tons), set to produce 8 months a year, 30 days per month, and 10 hours per day.Compared with common chicken feed pellet line of the same grade in the industry,this line can save 288,000 kWh of electricity,one yuan per kwh can ultimately save customers 28.8 million (calculated in RMB).

Send Inquiry
The 10T/H Automatic Chicken Feed Pellet Line Layout
10T/H Cattle Feed Pellet Production Line

Case About this

Typical Animal Feed Pellet Line Turnkey Project

Name: 10T/H Cattle Feed Pellet Production Line
Country: South Africa
Pellet Size:1-12mm
Main Material: corn, soybean meal, 50% grass and other grain
Total Power:335KW
Main Machines: Feed Hammer Mill*110KW, Feed Mixer*1000KG/BATCH, Batching Scale*1000KG/BATCH, Feed Pellet Machine*110KW,Pellet Cooling Machine*SKLH20*20, Crumbler Machine*SSLG15*150, Screen Machine, Automatic Packing Machine, Coal-fired Boiler*0.7MPA, etc.

Send Inquiry
Project Summary

This project is currently the most advanced ruminant feed production line in the customer's local area. The project is fully computer-controlled and replaces the customer's previous manual packaging, manual handling, manual baching, and manual operations, allowing customers to experience the efficiency, energy saving, and safety of automated feed production. At the same time, the project uses a first-class process plan, the rumination process uses the most advanced production equipment in South Africa, which greatly improves the production efficiency of customers and creates economic value for customers.

Send Inquiry
10T/H Cattle Feed Pellet Production Line Layout
5T/H Extruded Shrimp Feed Pellet Production Line in Henan

Case About this

Typical Animal Feed Pellet Line Turnkey Project

Name: 5T/H Extruded Shrimp Feed Pellet Production Line in Henan
Country: China
Pellet Size:0.6-4mm
Main Material: fishmeal,homemade fishmeal, alcohol master batch, soybean phosphatide, soybean meal, peanut meal, etc
Total Power:235KW
Main Machines: Fish Feed Grinder, Feed Ultra-fine Pulverizer, Feed Mixing Machine, Pellet Crumbler, Automatic Batching System, Fish Feed Extruder Machine, Feed Pellet Cooler, Screen Machine, Automatic Packing Machine, Natural Gas Boiler, etc.

Send Inquiry
Project Summary

The extruded aquatic project is the largest local aquatic project of the client. Its successful operation not only brings great changes to local farmers, but also lays a stable foundation for the long-term development of RICHI. The use of differentiated process equipment for this expanded aquatic project will greatly improve feed quality and profitability; at the same time, the introduction of automation and intelligent equipment will also greatly reduce labor costs, help customers improve efficiency, and reduce feed plant operating costs . During the construction process, not only advanced technology is introduced into the local area, but also resource and energy utilization are considered, so that the project saves electricity and steam.

Send Inquiry
5T/H Extruded Shrimp Feed Pellet Production Line in Henan Layout
customer finalized the cooperation with RICHI
On March 15, 2020, After many rounds of technical negotiation and production line planning, the customer finalized the cooperation with RICHI;
on-site survey to equipment selection
According to the actual situation of the customer, from on-site survey to equipment selection, to installation and commissioning, RICHI provides an customized solution.
RICHI equipment
RICHI has always been upholding the spirit of craftsman at the stages of machine process, our strict requirements on quality are ultimately aimed at the long-term and trouble-free operation of the equipment to create maximum benefits for customers;
RICHI hammer mill
After the quality test before delivery,the 12t/h production line equipments are officially shipped through professional packaging and modular transportation solutions;
Turnkey Service Review
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
RICHI dispatched 2 professional technicians to assist the construction of the site infrastructure, equipment installation and commissioning, and trial operation of the entire production line;
After 40 days of installation, the project was completed successfully, then we provided the customer with the factory certificate, inspection report and other documents.
RICHI will continue to provide a series of after-sales services such as one-year warranty, maintenance and accessories, and quickly responds to customer feedback during project operation.
delivery from RICHI
April 3, 2017, South Africa customers came to RICHI Machinery, they visited the workshop and gave a high evaluation of product quality;
installed from RICHI
After fully understanding the actual situation of the customer site, after careful discussion with customer, the design of 10T cattle feed line was determined.
Visit To Our Customer
RICHI has always been upholding the spirit of craftsman at the stages of machine process, our strict requirements on quality are ultimately aimed at the long-term and trouble-free operation of the equipment to create maximum benefits for customers;
Service In RICHI
After the quality test before delivery,the 10t/h production line equipments are officially shipped through professional packaging and modular transportation solutions;
Turnkey Service Review
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
Technical Guide From RICHI
RICHI dispatched 2 professional technicians to guide the construction of the site infrastructure, equipment installation and commissioning,and trial operation of the entire production line;
Delivery To Customer
RICHI strictly controls production line assembly and commissioning to meet customer needs. After 60 days of installation, the project is successfully delivered to customers.
RICHI Service
RICHI will continue to provide a series of after-sales services such as one-year warranty, maintenance and accessories, and quickly responds to customer feedback during project operation.
RICHI Machinery
This is a tender project.RICHI Machinery won the bid in August 2015, and officially signed a project contract with the customer that month.
Installation and Commission
According to the actual situation of the customer, from on-site survey to equipment selection, to installation and commissioning,RICHI provides an customized solution.
RICHI Equipment
RICHI has always been upholding the spirit of craftsman at the stages of machine process,our strict requirements on quality are ultimately aimed at the long-term and trouble-free operation of the equipment to create maximum benefits for customers;
pellet production line
After the quality test before delivery,the 12t/h production line equipments are officially shipped through professional packaging and modular transportation solutions;
Turnkey Service Review
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
RICHI Pellet Machine
RICHI selected an excellent work team to ensure that the customer project is put into production as early as possible.
RICHI Company
The project took 60 days to install.After all the project indicators have reached the design standard, the customer has issued the project acceptance documents.
RICHI Group
RICHI will continue to provide a series of after-sales services such as one-year warranty, maintenance and accessories, and quickly responds to customer feedback during project operation.
Rabbit Feed Formula

Grass meal 30%
Wheat 10%
Sunflower meal 15%
Soybean meal 2%
Premix 2,5%
Corn 5%
Fish meal 2%
......
