SZLH-250 Feed Pellet Machine

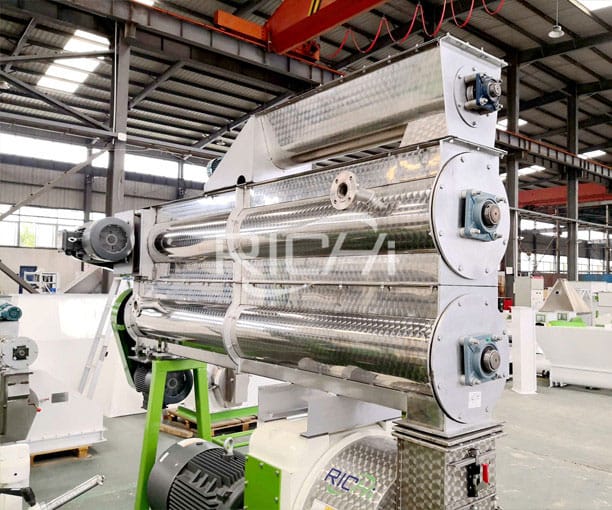

The material is transported into the feeder through the frequency speed regulating feeder speed regulating feeder.

यह मॉडल उन्नत परिवर्तनीय आवृत्ति मोटर फीडिंग को अपनाता है, जिसमें ओवरलोड सुरक्षा उपकरण शामिल हैं। और मशीनें नेस्टिंग संगठन के बाहर;

स्टेनलेस स्टील फीडर फीड पेलेट मशीन का:

इनवर्टर्स फीडर से संबंधित (खिलाने की गति बदल सकता है)
बी. स्टेनलेस स्टील सामग्री
सी. सीमेंस इलेक्ट्रिक मोटर

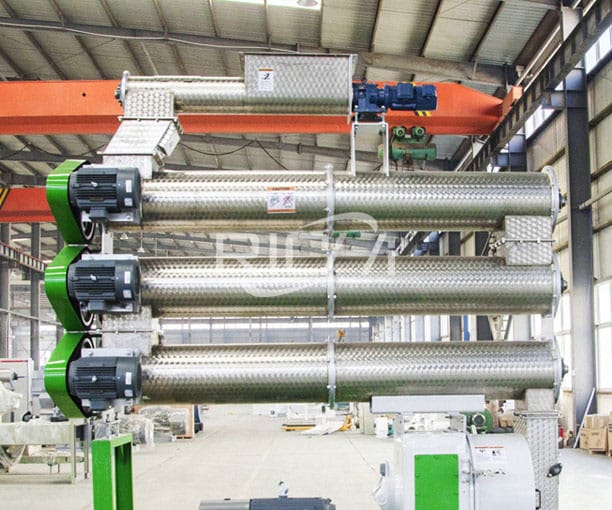

Ring die type pellet machine is with conditioner. The conditioner is made by totally 100% stainless steel.

The function of conditioner :

It will be connected with boiler, the steam will be supply by the steam boiler.raw materials of feed and steam will be mixed in the conditioner.

The aim of the hot steam when mixed with the raw materials in the conditioner:

The function of boiler:

(1): Hot steam will kill all bacteria in raw materials, to make the feed more healthy
(2): Hot steam will cook the materials, to make the final feed more easily digestiable
(3): Hot steam will make the materials more soft, to make the materials more easily to be pressed into pellets. Increase the final pellet shaping amount so increase the production capacity.
(4): Hot team will add 2% moisture into materials, the capacity will increase about 5%-10% than without boiler
(5): Hot steam will cook the materials, make the feed more delicious, animal will prefer to eat. The fuel of boiler: can be Oil, gas, biomass, coal, electricity etc.

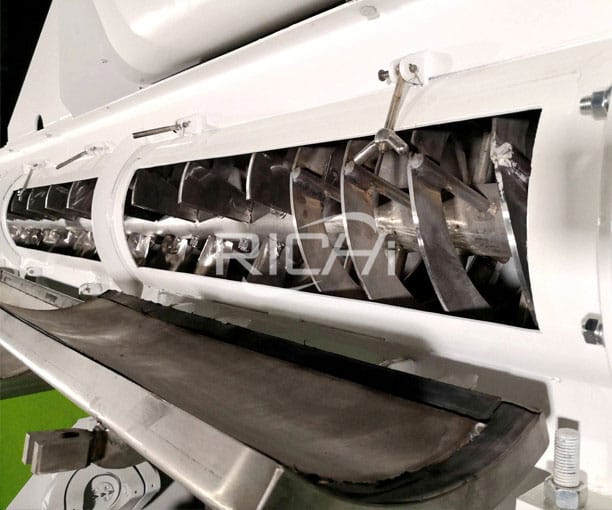

The paddle will mix the raw material of feed with hot steam(produced from boiler).

RICHI MACHINERY’S paddles are Forged, cut directly from steel plates, more wear-resistant; many supplier ‘s paddles on their pellet machine in the market are belong to cast, not strong and durable;

The arrangement of paddles, arranged at a certain angle, and fed at a uniform speed, to ensure the full mixing of materials and steam . Improve the effect of tempering/conditioning.

Paddle Model：Single-shaft paddle

Paddle Material: Stainless steel , painted 201, unpainted 304

Paddle Types: There are one layer conditioner, two layer conditioners, three layer conditioners , three types pellet machine, we will suggest based on different ‘s customer final aimed kinds of pellet.

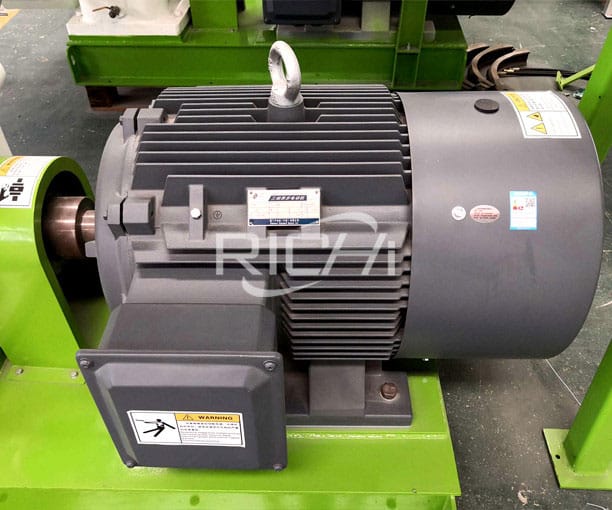

सीमेंस दुनिया की सबसे बड़ी विद्युत और इलेक्ट्रॉनिक्स कंपनियों में से एक है। कंपनियों में से एक है, सीमेंस इलेक्ट्रिक मोटर्स गुणवत्ता, नवाचार और उच्चतम दक्षता का पर्याय हैं।.

उच्च दक्षता स्तर ऊर्जा की खपत को कम करता है और उपयोगकर्ताओं के लिए सीधे लागत बचाता है।.
उपयोगकर्ताओं की सुरक्षा और विश्वसनीयता सुनिश्चित करने के लिए उच्च सुरक्षा स्तर।.

RICHI के लिए, बेहतर उत्पाद गुणवत्ता सुनिश्चित करने के लिए उच्च उत्पादन लागत का उपयोग किया जाता है। और फीड पेलेट मशीन के सेवा जीवन को सुनिश्चित कर सकता है और अधिक स्थिर संचालन प्रदान कर सकता है।.

फीडर की शक्ति: 0.75KW
The Power of Conditioner:1.5KW
मुख्य मशीन की शक्ति:22KW
वोल्टेज: 220v/380v/415v, 50hz या 60hz, 3-फेज, चुना जा सकता है।

आयातित उच्च-गुणवत्ता वाले स्पिंडल बेयरिंग SKF बेयरिंग।.

Pelletmachine is the key equipment in poultry and animal feed pellet producing process.

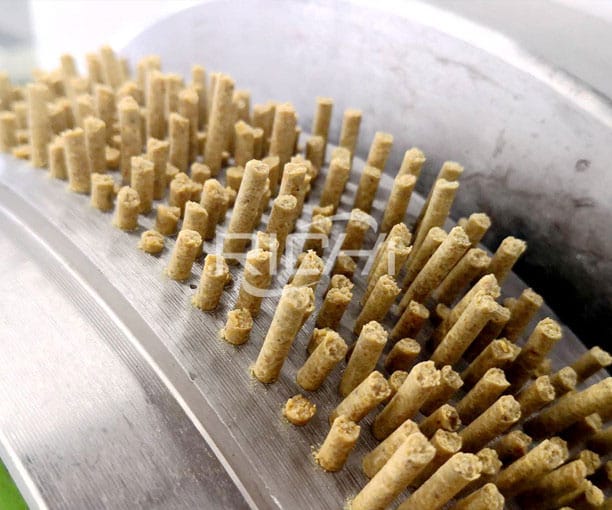

The ring die mould is the heart part of pellet mill machine, and it's one the most easy wearing spare parts as well.

This model is available in a variety of aperture between Φ1.5-Φ12 ring mold,the user can arbitrarily chosen according to different needs,in order to obtain the best technical and economic benefits;

RICHI Ring die of feed pellet machine used the 40CrMnTi, the carburizing heat treatment can improve  abrasive resistance of ring die, the stainless steel doesn’t corrode easily.

About the final feed pellet size of feed pellet machine.

1.Starter/Middle Chicken ,  1.5-3mm,  suitable for chicken 10 10-30days

2.Big Chicken .  3.5-4.0mm，  suitable for chicken in 30-45days

3.Layers Powder feeds  also can feed small baby chicks

4.Cattle/Goat  5.0-8.0mm  without grass in recipe

5.Cattle/Goat  5.0-8.0mm  with grass in recipe

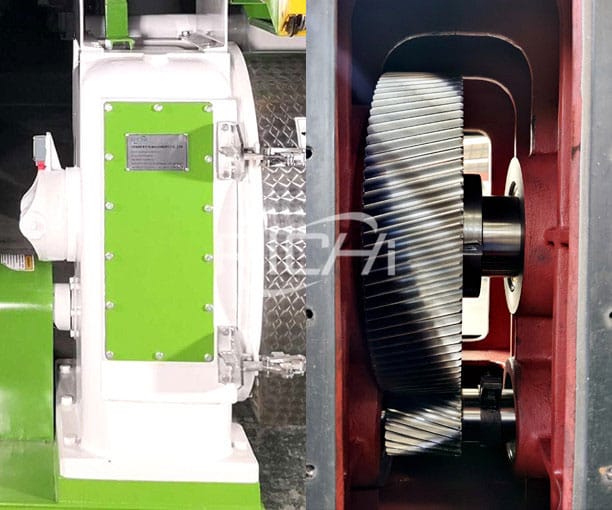

आयातित गियर बॉक्स, उच्च प्रसंस्करण सटीकता, उच्च संचरण दक्षता, कम ऊर्जा खपत।.

This model of feed pellet machine uses one-motor straight gear drive system,with the ideal gear ratio,drive torque, stable transmission, high output, low noise, easy operation and maintenance;

RICHI gearbox of feed pellet machine include the spindle, empty shaft, toothed shaft, 5 set SKF bearings, large gear, safety pin assembly. In addition, RICHI feed pellet machine is equipped with the door opening and power-off protection device, the cylinder cover , Coupling protection cover, Safety pin protection cover ,etc. RICHI will do our best to protect the safety of equipment and personnel.

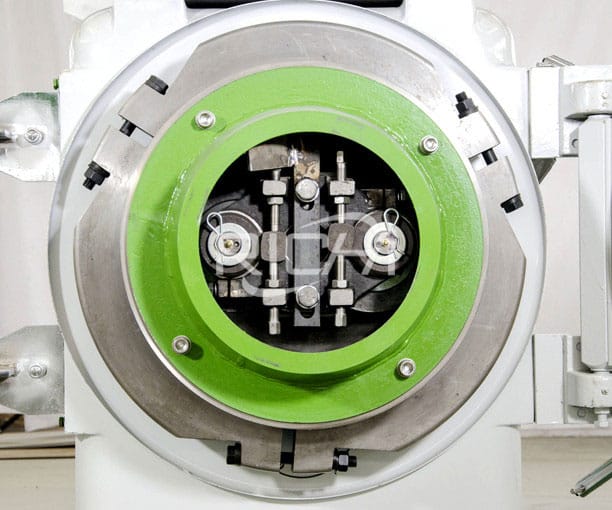

RICHI pelletizing chamber of feed pellet machine used for pelletizing feed pellet , RICHI optimized structure of the granulating chamber ensures the uniformity of the material and maximizes the working potential of the granulating machine.

The pelletizing chamber include the roller assembly, stainless steel ring die, cutter assembly, feed chute,Manuel feed inlet, etc.

रोलर असेंबली – Made of 40CrMnTi, the structure of the eccentric shaft can better adjust the distance between the ring die and press roller.

रिंग डाई – 304 stainless steel , corrosion resistance, Full automatic CNC ring die drilling machine and vacuum heat treatment technology.

कटर असेंबली can control the length of final pellet and the scraper can clean up the reduce of the empty shaft, avoid material deterioration and contamination of other materials.

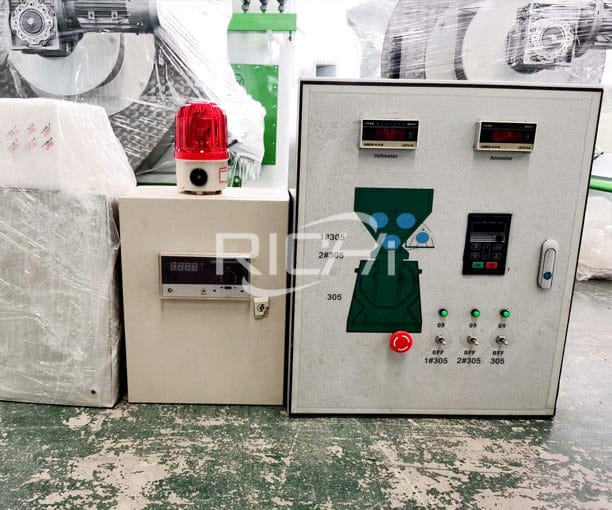

There is a separate electric control cabinet beside each RICHI feed pellet machine, this control cabinet can independently control the operation of the pellet machine and issue instruction. In case of emergency, the pellet machine can be shut down separately for maintenance without affecting the normal operation of other equipment.
