Wood Pellet Machine

Model
MZLH
Capacity
0.5-5T/H
Main motor power
37-280KW
Anti-caking Feeder Power
1.5-3KW
Forced Feeder Power
0.5-1KW
Pellet specification
6-12mm

Description

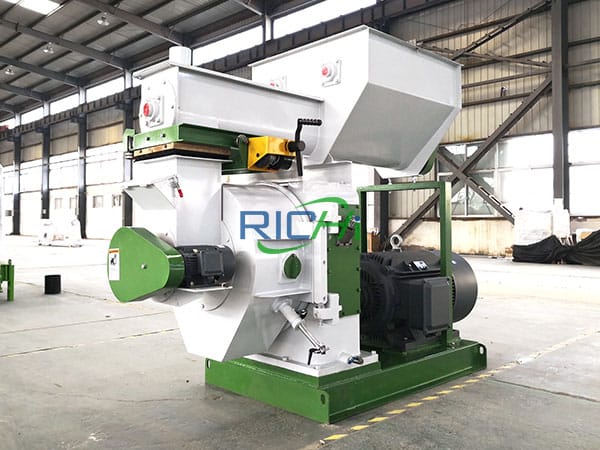

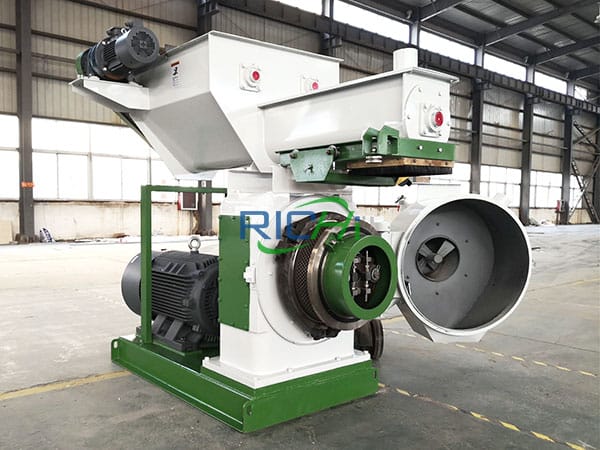

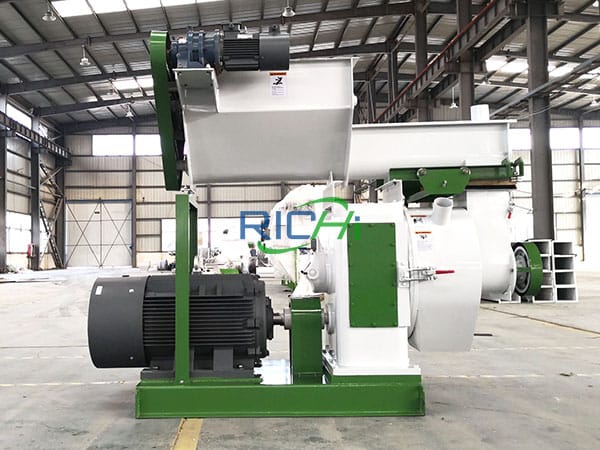

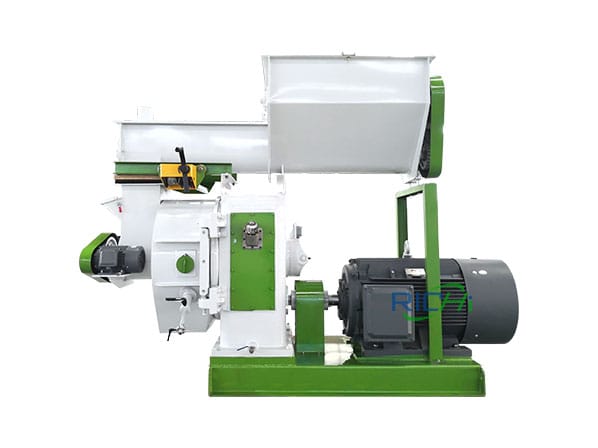

Professional MZLH Series Wood Pellet Making Machine

MZLH series wood pellet machine is high precision gear drive ring die pellet mill, this pellet machine has stainless steel conditioner, with frequency speed control, use Switzerland “SKF” high quality bearing, ensure high-efficiency, stable and low noise drive, can work alone with its electric cabinet. It can be used in various large, medium and small pellet plants. The raw materials can be wood, forest waste, agricultural waste, urban waste, etc.

  • Efficient
  • Stable
  • Low noise
  • High Yield
  • Low consumption
  • Mature Technology

RICHI Ring Die Wood Pellet Mill Detailed Instructions

  • For the pellet machine, the raw materials can be wood, agricultural waste, urban waste, grass and other biomass organic matter. .
  • If the raw material are powder, so it can be make into pellets directly.
  • If the raw material is particle size, first, we need crush them to powder less then 3-5mm powders.
  • And there also some requests for the raw material moisture, it is better if less than 20%.
  • f you want to make different size pellets(the size - generally we mean the diameter of the pellets), you just need to buy several different size ring die.
  • fored feeder
  • pelleting chamber
  • ring die and press roller
  • pellet machine motor

The machine can make all wood and biomass materials into pellets.

Application: After years of research and development, RICHI's MZLH series pellet machine is suitable for pelletizing various wood chips and biomass raw materials. In view of the particularity of this kind of raw materials, we have enhanced the forced feeding performance and increased the output of the pellet machine. For wood materials, it can reach 300 kg to 5 tons per hour; for grass materials, it can reach 600 kg to 10 tons per hour; for fiber materials such as palm shells, our equipment can also handle it freely.

  • raw materials-1
  • raw materials-2
  • wood pellets
  • biomass pellets
  1. A - After installation and adjust,we will training our customer's work how to operate;
  2. B - Training worker how to maintain and protect
  3. C - According features,we will make a complete maintain rules for you, contains how to maintain,when to maintain,who maintain)
  4. D - Our company after-sale department will call you at regular intervals,ask if maintain and give advice.

Features

Rugged MZLH Series Wood and Biomass Pellet Making Machine

  1. 1 - Durability stainless steel feeding chute
  2. 2 - Anti-arching and forced feeding device
  3. 3 - Electric motor: Germany SIEMENS
  4. 4 - Pellet machine bearing: Switzerland SKF
  5. 5 - We customize the conditioner for clients according to the raw materials.

Top quality of RICHI Wood and Biomass Pellet Mill

ring die of wood biomass pellet mill
Material thickness of main equipment is more than pellet machinery standard 2mm;
The weight is heavier than pellet machinery 20%.
Output higher 20%;
Feed rate of return increase by 3-5%.

Parameters

Model MZLH320 MZLH350 MZLH420 MZLH520 MZLH768 MZLH858
Anti-caking Feeder Power 1.5KW 1.5KW 1.5KW 2.2KW 3KW 3KW
Forced Feeder Power 0.55KW 0.55KW 0.55KW 0.75KW 1KW 1KW
Pellet Machine Power 37KW 55KW 90KW 132KW 250KW 280KW
Capacity(wood sawdust,biomass) 300-400KG/H 500-700KG/H 1.0-1.2T/H 2.0-2.5T/H 2.5-4T/H 3-4.5T/H
Capacity(grass,straw) 600-800KG/H 800-1000KG/H 1.5-2T/H 3-4T/H 5-7/H 8-10T/H
Capacity(organic fertilizer) 1-2T/H 3-4T/H 5-6T/H 7-8T/H 9-10T/H 10-12T/H
Final Pellet 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm
Weight(KG) 2500 3500 4000 4500 5000 5500
Dimension(mm) 2200*900*1300 2500*100*1600 2800*1150*1730 3000*1260*1860 3300*1500*2000 3500*1600*2180
Price Contact RICHI to Get Details and Latest Price
